Tire Monitoring System
Tire Pressure Monitoring System: NAS V8 SC

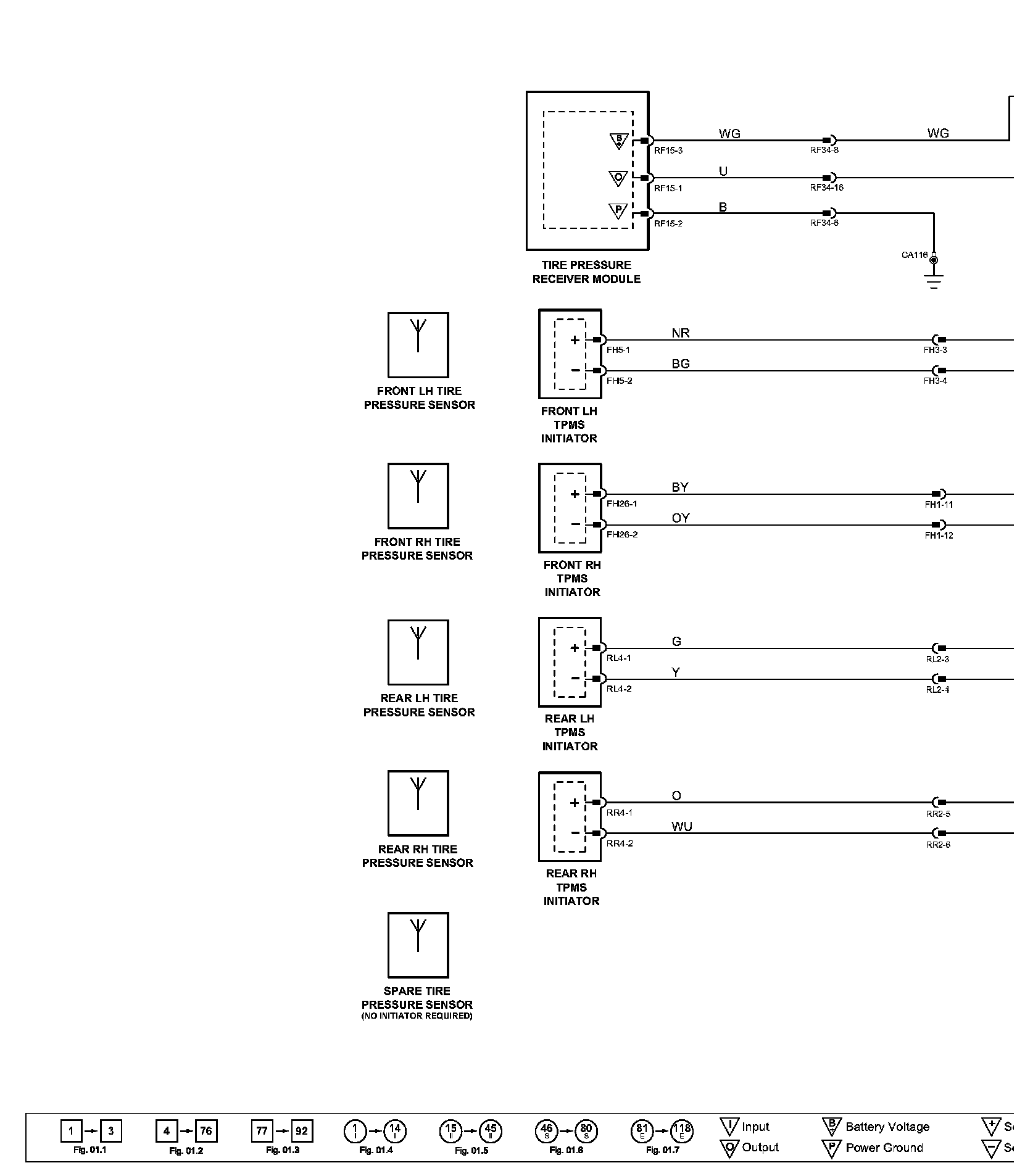

4 oDiagram Figure 05.5:

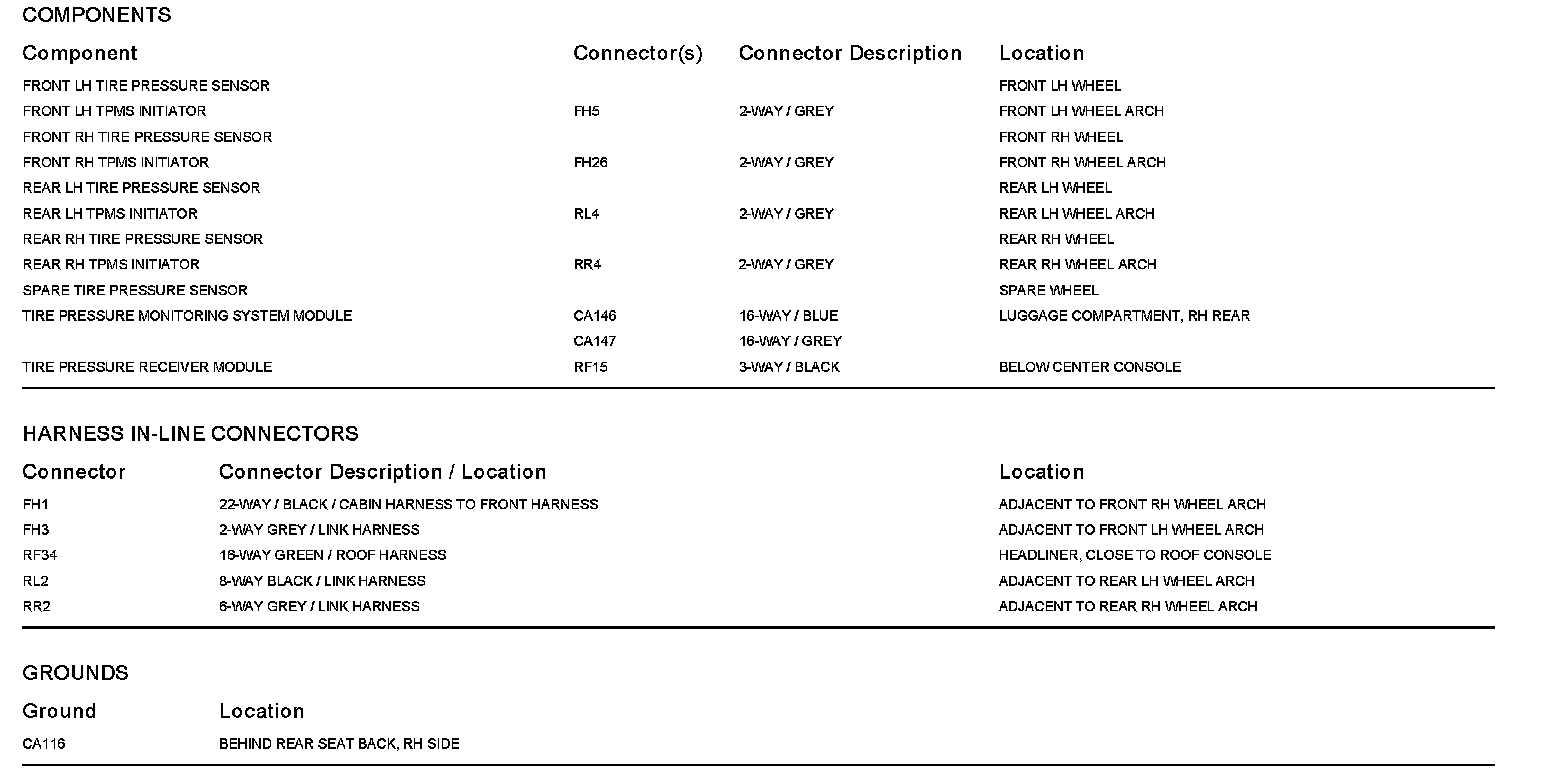

Diagram Data Sheet 05.5 (Part 1):

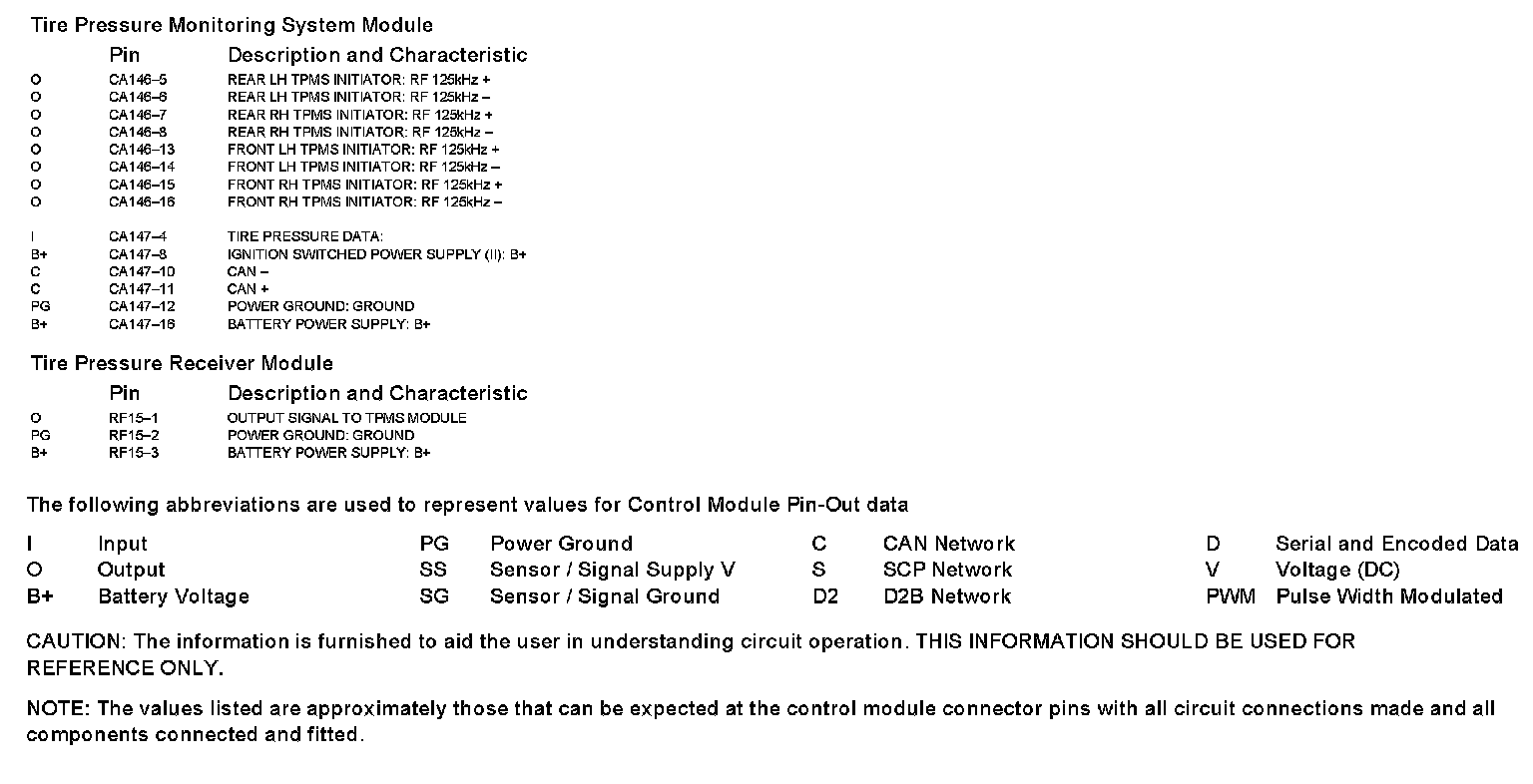

Diagram Data Sheet 05.5 (Part 2):
Diagrams: Other diagrams referred to by Fig. number (i.e. 01.1, 20.4, etc) within these diagrams can be found at the vehicle level under Diagrams by Figure Number. Diagram By Figure Number
Locations: The location views for Ground Points, In-Line Harnesses, and Control Modules depicted within these diagrams can be found at Vehicle/Locations. Locations
Connector Views: The connector views/pin-outs for the Control Modules depicted within these diagrams can be found at the vehicle level connector views. Connector Views
