Ambient Temperature Sensor / Switch HVAC: Service and Repair

Ambient Air Temperature Sensor (82.20.02)

Removal
1. Remove the radiator splash shield.
2. Remove the radiator lower cowl.







3. Disconnect the ambient air temperature electrical connector

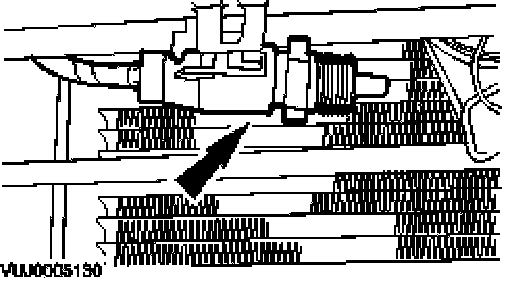

4. Remove the ambient air temperature sensor.







Installation
1. To install, reverse the removal procedure.
