Cabin Temperature Sensor / Switch: Service and Repair

In-Vehicle Temperature Sensor (82.20.03)

Installation
1. To install, reverse the removal procedure.
- Tighten to 3 Nm.

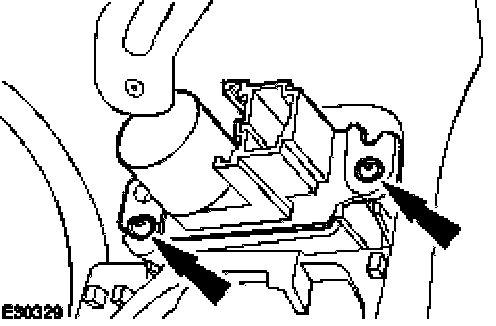

CAUTION: Make sure the in-vehicle temperature sensor is correctly installed to the instrument panel locating tang before installing the retaining screws.
