Parking Brake Warning Switch: Service and Repair

Parking Brake Switch (70.35.46)
Removal
Vehicles with manual transmission

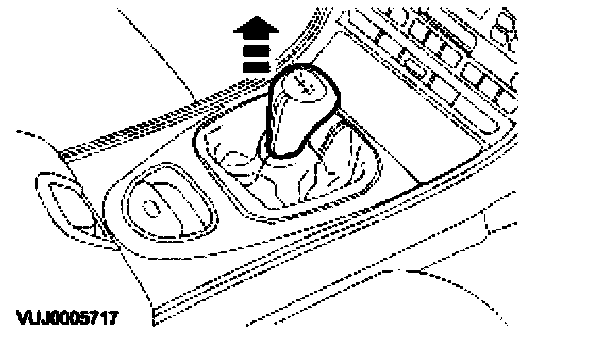

1. Remove the gearshift lever.

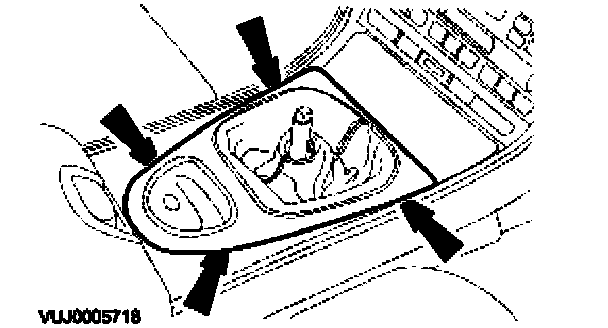

2. Remove the gearshift lever trim cover.

Vehicles with automatic transmission

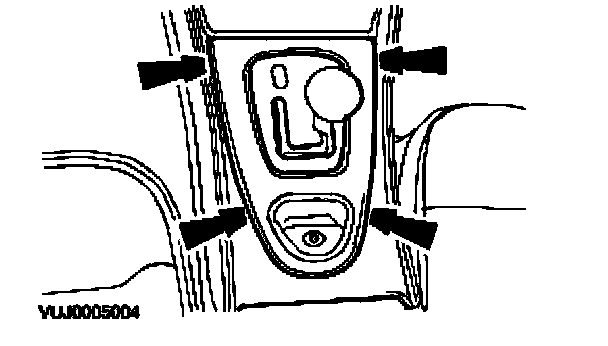

1. Remove the "J" gate surround.

All vehicles

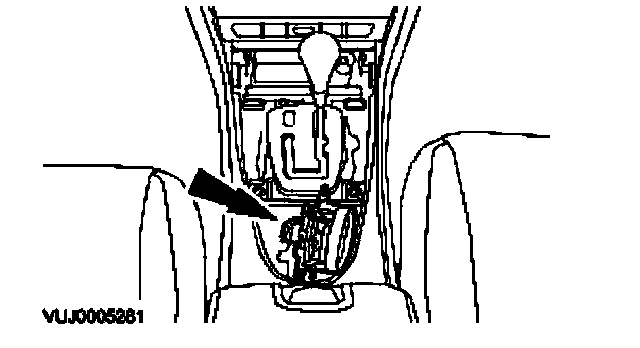

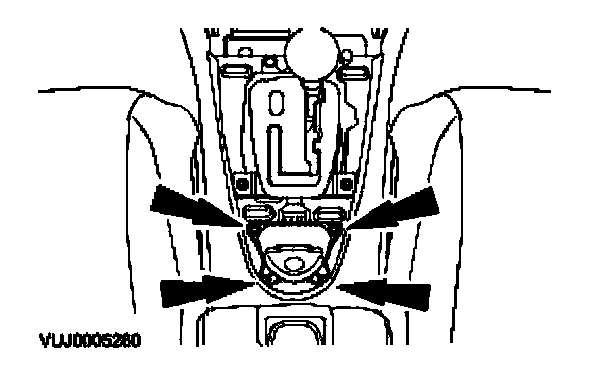

1. Remove the parking brake switch retaining screws.





2. Remove the parking brake switch.

Installation
1. To install, reverse the removal procedure.
