Fuel/Body - Fuel Filler Door Inoperative
S-TYPES310-06
DATE: 09/05
MODEL:
2005 MY
S-TYPE
VIN:
N13089-N41136
Fuel Filler Door Inoperative - Actuator Binding - Modification Procedure
Issue:
On 2005 S-TYPE vehicles within the above VIN range, when a fault has been confirmed with the fuel filler door actuator, a modification must be carried out on the new actuator before installation on vehicles within the above VIN range.
Cause:
Fuel filler door actuator being stressed when installed in housing.
Action:
Before installing, modify the new fuel filler door actuator as follows.

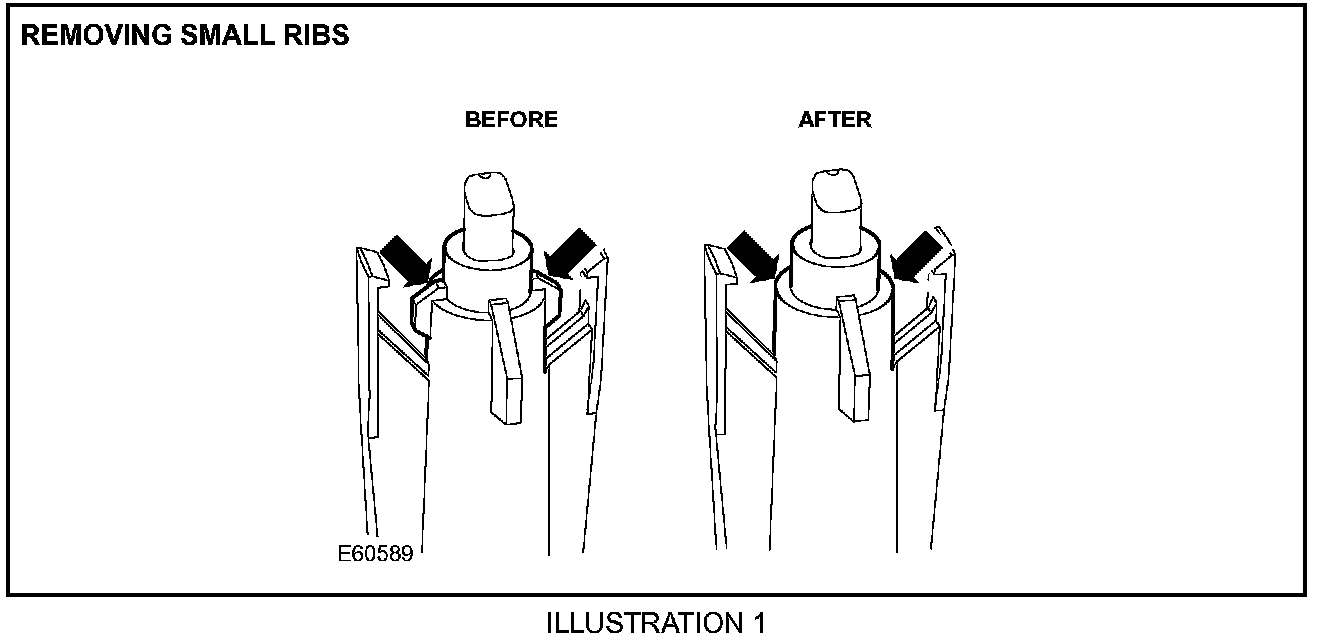

1. Using a suitable craft knife, remove the two small ribs from the fuel filler door actuator (Illustration 1).

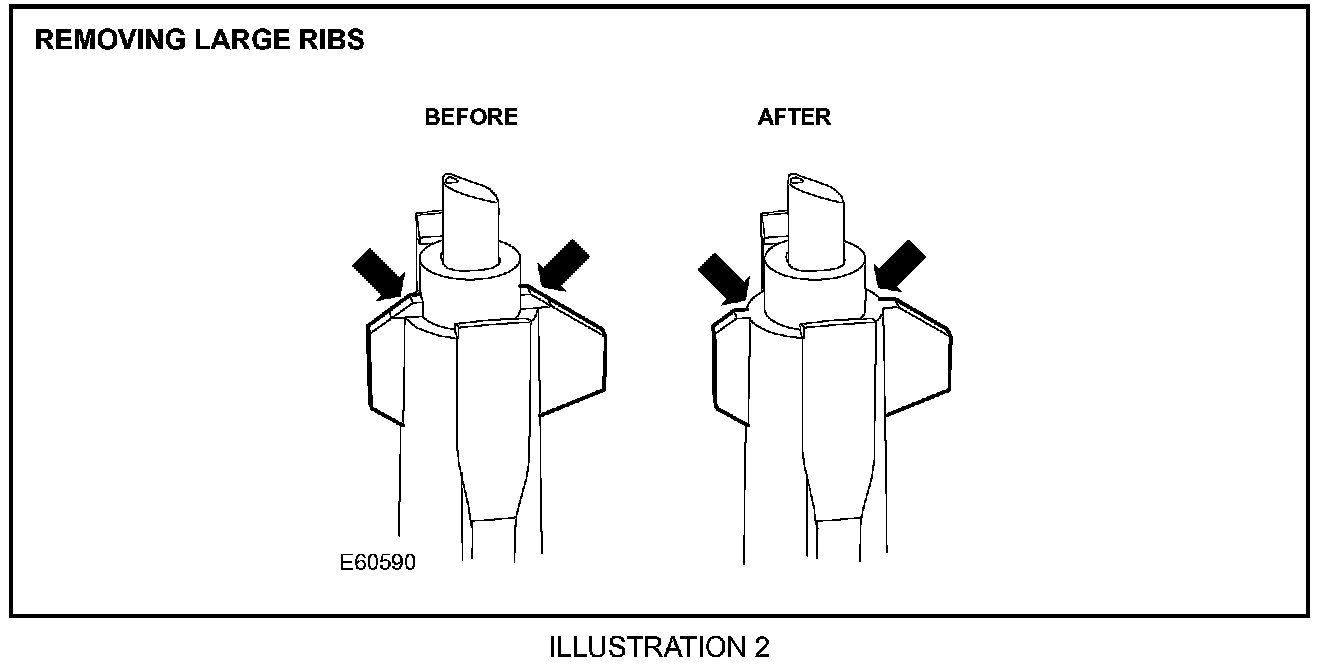

2. Using a suitable craft knife, trim the highlighted sections from the two large ribs on the fuel filler door actuator (Illustration 2).
Global Technical Reference (GTR) Workshop Manual Information:
Internet access: http://www.jaguartechinfo.com
Parts Information
Warranty Information

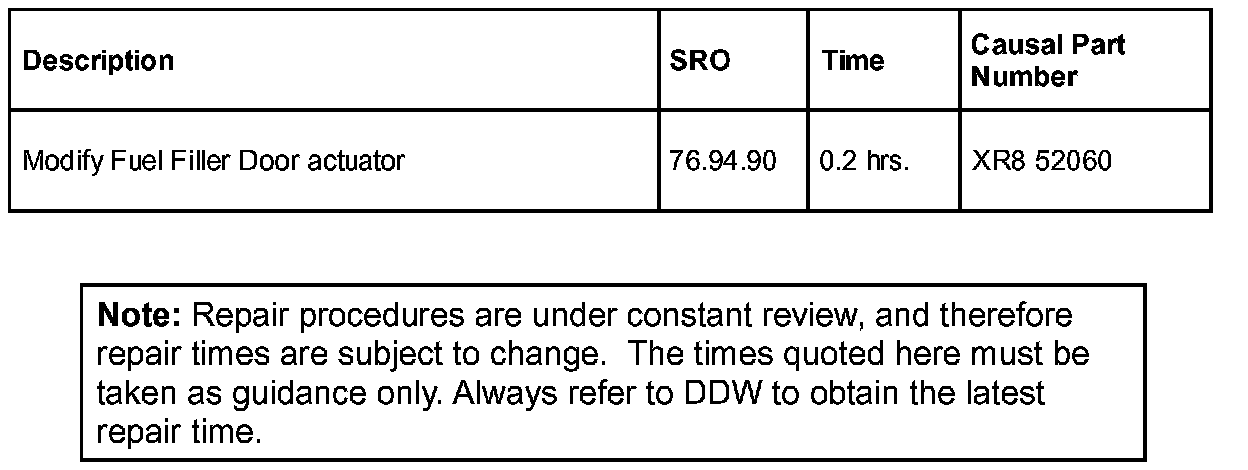

Warranty claims should be submitted quoting the information found in the table shown. This will result in payment of the stated time and, where applicable parts/miscellaneous expense codes as shown.
