Recall - Spare Tire Speed Restriction Label: Overview
S204-S516S-TYPE
DATE
11/04
MODEL
2005 MY
S-TYPE
VIN
Refer to VIN list
Spare Tire Speed Restriction Label -
Lack of Adhesion -
Service Action S516
Issue:
A concern has been identified on a number of 2005 MY S-TYPE vehicles that are listed in this bulletin. On vehicles supplied with space saver spare wheels, poor adhesion of the speed restriction label could result in the label coming loose from the space saver spare wheel.
Jaguar Cars will contact owners of the 2005 MY S-TYPE vehicles, listed in this bulletin, to replace the spare tire label.
A number of vehicles have been repaired at the Port of Entry facility. This Service Action affects vehicles that are outside of the control of the Port of Entry facilities and any sold vehicles that have not yet been repaired.
Action:
Check the VIN list and DDW to determine validity of the vehicle against the Service Action to ensure that the spare tire label has not already been replaced at the port, prior to carrying out any repair. DDW will be updated to reflect those vehicles affected by this Service Action.
At the time of confirming a booking for vehicle repair, please ensure that any outstanding Field Service Actions are identified to ensure the correct parts are available and adequate workshop time is allocated for repairs to be completed at one visit.
WORKSHOP PROCEDURE
1. Open the luggage compartment and install exterior vehicle protection.
2. Reposition the luggage compartment carpet.
3. Remove the tool foam inlay.
Note:
On some vehicle variants it is not necessary to remove the wheel to gain access to the front face of the space saver spare wheel.
4. Remove the tee bolt securing the space saver spare wheel.
5. Remove the space saver spare wheel and place aside.
6. Remove the old speed restriction label from space saver spare wheel.
7. Clean the area of space saver spare wheel before installing the new label.

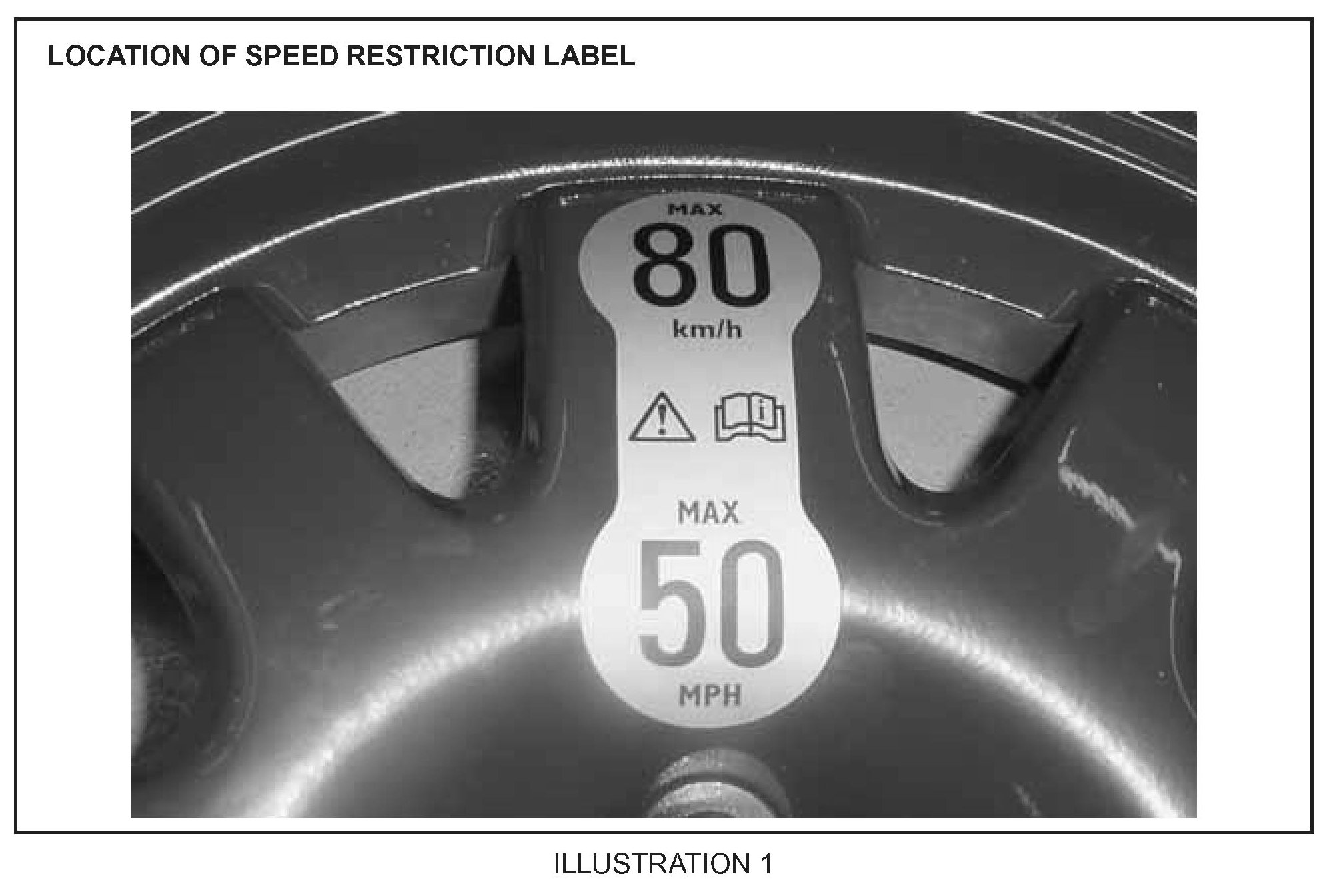

8. Install the new speed restriction label on the front face of the wheel (Illustration 1).
9. Place the space saver spare wheel in the well.
10. Install and tighten the space saver spare wheel securing bolt.
11. Insert the tool foam inlay.
12. Reposition the luggage compartment floor carpet to the original position.
13. Remove the exterior vehicle protection and close the luggage compartment.
Parts Information:
Warranty Information:
Warranty claims should be submitted quoting program code S516 together with the appropriate option code from the table. This will result in payment of the stated time and, where applicable, parts/miscellaneous expense codes.
The options that allow for drive in/drive out can only be claimed if the vehicle has been brought in to the workshop for this action alone to be undertaken.
Service Action S516
NOTE:
Always perform a DDW claim search first to determine whether this service action has been performed on this vehicle. The "Review Claim History" function will provide a listing of all claims against the vehicle. If this service action number appears in the program code field, do not perform this service action.

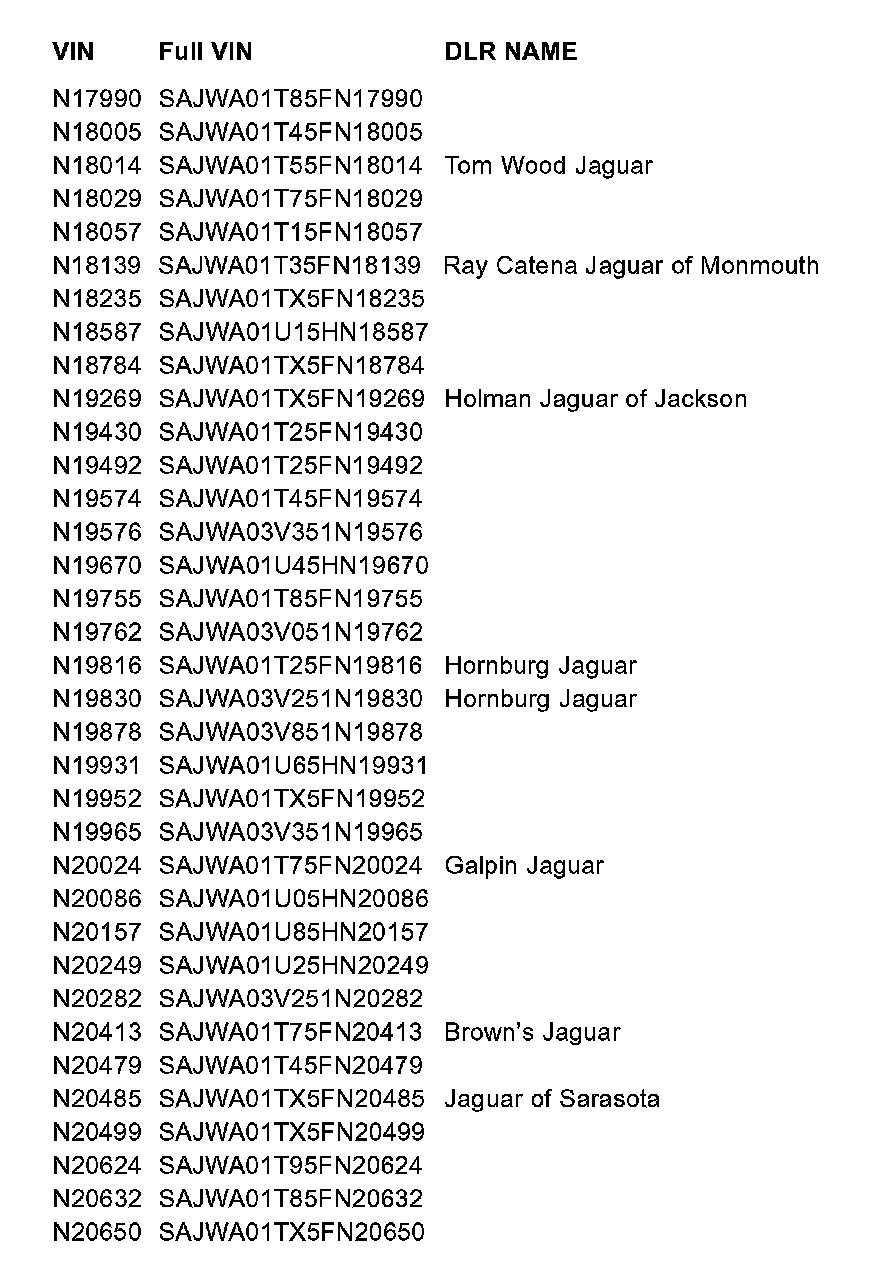

VEHICLES AFFECTED BY THIS SERVICE ACTION
