Flywheel: Service and Repair

Flywheel (12-53-07)

Removal
1. Remove the clutch disc and pressure plate.





2. Detach the accessory drive belt.
^ Rotate the belt tensioner counter-clockwise.
- Use a 3/8 inch square drive bar to rotate the belt tensioner.

^ Detach the accessory drive belt.





3. Install the special tool.

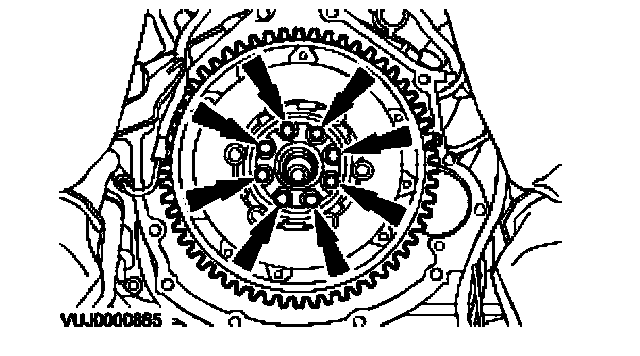

4. NOTE: Prevent the flywheel from rotating.

Remove the flywheel.

Installation





1. NOTE: Make sure the crankshaft and flywheel mating faces are clean before installation.

NOTE: The flywheel will only locate in one position.

NOTE: Tighten the retaining bolts working diagonally.

Install the flywheel.
^ Prevent the flywheel from rotating.





2. Remove the special tool.





3. Attach the accessory drive belt.
^ Rotate the belt tensioner counter-clockwise.
- Use a 3/8 inch square drive bar to rotate the belt tensioner.

^ Attach the accessory drive belt.

4. Install the clutch disc and pressure plate.
