Headlamp Washer Spray Nozzle: Service and Repair

Headlamp Washer Jet

Removal







1. Remove the headlamp assembly.

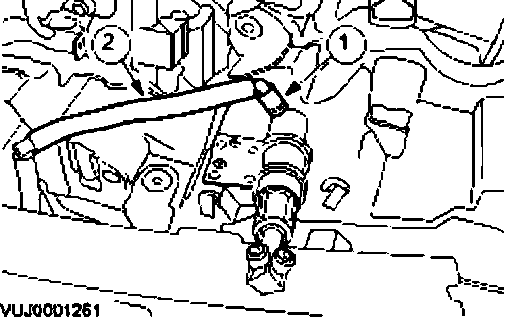

2. Disconnect the headlamp washer jet supply hose.
- Remove the headlamp washer jet supply hose retaining clip.
- Disconnect the headlamp washer jet supply hose.

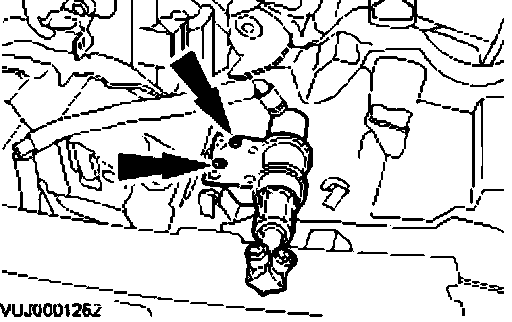

3. Remove the headlamp washer jet.




Installation
1. To install, reverse the removal procedure.
