Windshield Washer Pump: Service and Repair

Windshield Washer

Pump Removal







1. Remove the radiator splash shield.
2. Disconnect the windshield washer pump supply hose.







3. Disconnect the windshield washer pump electrical connector.

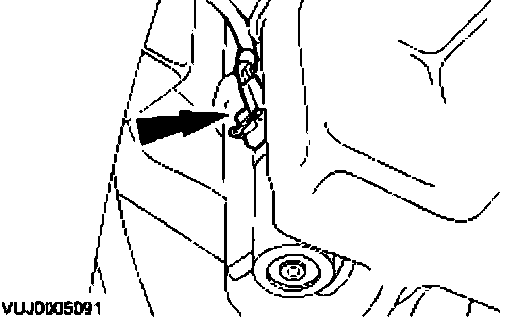

4. Remove the windshield washer pump.



Installation
1. To install, reverse the removal procedure.
