Wiper Motor Linkage: Service and Repair

Wiper Mounting Arm and Pivot Shaft

Removal







All vehicles
1. Disconnect the battery.
2. Remove the cowl panel grille.
3. Remove the drain tube.

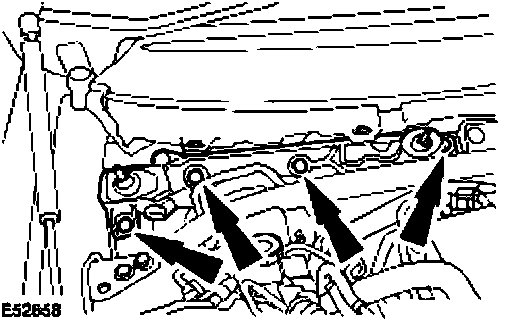

4. Detach the mounting arm, wiper motor and pivot shaft assembly.

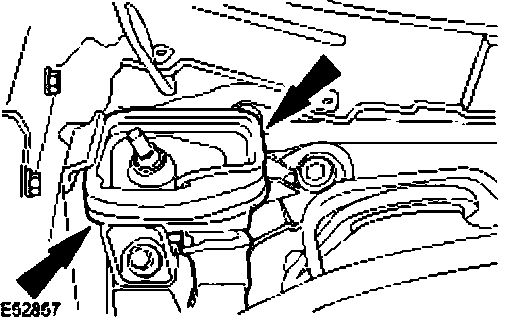

5. Remove the mounting arm, wiper motor and pivot shaft assembly.

- Disconnect the wiper motor electrical connector.


Installation







1. To install, reverse the removal procedure.
- Tighten to 12 Nm.
