S-Type (X200) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagram By Figure Number
>>
Fig 03.5 (Engine Management: Part 1)
Fig 03.5 (Engine Management: Part 1)

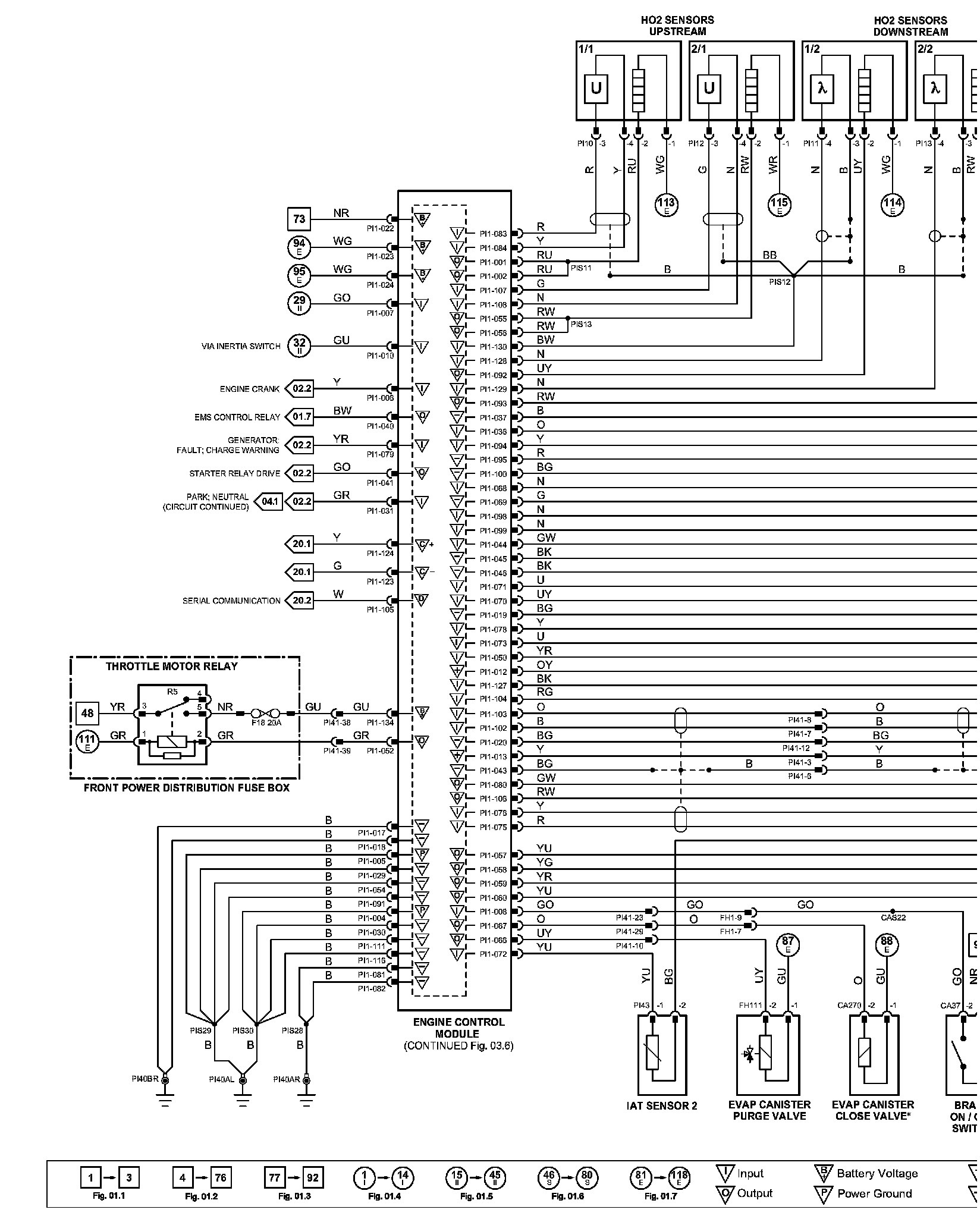

������Diagram Figure 03.5:

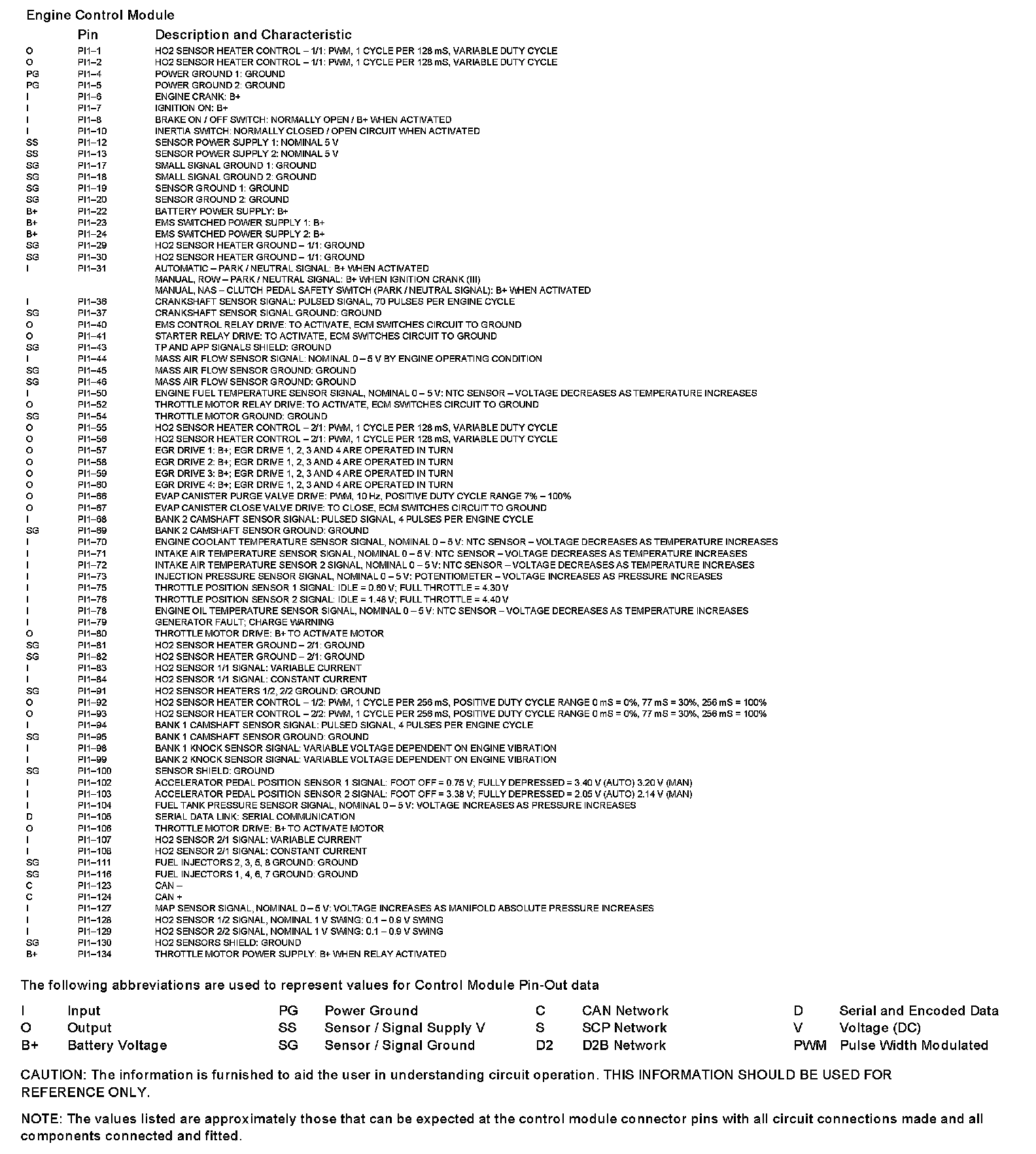

Diagram Data Sheet 03.5 (Part 1):
Diagram Data Sheet 03.5 (Part 2):
