Jaguar
>>
2005
>>
S-Type (X200) V8-4.2L SC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Diagram By Figure Number
>>
Fig 04.1 (Transmission (Automatic))
Fig 04.1 (Transmission (Automatic))
)�{Diagram Figure 04.1:

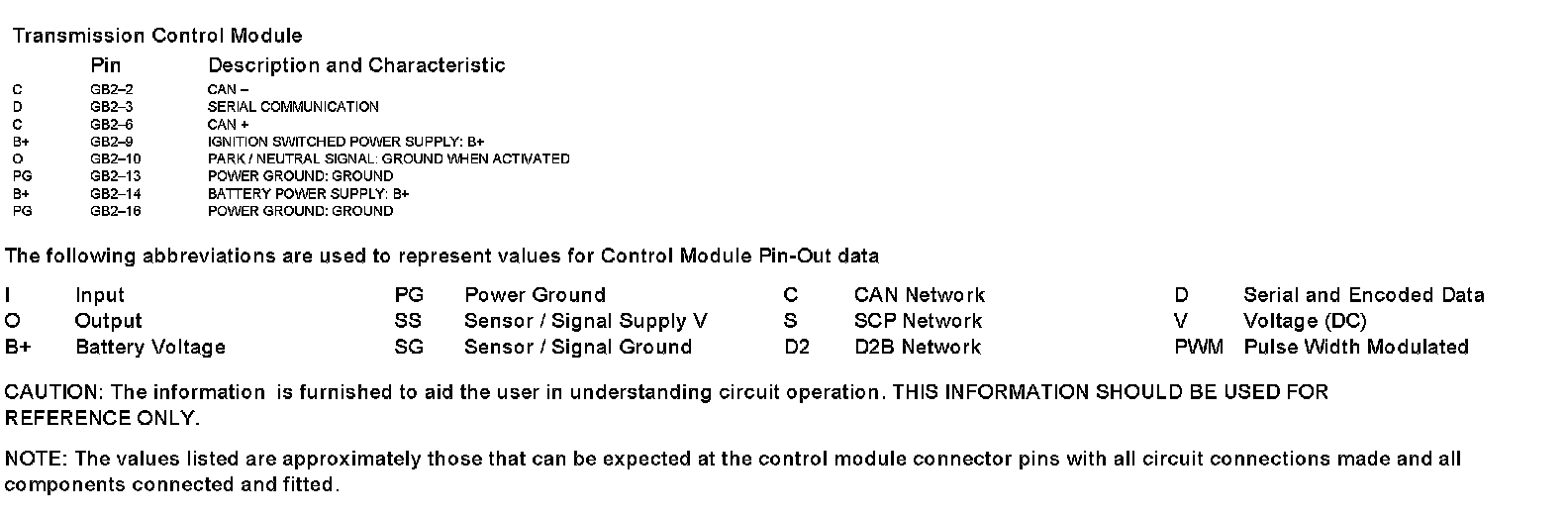

Diagram Data Sheet 04.1 (Part 1):

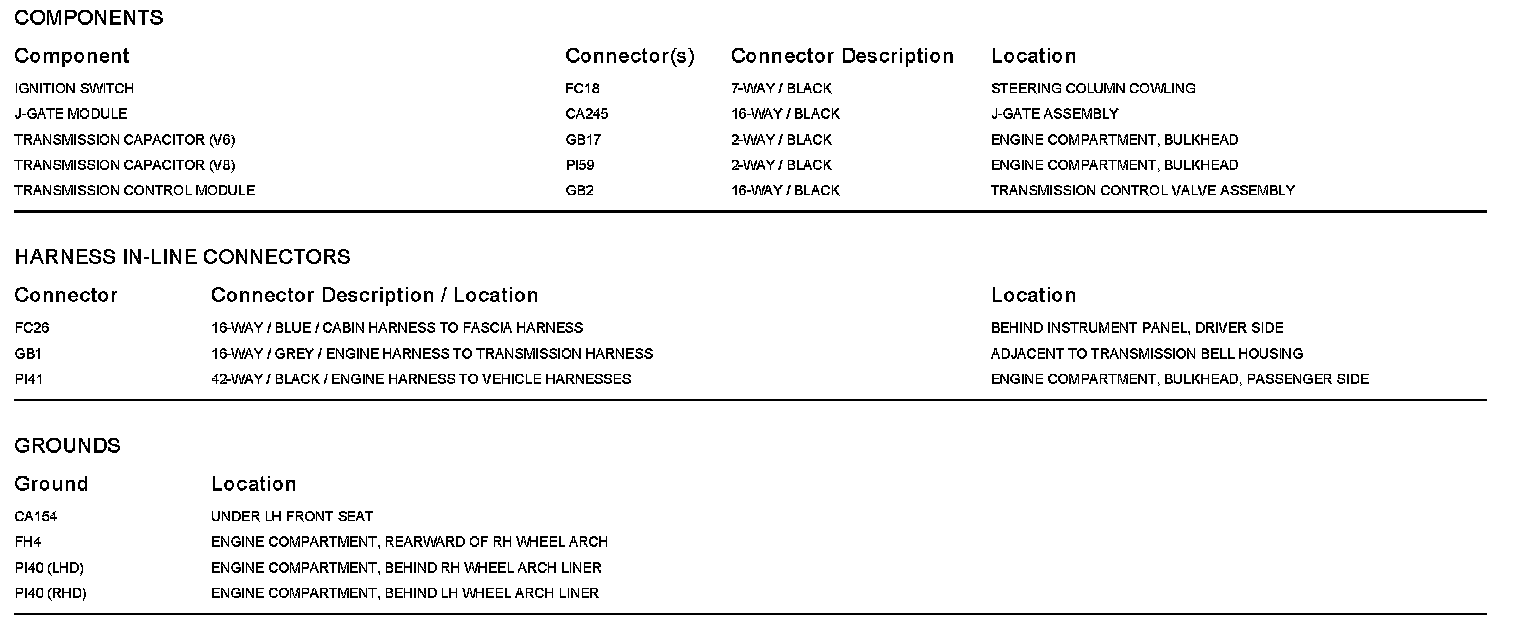

Diagram Data Sheet 04.1 (Part 2):
