Fig 11.5 (Passenger Seat: 16-Way Movement)
Fig 11.5 (Passenger Seat: 16-Way Movement)

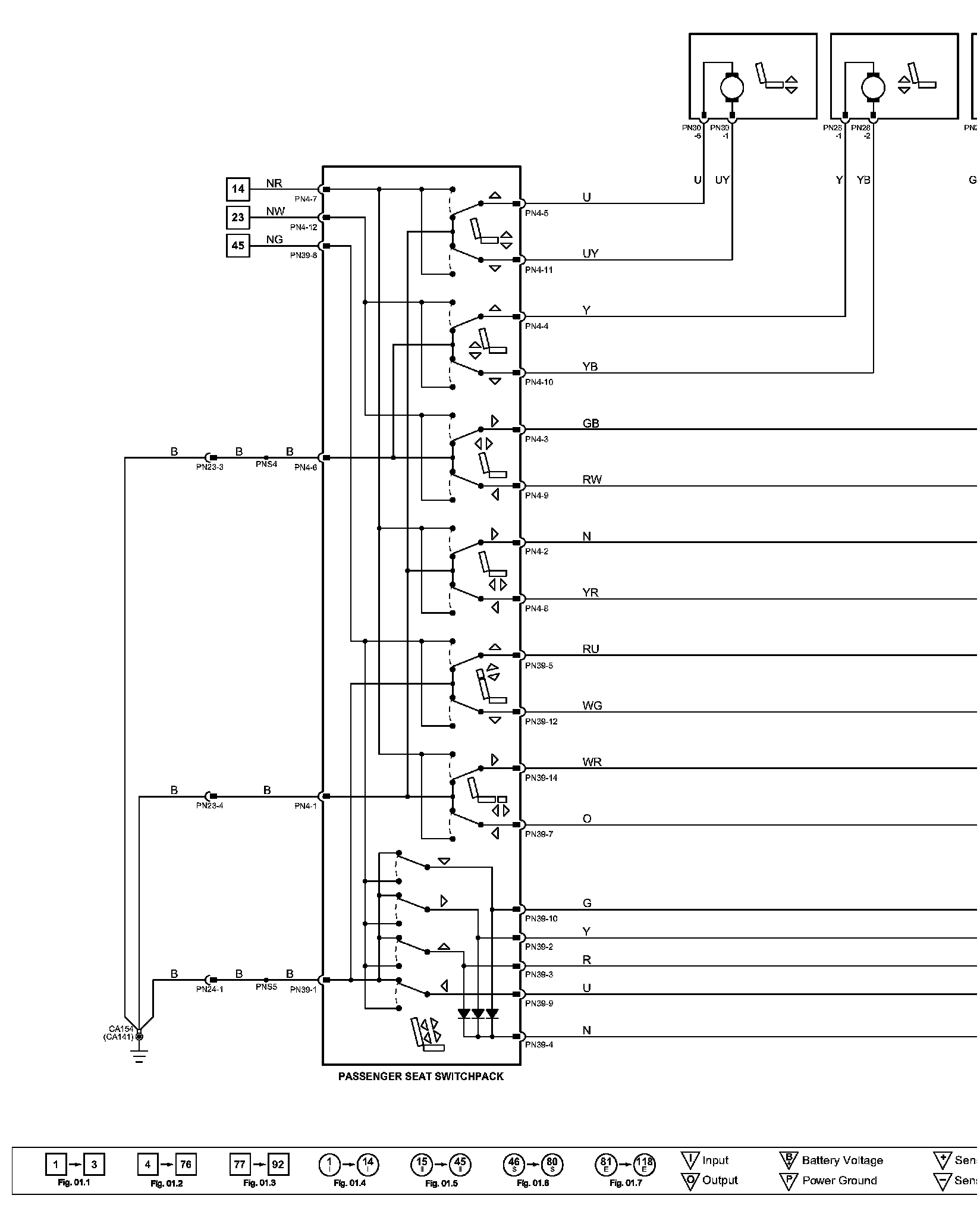

�°9#Diagram Figure 11.5:

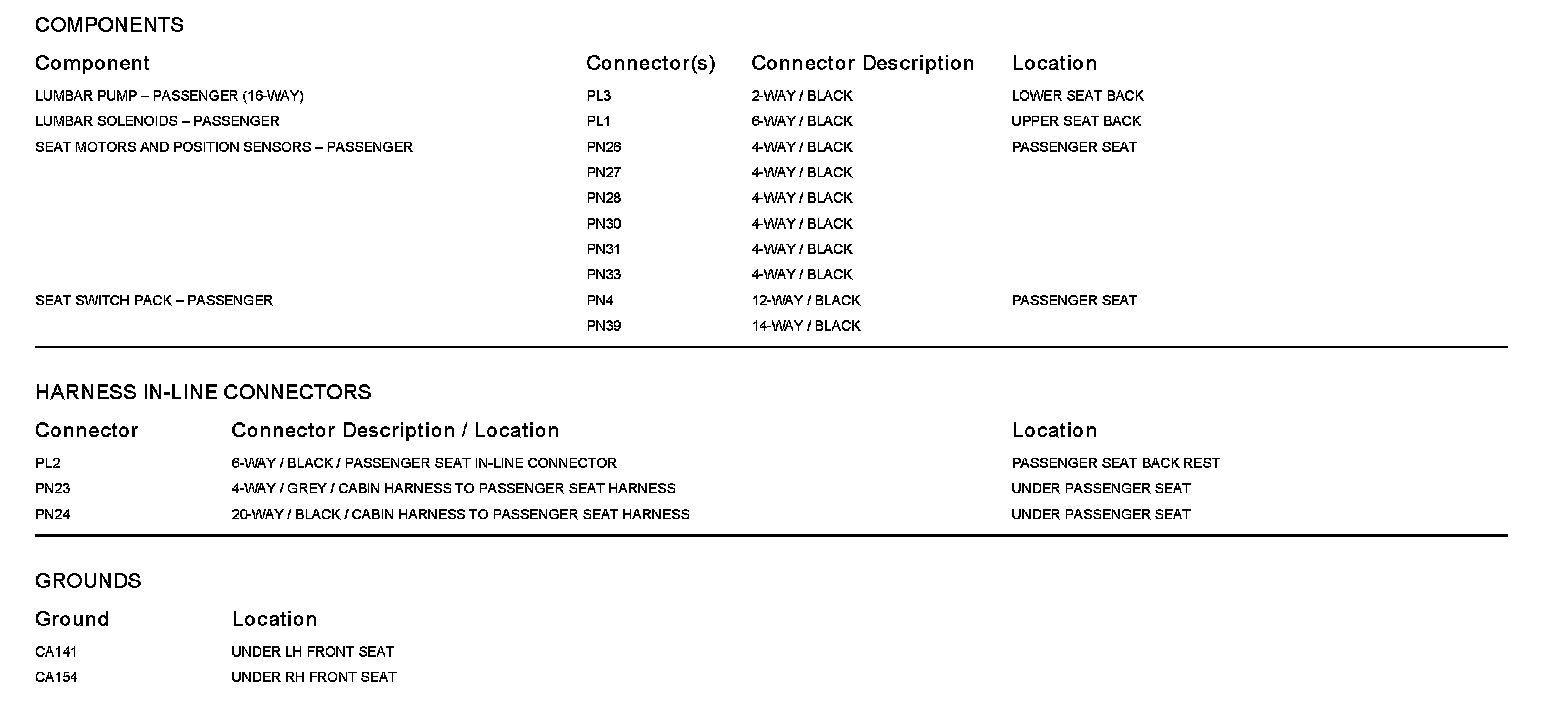

Diagram Data Sheet 11.5:
