Fig 05.3 (Adaptive Speed Control)

?��#Diagram Figure 05.3:

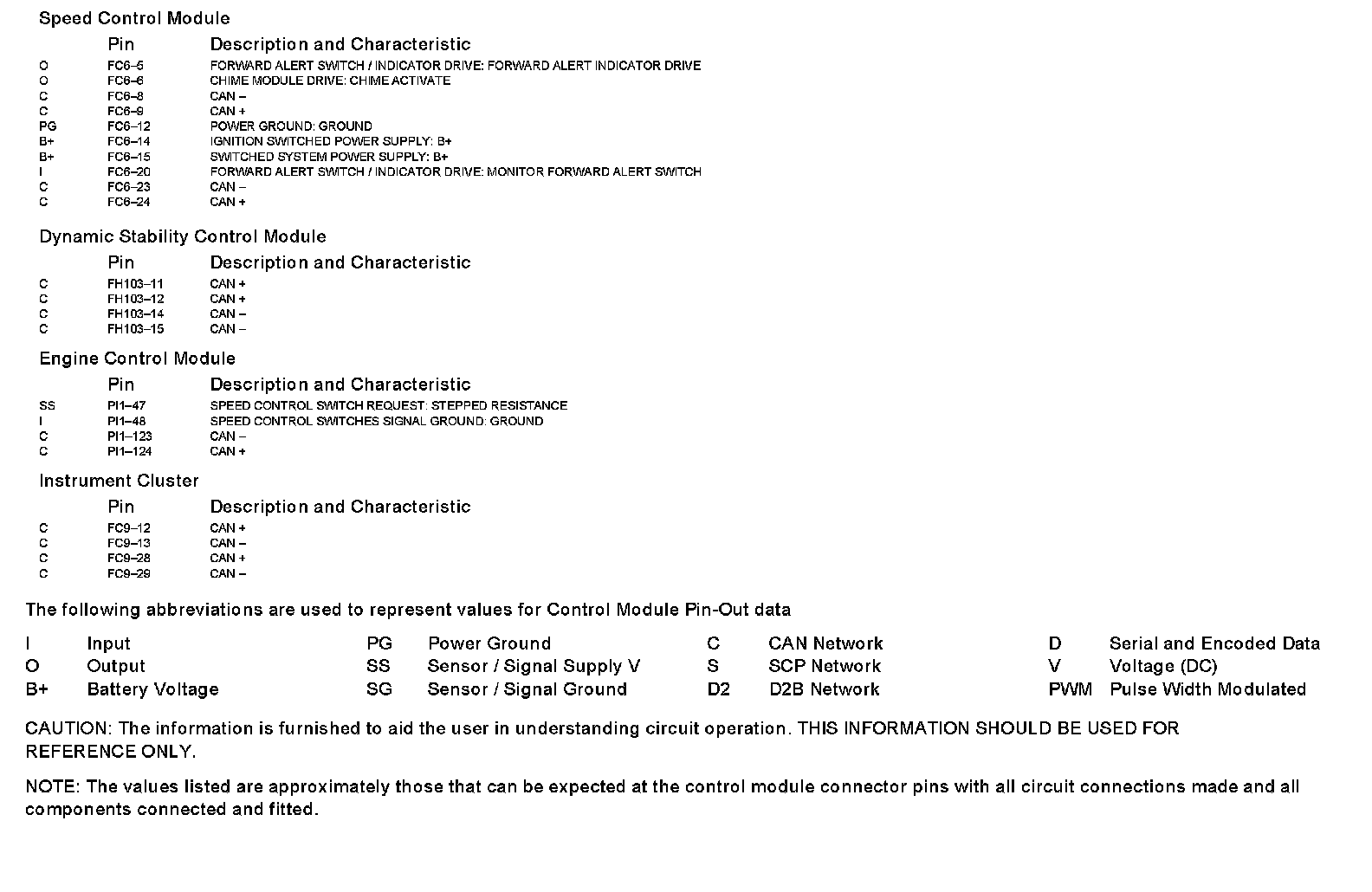

Diagram Data Sheet 05.3 (Part 1):



Diagram Data Sheet 05.3 (Part 2):
