Fig 09.2 (Dimmer - Controlled Lighting)
Fig 09.2 (Dimmer - Controlled Lighting)

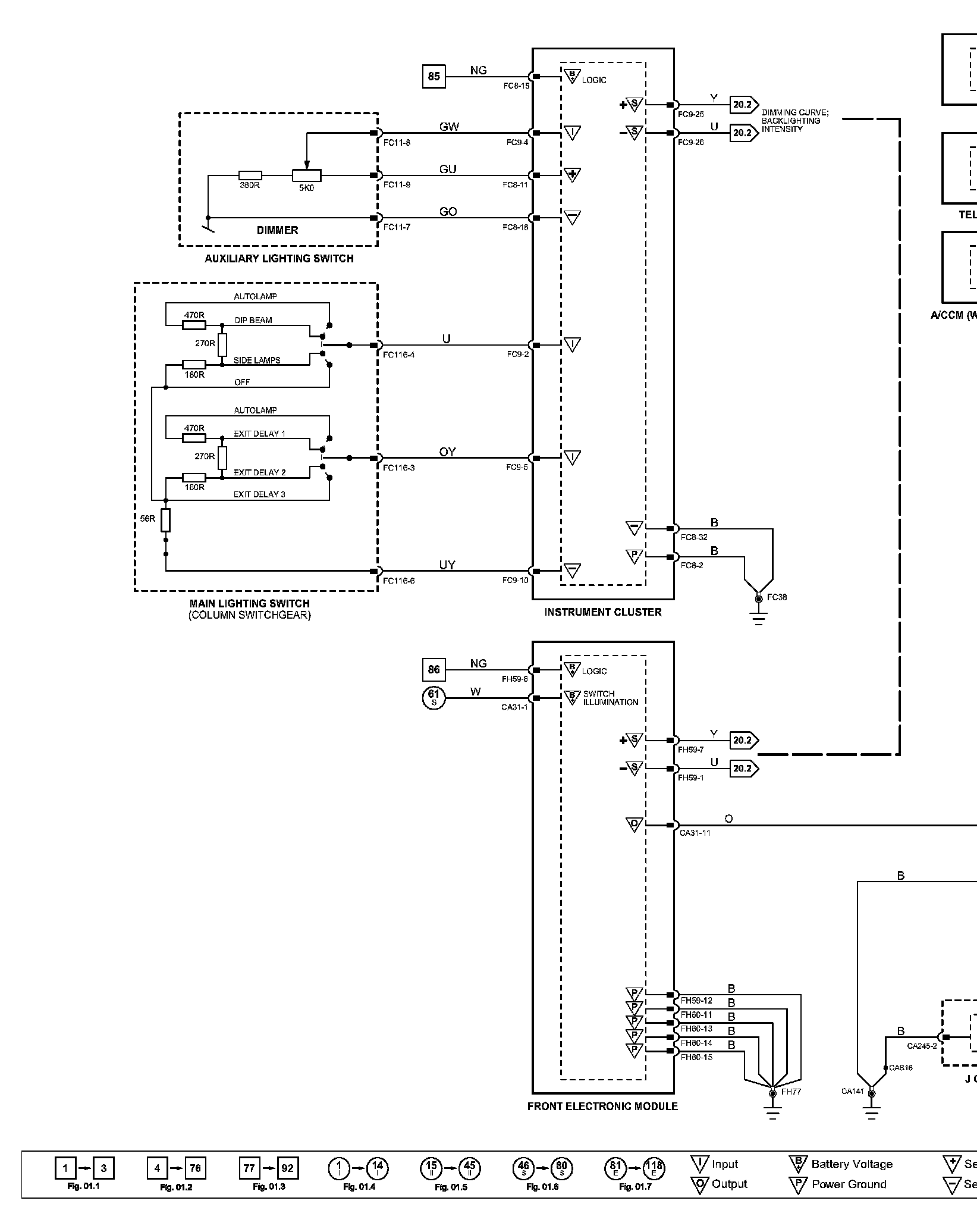

��%Diagram Figure 09.2:

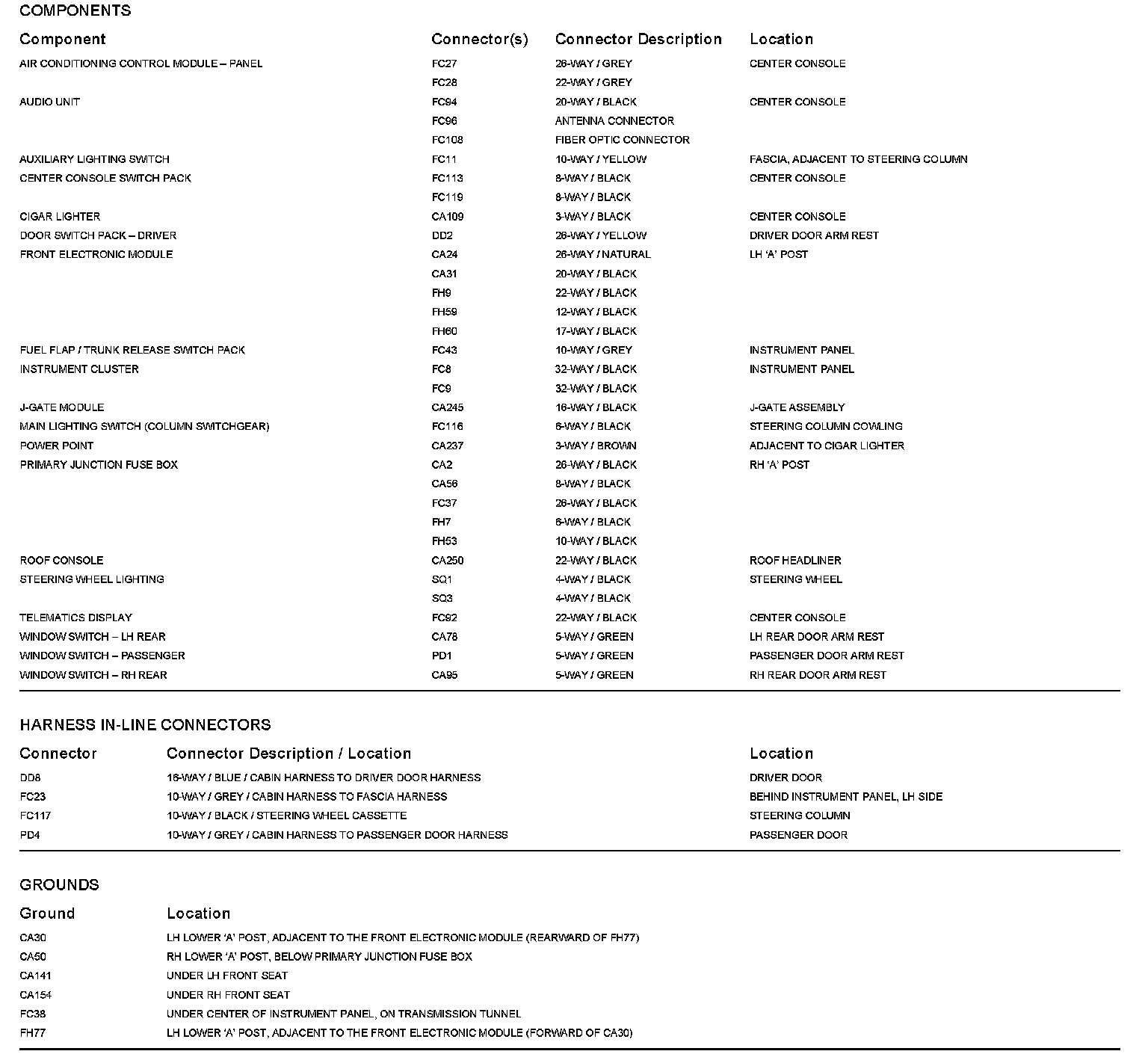

Diagram Data Sheet 09.2 (Part 1):

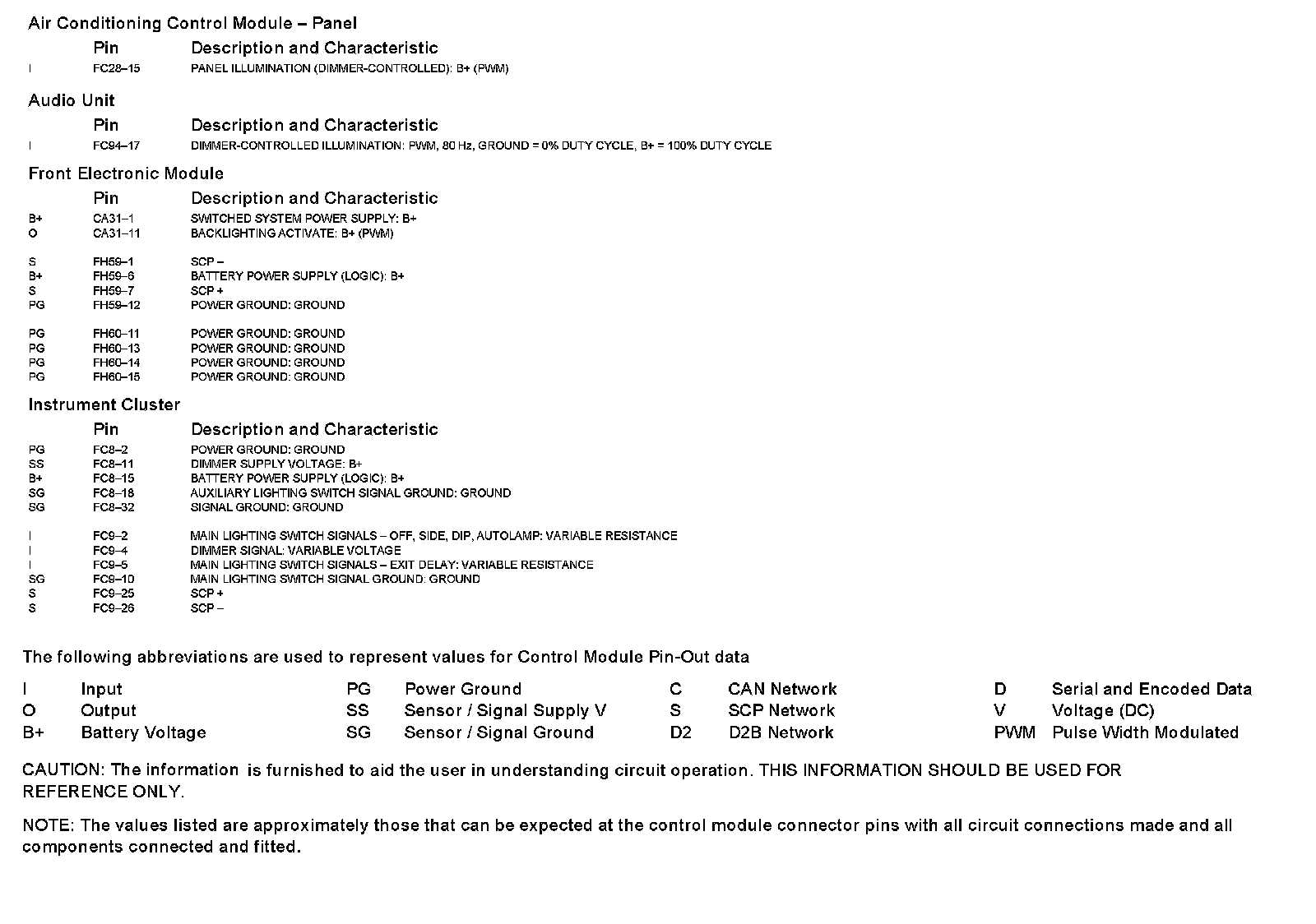

Diagram Data Sheet 09.2 (Part 2):
