Cellular Phone: Service and Repair

Handset Holder

Removal

All vehicles
1. Remove the floor console.

NOTE: US models only have an additional antenna connector.

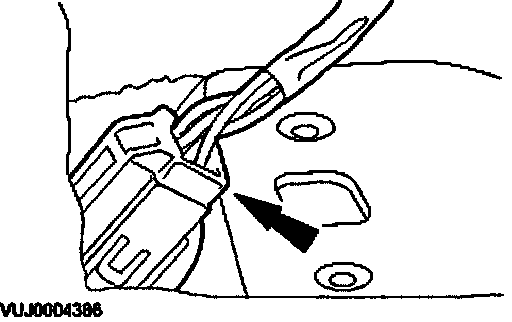

2. Disconnect the cellular phone electrical connector.







Vehicles With Cordless Cellular Phone

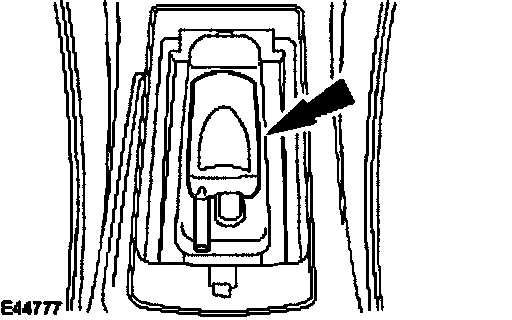

1. Remove the cellular phone.







2. Remove the handset holder.

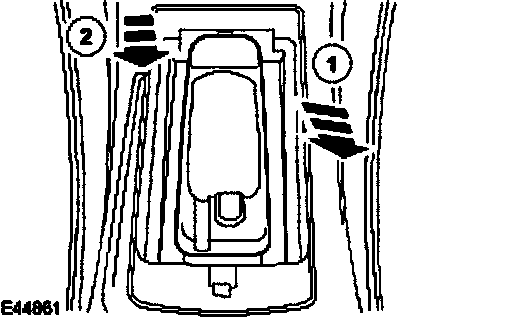

- Detach the handset holder.

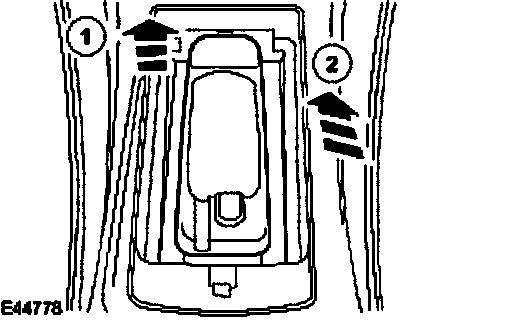

- Remove the handset holder.

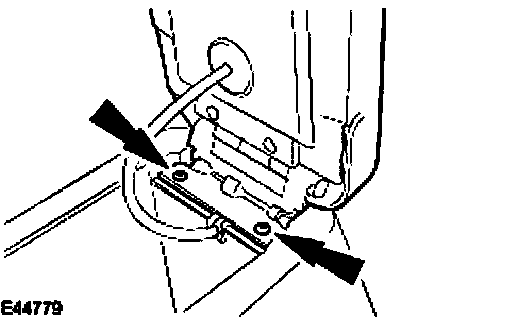

3. Remove the armrest.







Vehicles With Corded Cellular Phone
1. Remove the armrest.

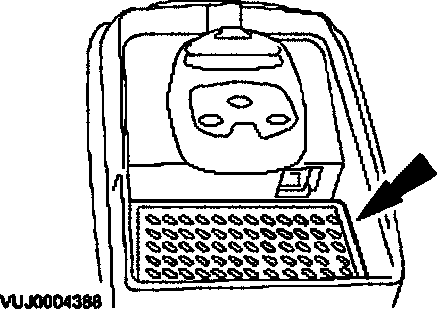

2. Remove the non slip mat.

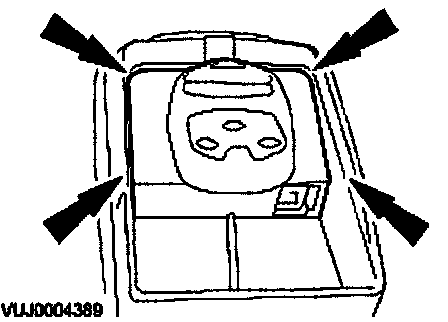

3. Remove the handset hang up cup.







Installation

Vehicles With Corded Cellular Phone
1. Install the handset hang up cup.

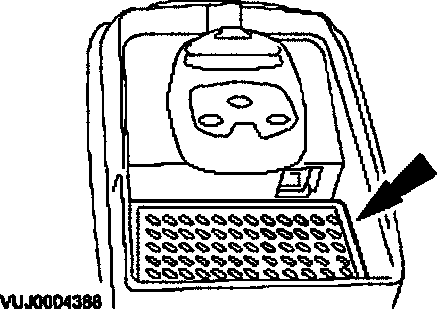

2. Install the non slip mat.







3. Install the armrest.







Vehicles With Cordless Cellular Phone
1. Install the armrest.







2. Attach the handset holder.
- Install the handset holder.
- Attach the handset holder.







3. Install the cellular phone.







All Vehicles

NOTE: US models only have an additional antenna connector.

1. Connect the cellular phone electrical connector.







2. Install the floor console.
