Body Control Systems: Description and Operation

Module Controlled Functions

Module Controlled Functions:

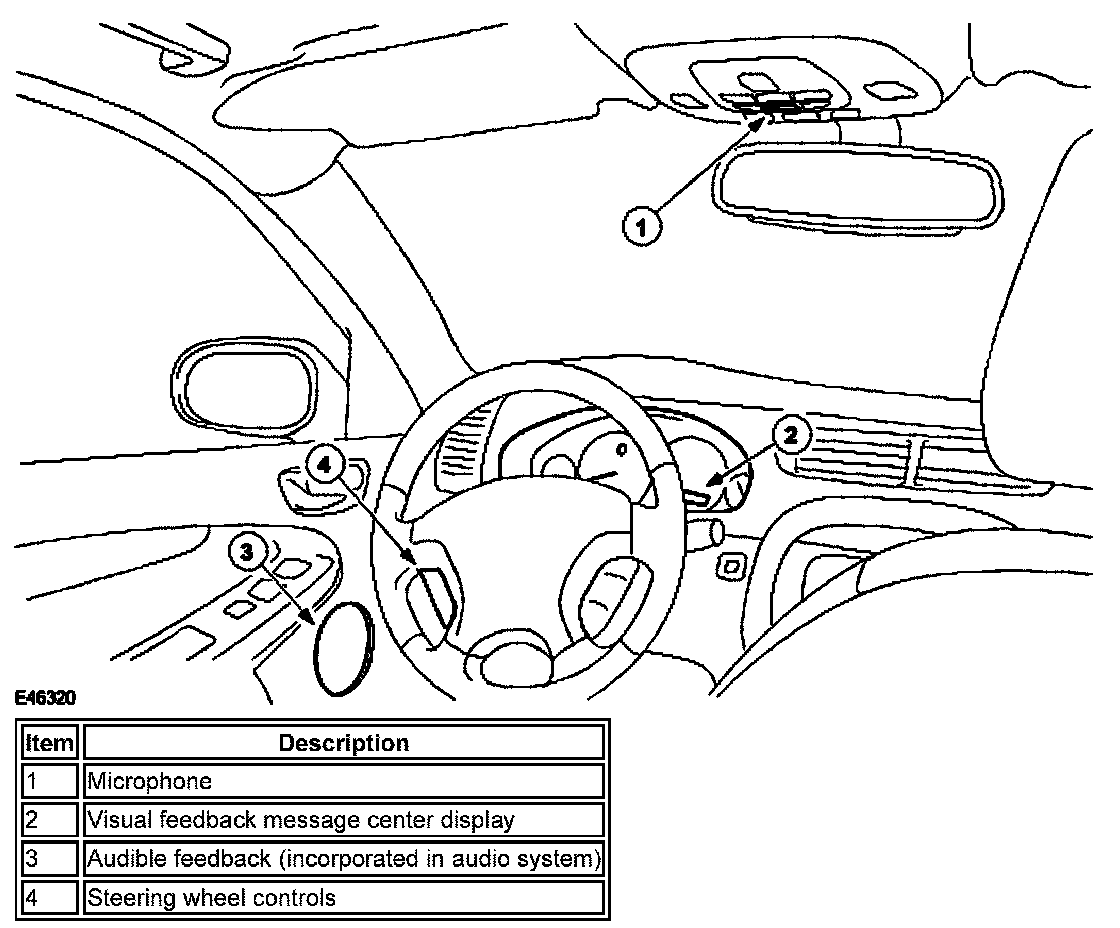

Voice Activated Control Component Location

Voice Activated Control Component Location:

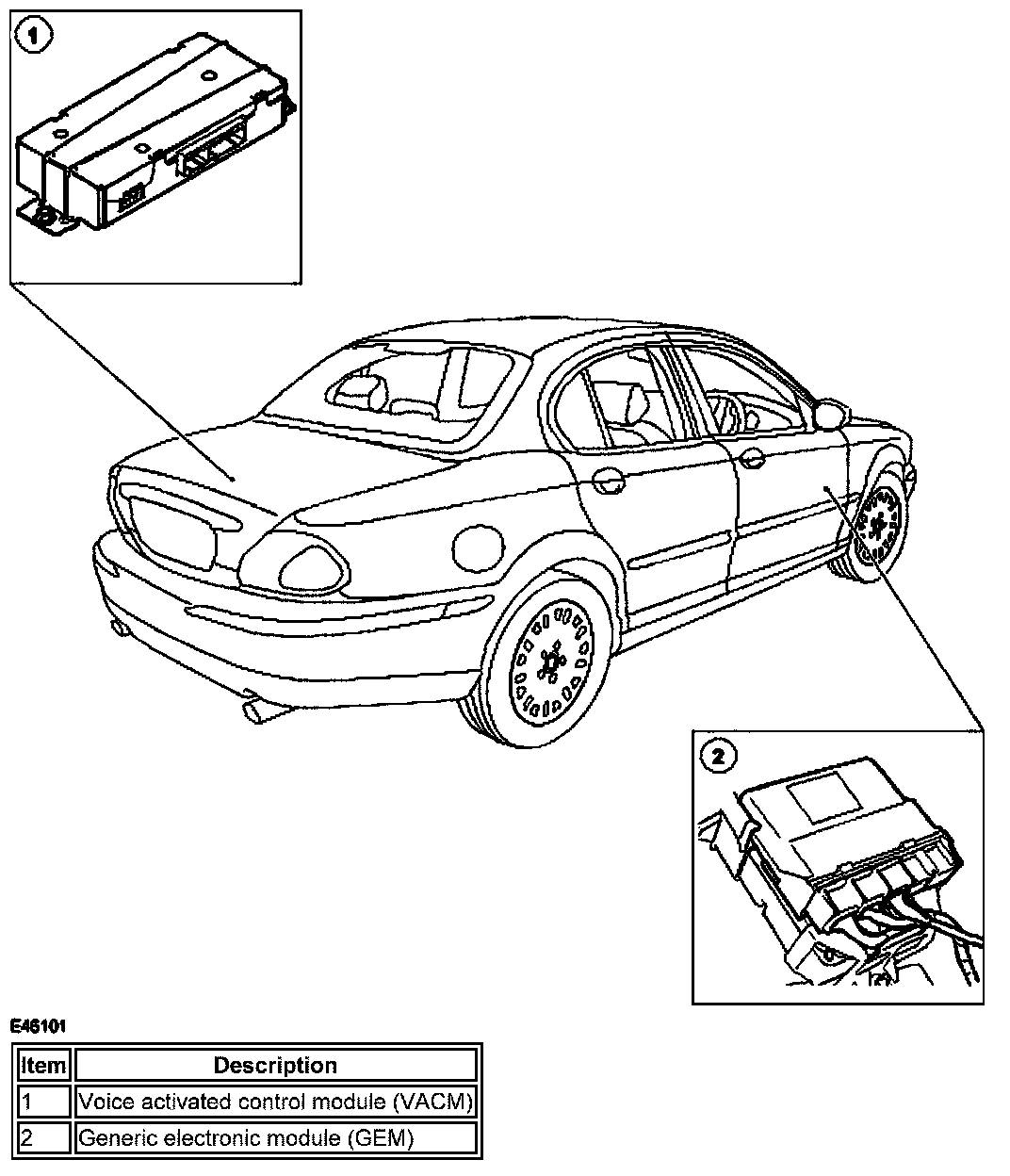

Generic Electronic Module (GEM)
The GEM module is located on the right hand side, below the instrument panel. The GEM module controls the wiper and security systems.

Voice Activated Control Module (VACM)
The VACM is located in the left hand side luggage compartment behind the trim panel. The VACM module controls and processes all the voice commands given by the driver, then delivers this information to the audio unit, navigation system module, television module, integrated cellular phones and the climate control modules which then carry out these commands.

Microphone
The microphone is used for the cellular phone and to receive voice commands. The microphone supplies the information to the VACM which processes the commands and supplies the necessary information to the correct modules.

Visual Feedback Message Center Display
This display keeps the driver informed of the function which is being selected or processed.

Audible Feedback (Speakers)
This audible tone informs the driver when the system is able to receive commands for processing.

The verbal feedback speakers are incorporated in the audio speakers. These speakers are utilized to confirm to the driver that there verbal command has been accepted and is being proceeded.

Steering Wheel Controls VOICE/PHONE
Button This button is automatically configured by the audio unit depending on which systems are installed on the vehicle.
