Brake Switch (Cruise Control): Service and Repair

Speed Control Deactivator Switch

Removal

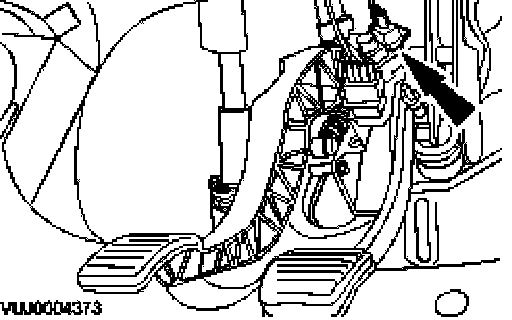

1. Disconnect the speed control deactivator switch electrical connector.







2. Remove the speed control deactivator switch.
- Turn the speed control deactivator switch 45 degrees counter clockwise.

Installation







NOTE:
- Operate the brake pedal to allow the speed control deactivator switch plunger to remain in the fully extended position during installation.
- Releasing and then pulling back on the brake pedal until the pedal reaches the stop in the brake booster, will adjust the speed control de-activator switch plunger to the required setting.

1. Install the speed control deactivator switch.
- Turn the speed control deactivator switch 45 degrees clockwise.







2. Connect the speed control deactivator switch electrical connector.
