Antitheft and Alarm Systems

Security: Sedan

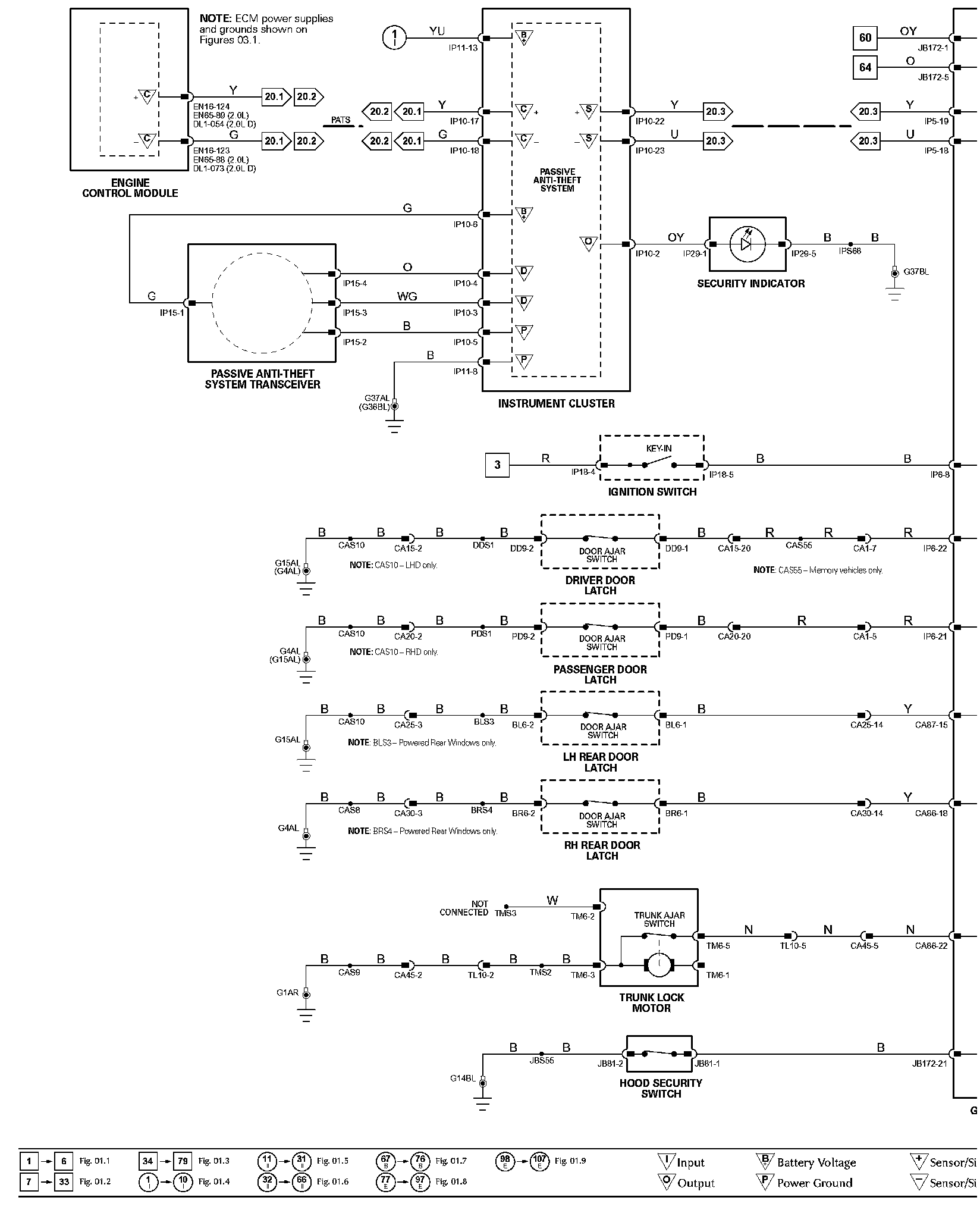

a�+Diagram Figure 12.4:

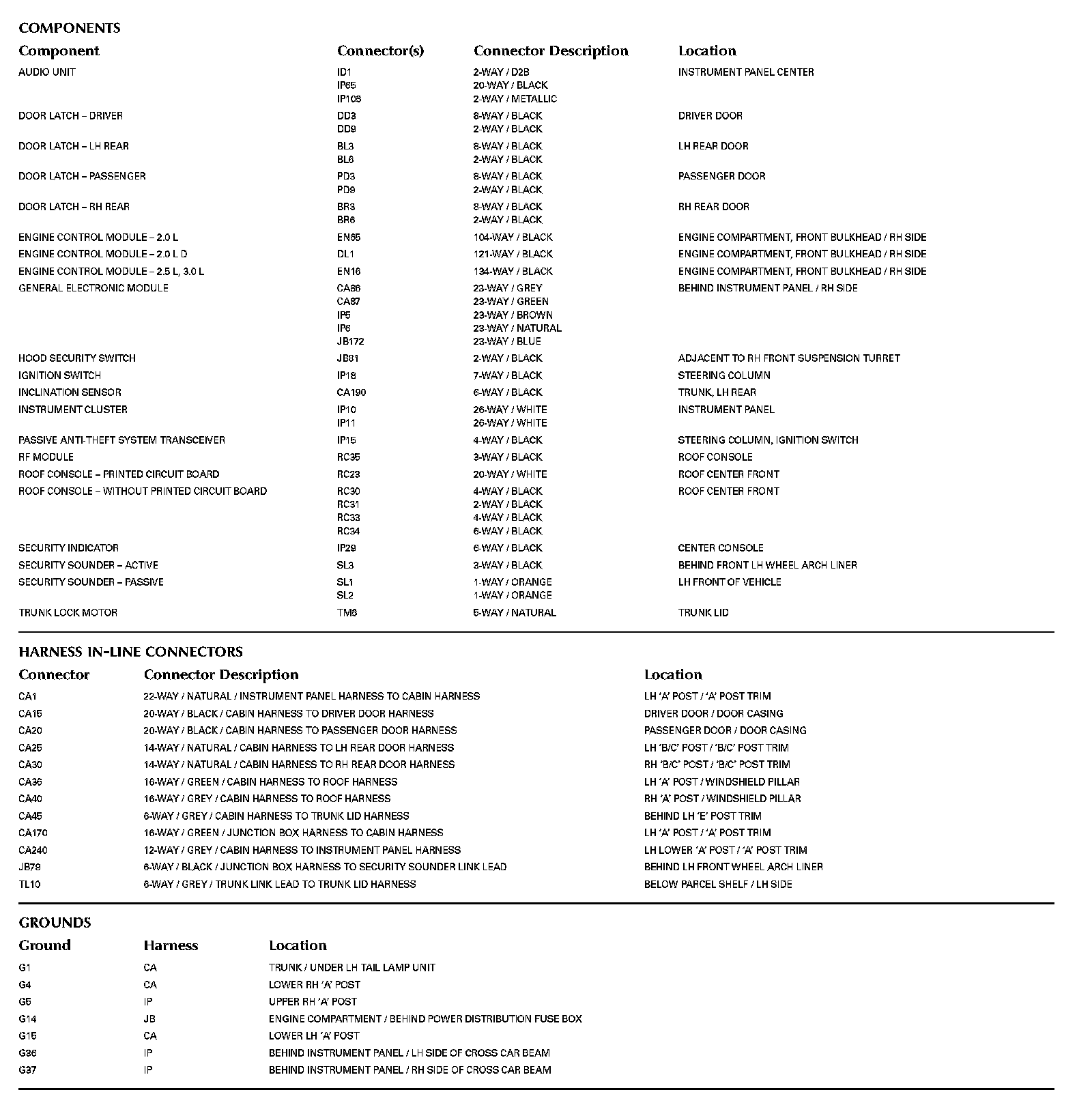

Diagram Data Sheet 12.4 (Part 1):

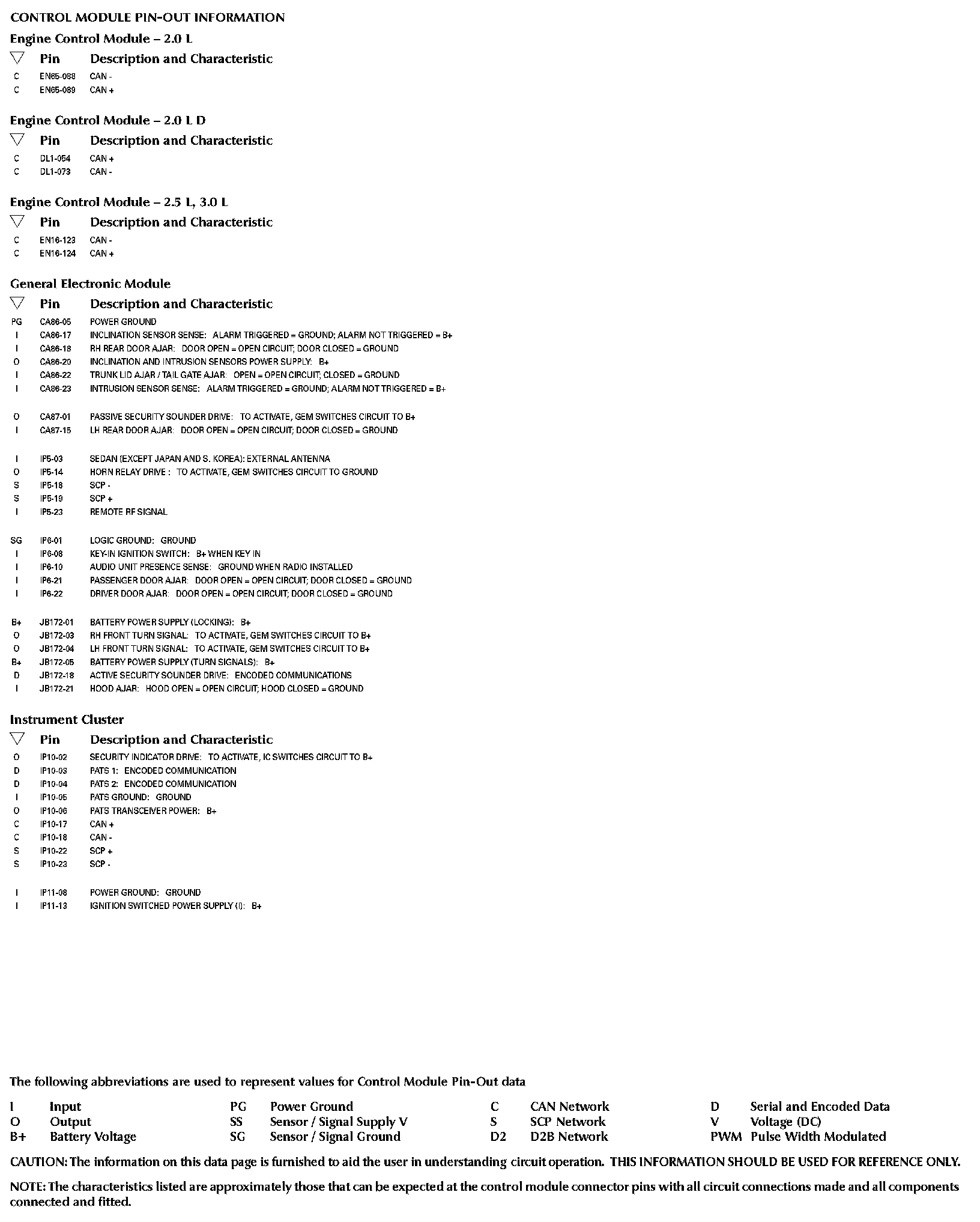

Diagram Data Sheet 12.4 (Part 2):

Diagrams: Other diagrams referred to by Fig. number (i.e. 01.1, 20.4, etc.) within these diagrams can be found at the vehicle level under Diagrams by Figure Number Diagrams By Figure Number

Locations: The location views for Ground Points, In-Line Harness Connectors, Harnesses, and Control Modules depicted within these diagrams can be found at Vehicle/Locations. Locations

Connector Views: The connectors views/pin-outs for the Control Modules depicted within these diagrams can be found at the vehicle level connector views. Connector Views
