Major Harnesses and Fuse Box Location
Sedan (Gasoline Engine Shown):

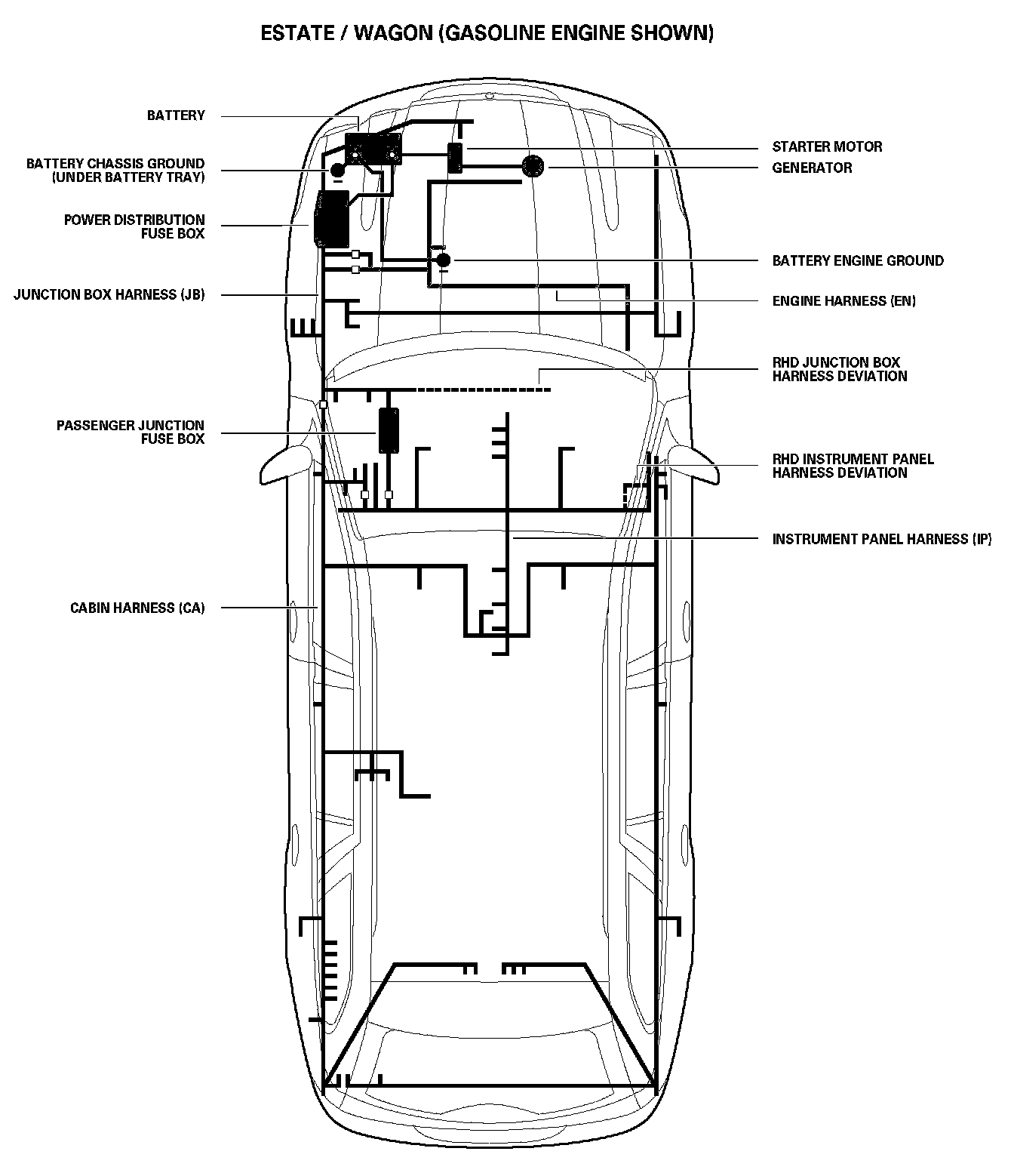

Estate/Wagon (Gasoline Engine Shown):
