Blower Motor: Service and Repair

343740

Blower Motor

Removal
1. Remove the blower motor lower cover.







2. Disconnect the electrical connector.







3. Remove the blower motor.

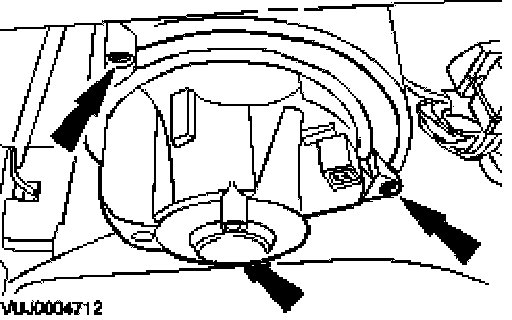

Remove the blower motor retaining screws.

Installation
1. To install, reverse the removal procedure.
