Climate Control System - II

Control Components

Mode Door Actuators:

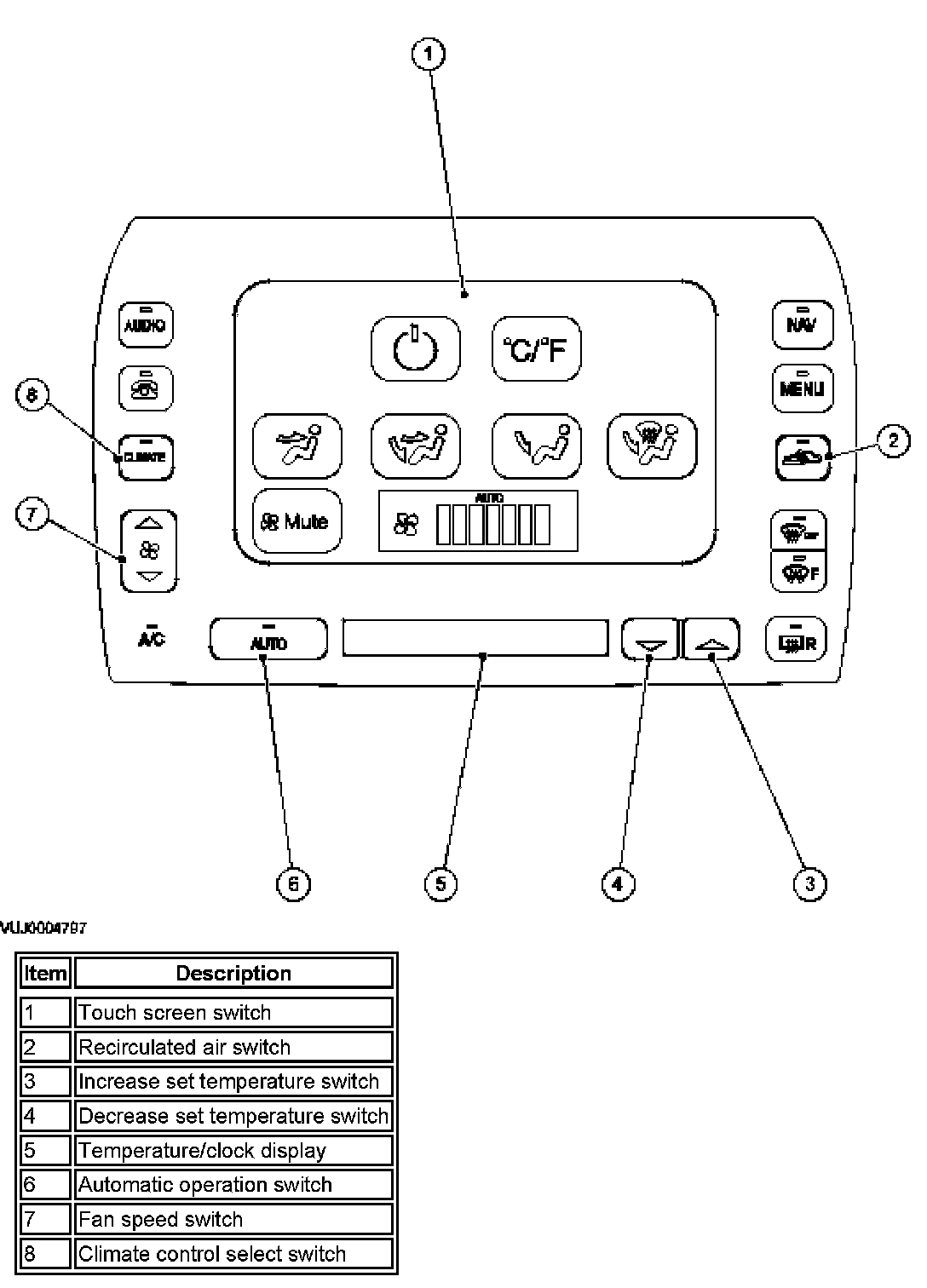

Automatic climate control with touch screen

Climate Control Touch Screen:

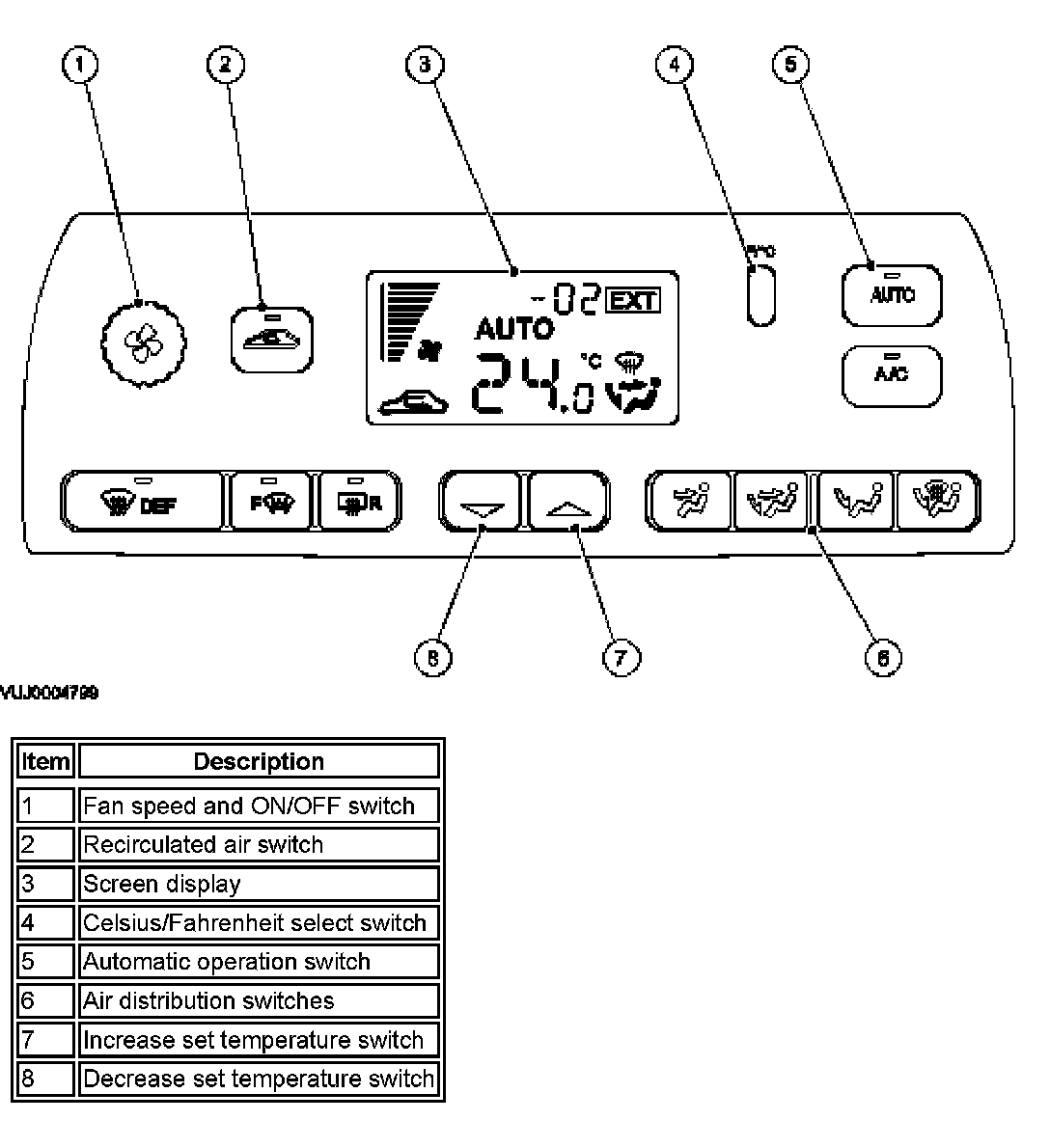

Automatic climate control with liquid crystal display (LCD)

Climate Control LCD:

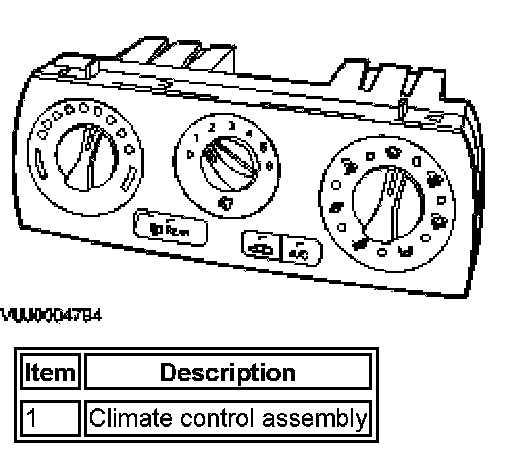

Manual climate control

Climate Control Manual:

This vehicle is fitted with one of the following climate control systems:
- manual climate control
- automatic climate control with a liquid crystal display (LCD) screen
- automatic climate control with a touch screen

Each system has a unique control panel located in the center console above the radio and audio controls.
