Dashboard / Instrument Panel: Description and Operation

Instrument Panel

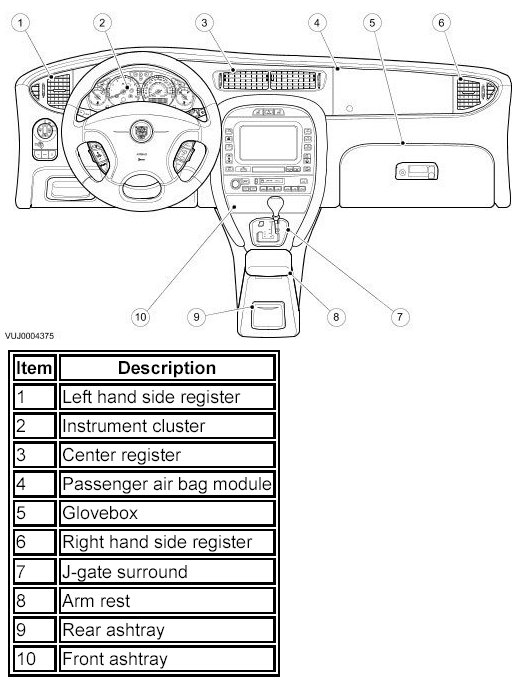

The instrument panel assembly houses the main instrument cluster, passenger air bag module, glovebox, and air distribution registers, all of which can be readily removed without disturbing the instrument panel. The instrument panel wiring harness is located behind the instrument panel assembly to facilitate easy installation in vehicle. The instrument panel must be removed from the vehicle to gain access to the wiring harness.
