Multiple Junction Connector: Locations

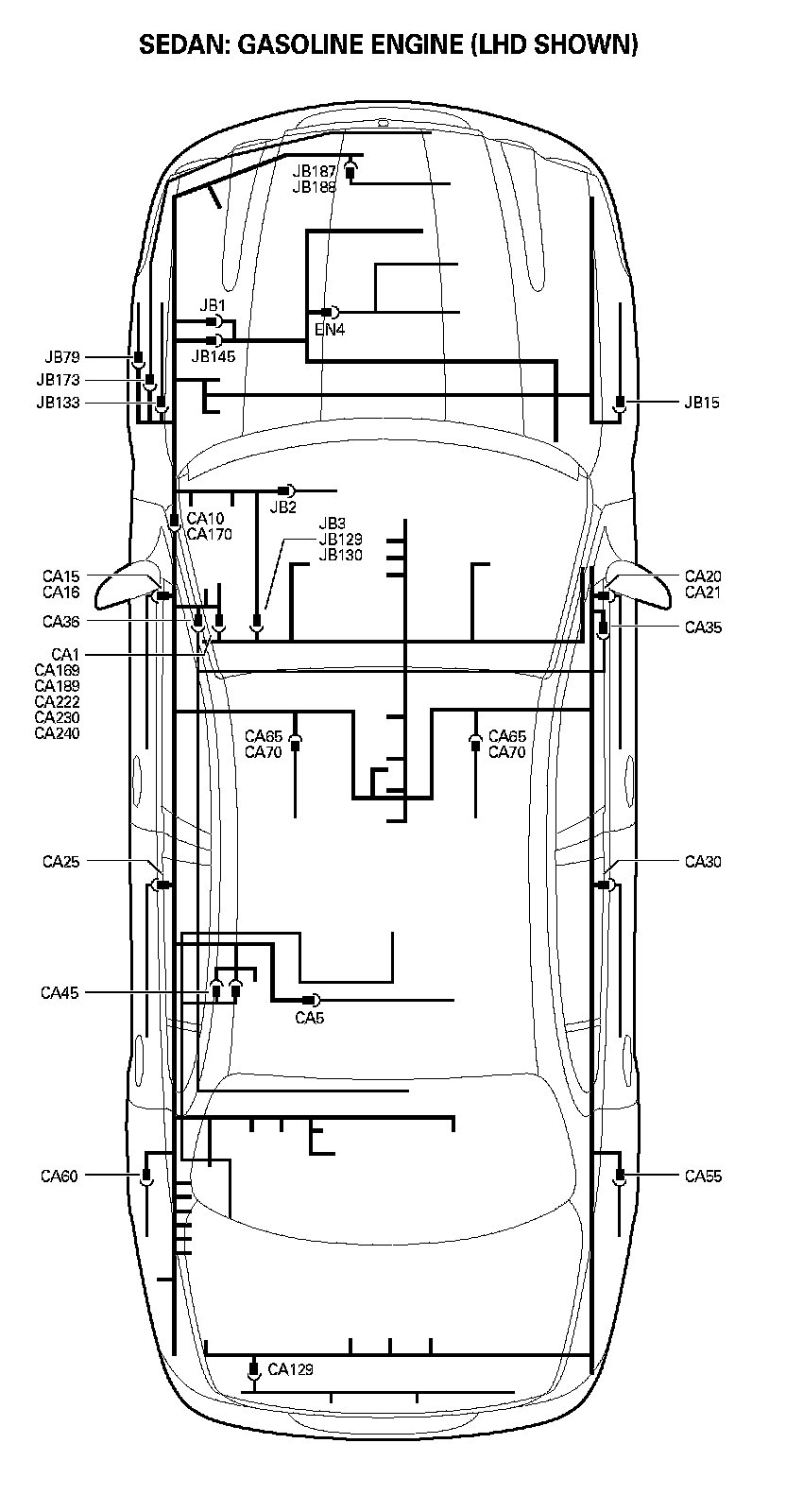

Harness In-Line Connector Location
Sedan: Gasoline Engine (LHD Shown):
