Relay Box: Application and ID

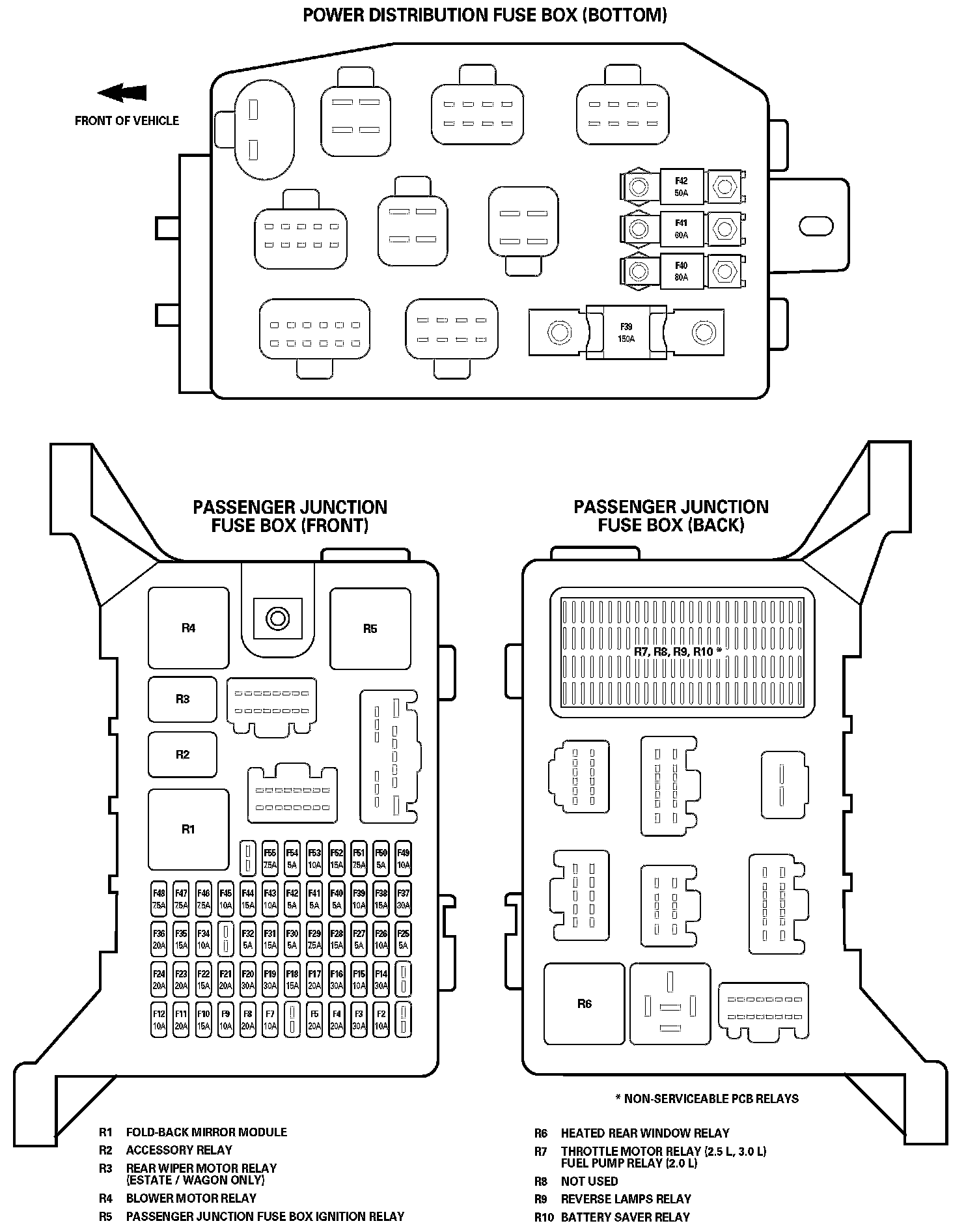

Relay and Fuse Location

Relay and Fuse Location:




Relay and Fuse Location:
