X-Type (X400) V6-3.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Diagrams
Relay Box: Diagrams
Fuse Box Connectors

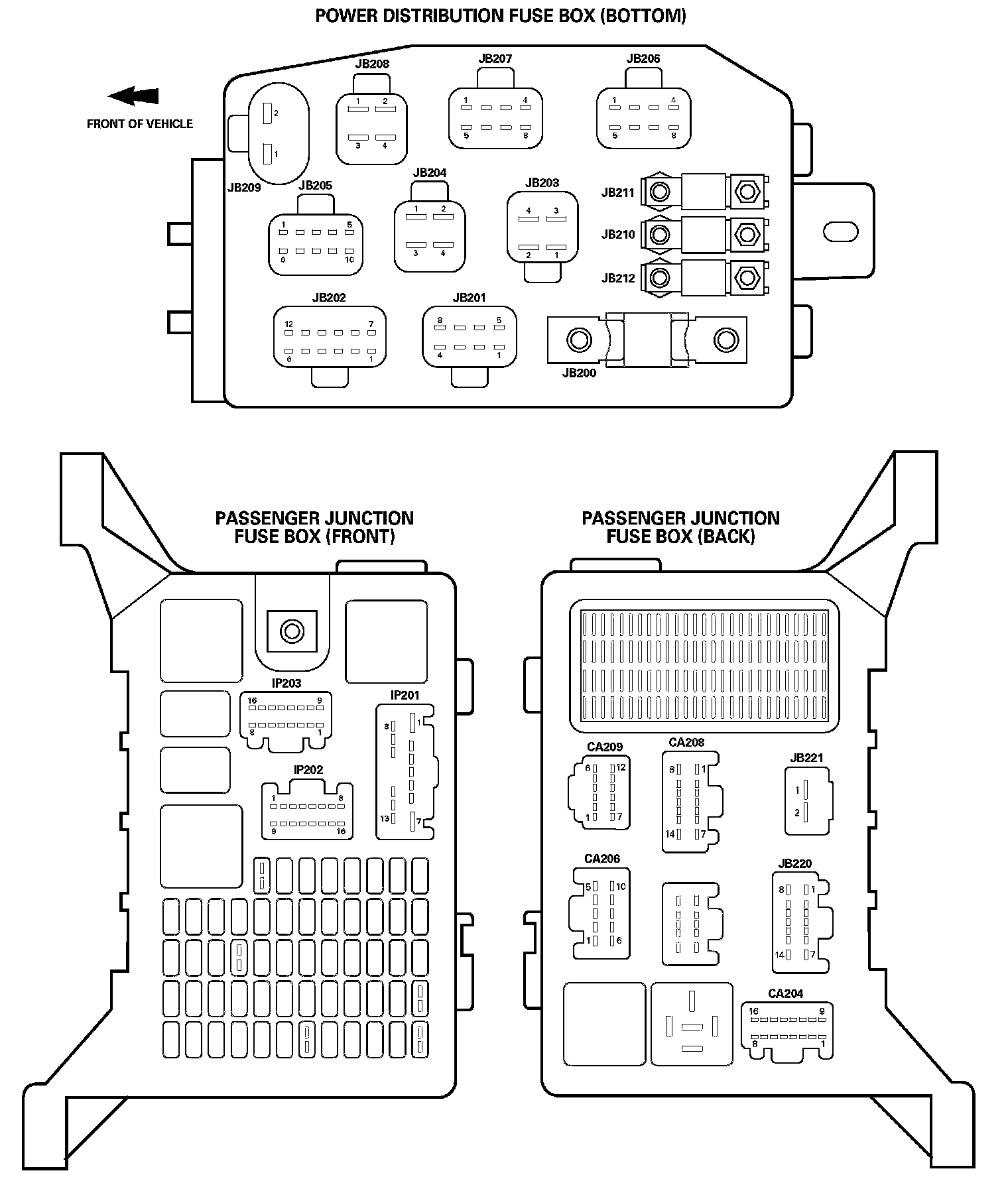

Power Distribution Fuse Box (Bottom):
