Body - Front/Rear Door Glass Won't Close All The Way

NUMBER
XT501-037

MODEL
X-TYPE

SECTION:
501-11 - GLASS, FRAMES AND MECHANISMS

Door Glass Not Closing Fully

AFFECTED VEHICLE RANGE:

X-TYPE

VIN:
C00001 to E92891

Model Year:
2002 to 2006

CONDITION SUMMARY:

DOOR GLASS NOT CLOSING FULLY

A customer may report a concern that a door window may be stopping short of full closure. Wind noise and possible water ingress may be a result.

Situation:
A fault with the electronic parameters in the anti-trap feature of the window regulator may be the cause.

Action:
Should a customer report this concern, and the condition has been verified, refer to the Repair Procedure detailed in this bulletin to install a latest specification window regulator.





PARTS:

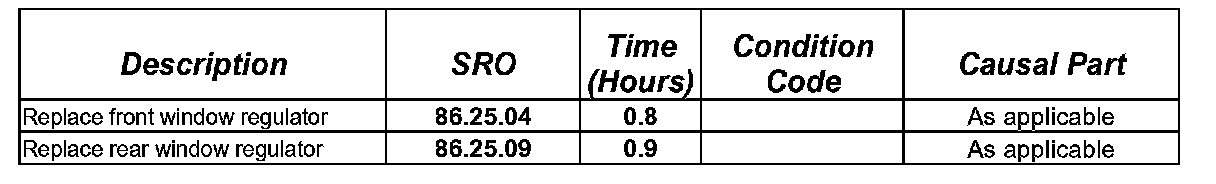

WARRANTY:





NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

Normal warranty policy and procedures apply.

REPAIR PROCEDURE

INSTALL LATEST SPECIFICATION WINDOW REGULATOR

NOTE:
GTR lookup sequence is as follows:
GTR Home > NAS > Service Information/ X400 - X-Type/2002 > Workshop Manuals > X-TYPE 2002.25 -> 2003.00 Workshop Manual > Bookmark "Body and Paint/501-11: Glass, Frames and Mechanisms/Removal and Installation" Link "Front Door Window Regulator and Motor (86.25.04)" or "Rear Door Window Regulator (86.25.09)"

1. Determine which window regulator is not closing fully.

2. Refer to GTR Section 501-11 operation 86.25.04 or 86.25.09 and install the latest specification front or rear window regulator.

3. Verify proper operation and full closure of installed window regulator.
