Brakes - Rear Brake Moan in Reverse
NUMBERJTB00077
(Version 1)
MODEL
X-TYPE
DATE
16 July 2008
THIS BULLETIN REPLACES JTB00048, VERSION 2
CHANGES ARE HIGHLIGHTED WITH GRAY BACKGROUND
SECTION: 206-04
'Moan' Noise from Rear Brakes When Moving in Reverse or Maneuvering Slowly - Repair Procedure
AFFECTED VEHICLE RANGE:
CONDITION SUMMARY:
A 'MOAN' NOISE IS HEARD COMING FROM THE REAR BRAKES WHEN MOVING IN REVERSE OR MANEUVERING SLOWLY
Situation:
A customer may report a concern of a moan noise coming from the rear brakes when moving in reverse or maneuvering slowly. The inner brake pads may be dragging.
Action:
Should a customer express this concern and the brake moan noise has been verified, refer to the Repair Procedure detailed in this bulletin and install a modified front bushing to each rear knuckle.
PARTS:

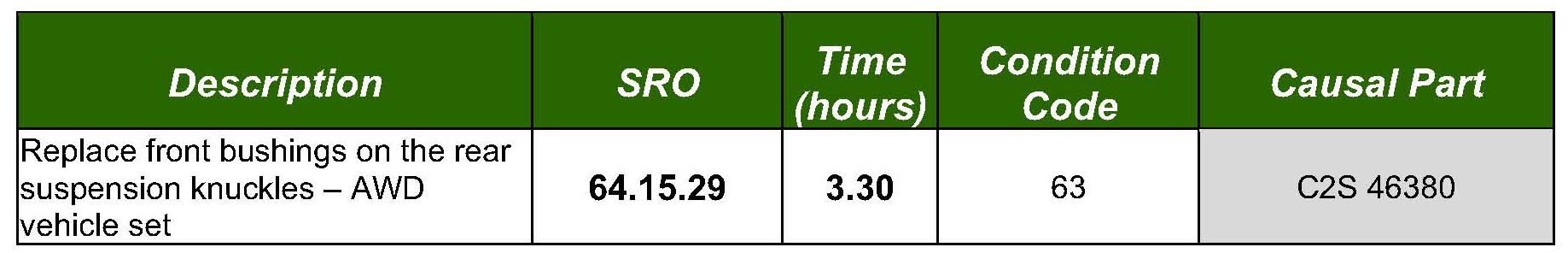

WARRANTY:
NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.
DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
Normal warranty policy and procedures apply.
REPAIR PROCEDURE
REPLACE FRONT BUSHINGS ON REAR SUSPENSION KNUCKLES
1. Perform the following to one side of the vehicle:
NOTE:
Global Technical Reference (GTR) lookup sequence is as follows:
GTR Home > NAS > Service Information / X400 - X-TYPE/2005 > Workshop Manuals > Bookmark "Chassis/Suspension/204-02: Rear Suspension" Removal and Installation link "Wheel Knuckle Front Bushing (64.15.28)"
^ Refer to GTR section 204-02, operation 64.15.28 and remove the front bushing from the rear suspension knuckle.
NOTE:

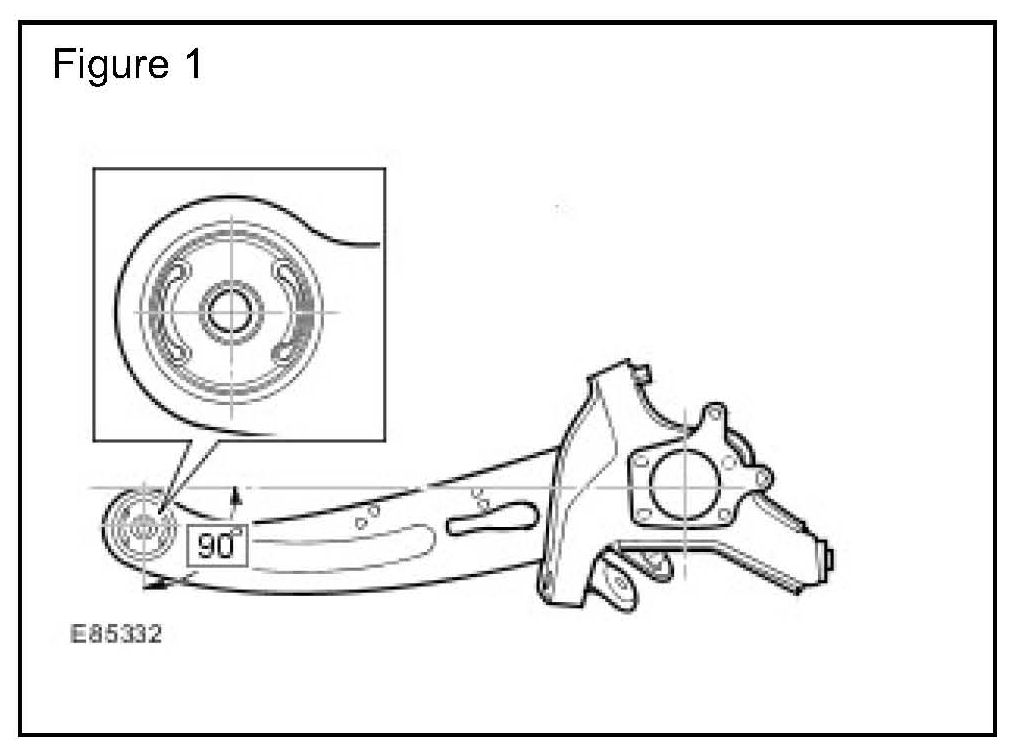

The modified bushing is voided. The voids of the modified bushing must be installed with the correct orientation as illustrated in Figure 1.
^ Refer to GTR section 204-02, operation 64.15.28 and install a modified front bushing to the rear suspension knuckle, ensuring the voids in the bushing are correctly oriented. (Figure 1)
2. Repeat step 1 to the opposite side of the vehicle.
