M/T - Rattle From The Clutch Area at Idle
NUMBERXT308-009
DATE
03 July 2006
MODEL
X-TYPE
SECTION:
308-01
Rattle from Clutch
AFFECTED VEHICLE RANGE:
X-TYPE
VIN:
C00001 onwards
Model Year:
2002 onwards
CONDITION SUMMARY:
CLUTCH RATTLE ON IDLE OR SHIFT RATTLE ON ACCELERATION
Situation:
A customer may report a concern of a "rattle" from the clutch area at idle, or a shift raffle on acceleration.
A missing "anti-rattle" mechanism on the current clutch disc may be the cause.
Action:
Should a customer express a concern, refer to the Repair Procedure detailed in this bulletin to install the new clutch disc.
PARTS:
C2533393 Clutch disc Qty 1

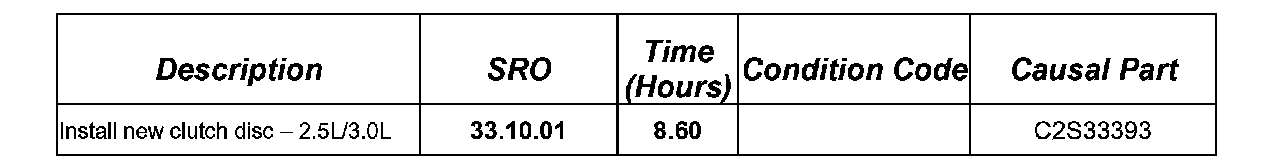

WARRANTY:
NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.
DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.
Normal warranty policy and procedures apply.
REPAIR PROCEDURE
INSTALL NEW CLUTCH DISC
NOTE:
GTR lookup sequence is as follows:
GTR Home > NAS > Service Information/ X400 - X-TYPE/2002 > Workshop Manuals > X-TYPE 222.25-2003.00 Workshop Manual > Bookmark "Powertrain/Manual Transmission/Transaxle, Clutch and Transfer Case/308-01: Clutch/Removal and Installation" Link "Clutch Disc and Pressure Plate (12.53.13)"
1. Refer to GTR section 308-01 operation 12.53.13 and install the new clutch disc (C2S33393).
