Windshield Washer Reservoir: Service and Repair

Windshield Washer Reservoir

Removal

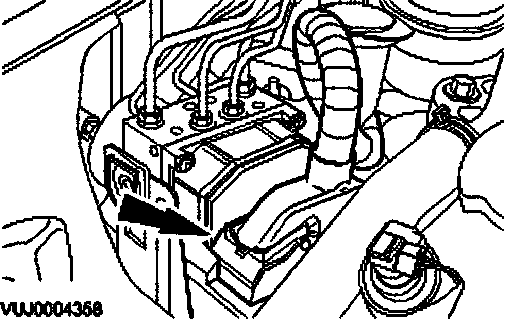

1. Disconnect the ABS electrical connector.







2. Detach the ABS module.

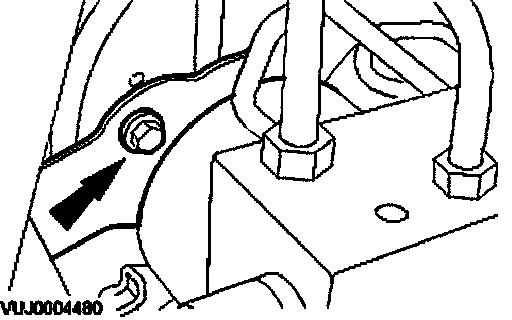

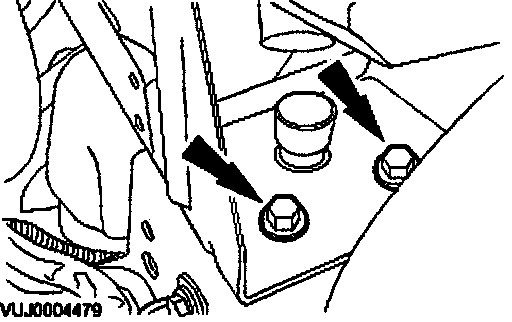

3. Remove the ABS module support bracket retaining bolts.







4. Remove the ABS module support bracket.

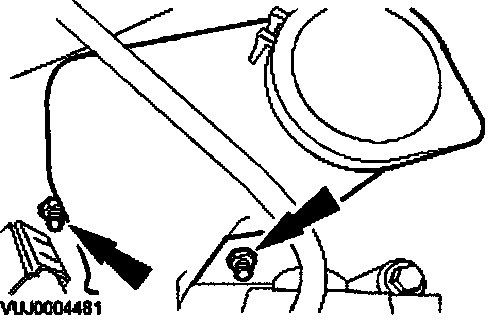

5. Remove the reservoir filler neck.







6. Remove the front bumper cover.

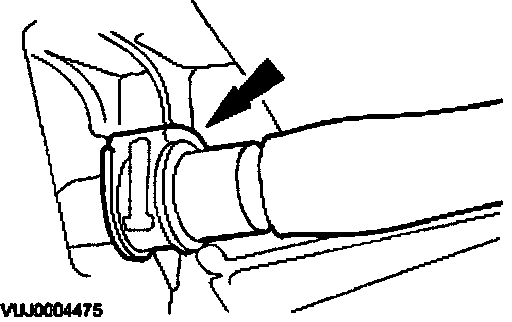

7. Disconnect the headlamp washer supply hose.

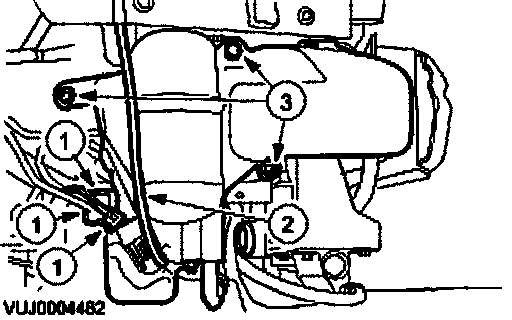

8. Remove the reservoir.
- Disconnect the washer pump, headlamp washer pump and fluid level switch electrical connectors.
- Disconnect the washer pump supply hose.
- Remove the reservoir.







Installation
1. To install, reverse the removal procedure.
