Cruise Control: Adjustments

Speed Control Module Alignment

Special Service Tools

Inclinometer 501-F007:

NOTE: Make sure the vehicle is positioned on level ground such as the headlamp alignment area.

1. Level the vehicle ride height.

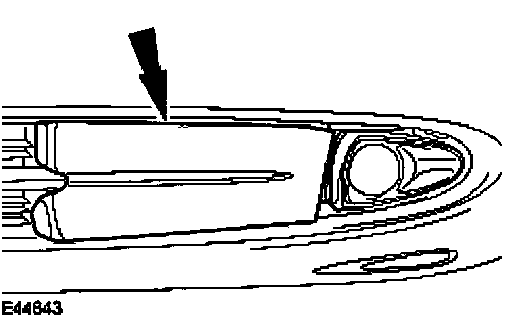

2. Remove the left-hand front bumper access cover.

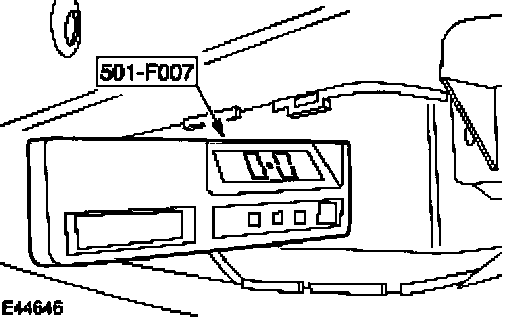

3. Using the special tool, check the speed control module vertical levelling.







4. Level the speed control module.

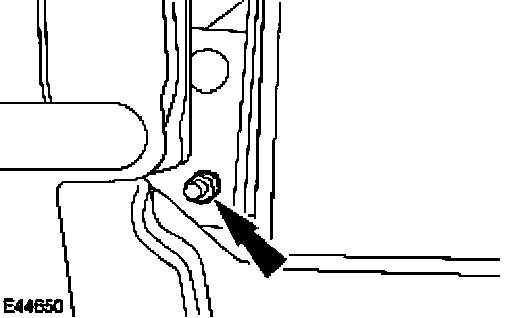

- Rotate the speed control module levelling bolt to achieve a reading of zero degrees ± 0.75 degrees.







5. Using the special tool, check the speed control module vertical levelling.

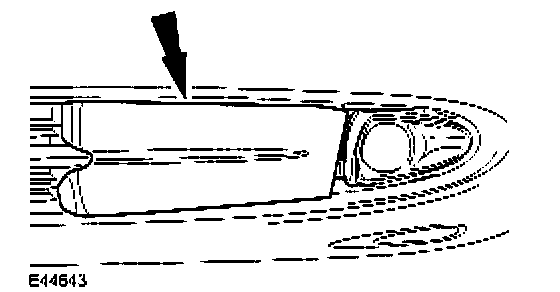

6. Install the left-hand front bumper access cover.







7. Carry out the speed control module calibration procedure.
