Battery Tray

442714

Battery Tray

Removal
1. Remove the battery.
2. Remove the spare wheel and tire.







3. Detach the rear power distribution box.

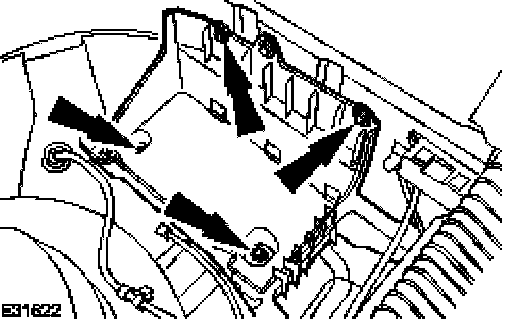

4. Remove the battery tray.

Installation







1. To install, reverse the removal procedure.
- Tighten to 13 Nm.
