Fig 03.3 (Engine Management - Part 1)

��1��1��1Diagram Figure 03.1:

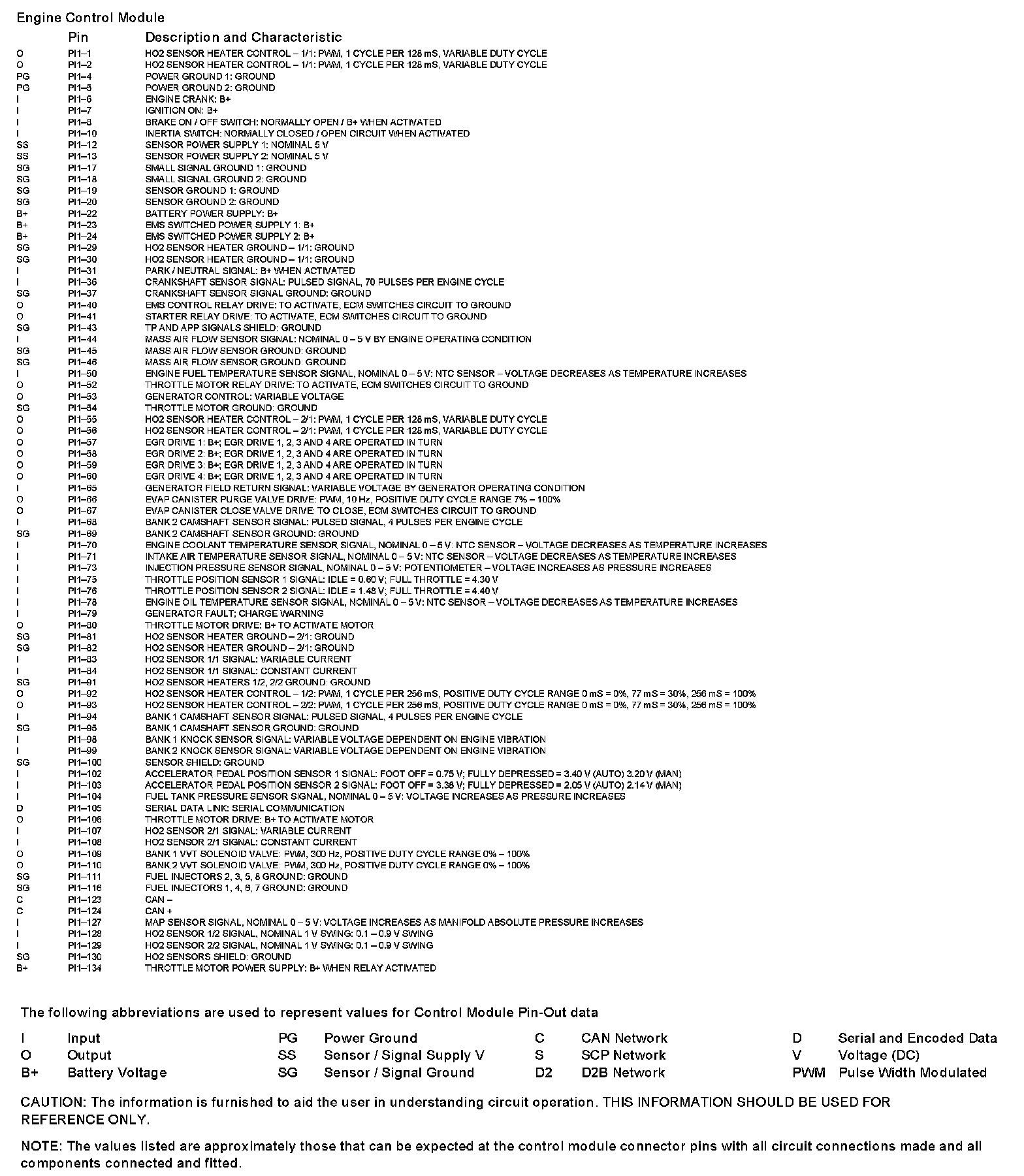

Diagram Data Sheet 03.3 (Part 1):



Diagram Data Sheet 03.3 (Part 2):
