Fig 06.1 (Climate Control: Part 1)
Fig 06.1 (Climate Control: Part 1)
,Z�d��Diagram Figure 06.1:

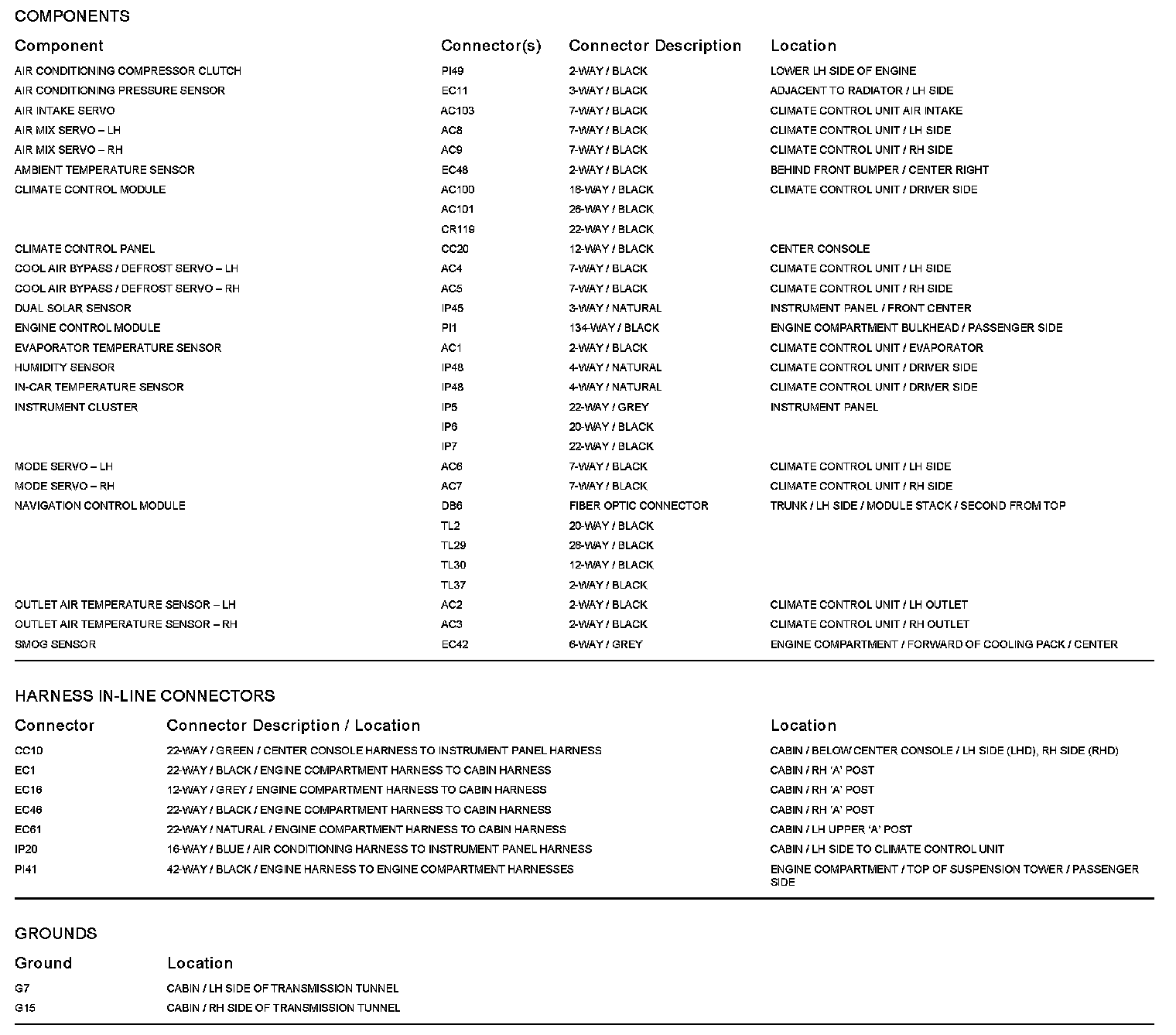

Diagram Data Sheet 06.1 (Part 1):
Diagram Data Sheet 06.1 (Part 2):
