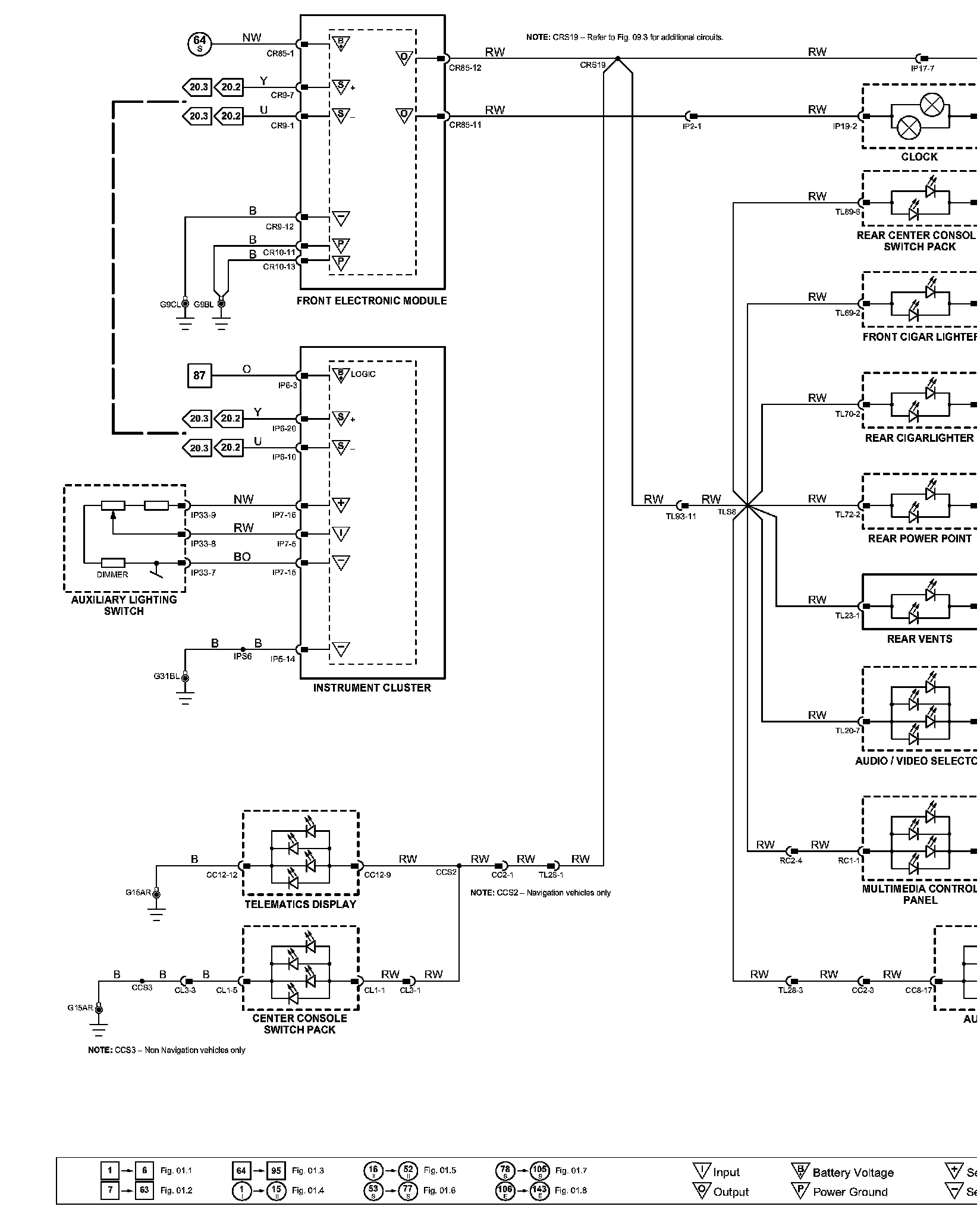

Fig 09.2 (Dimmer-Controlled Lighting: Part 1)
Fig 09.2 (Dimmer-Controlled Lighting: Part 1)
:°%#:°%?w°%Diagram Figure 09.2:

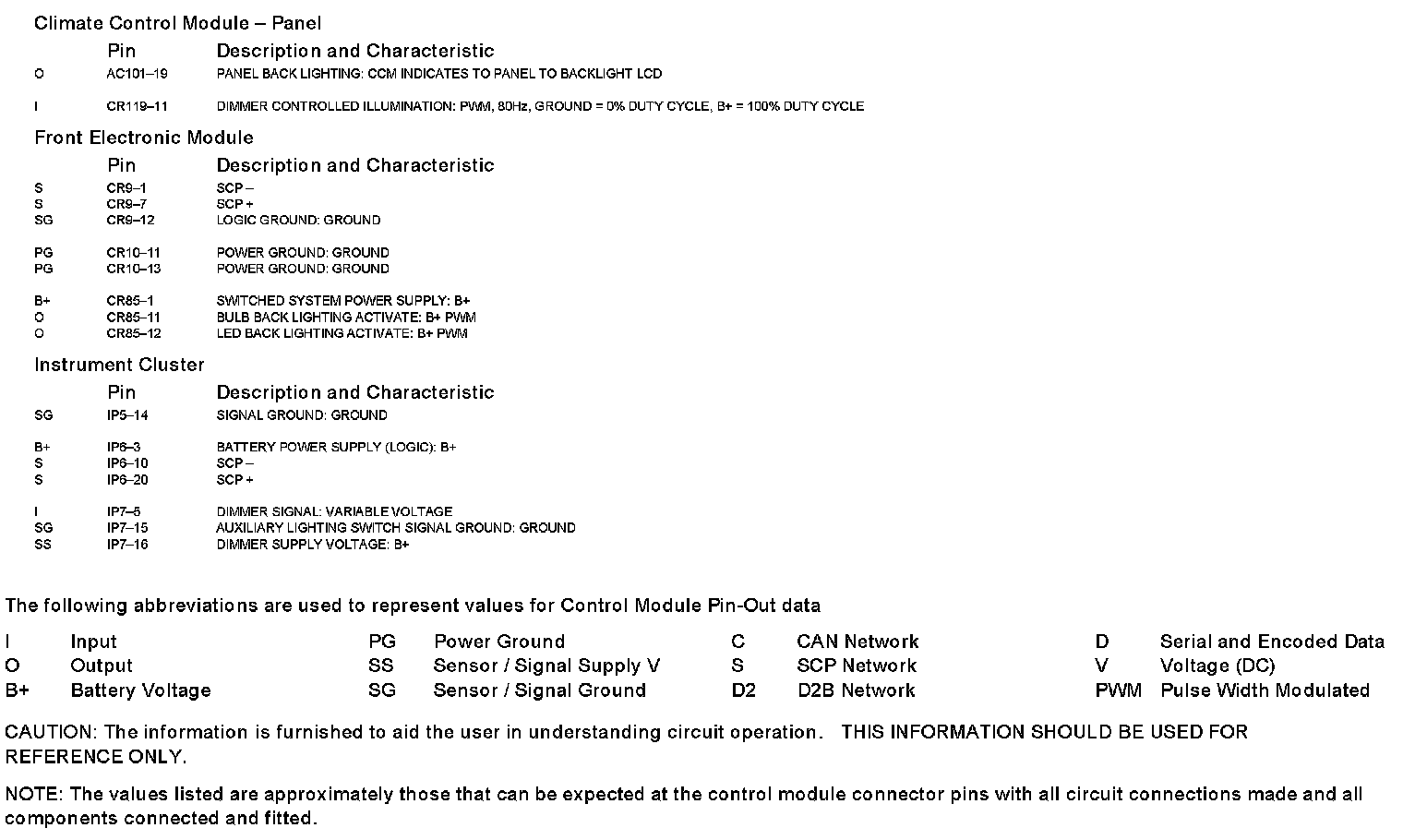

Diagram Data Sheet 09.2 (Part 1):
Diagram Data Sheet 09.2 (Part 2):
