Fig. 11.3(Interior and Exterior Mirrors Tint; Fold-Back Mirrors)



Interior and Exterior Mirrors Tint; Fold-Back Mirrors

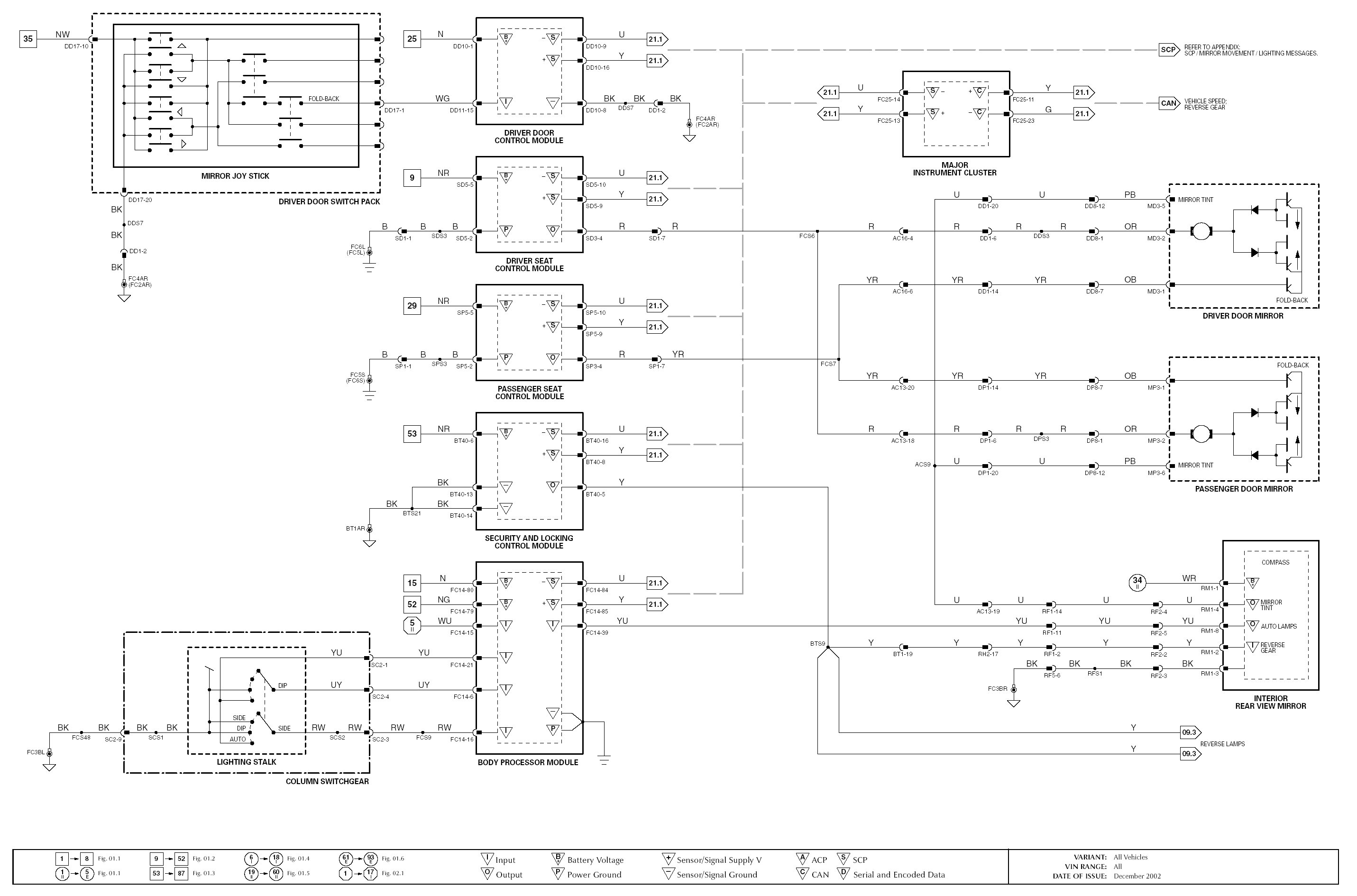

Diagram Figure 11.3:

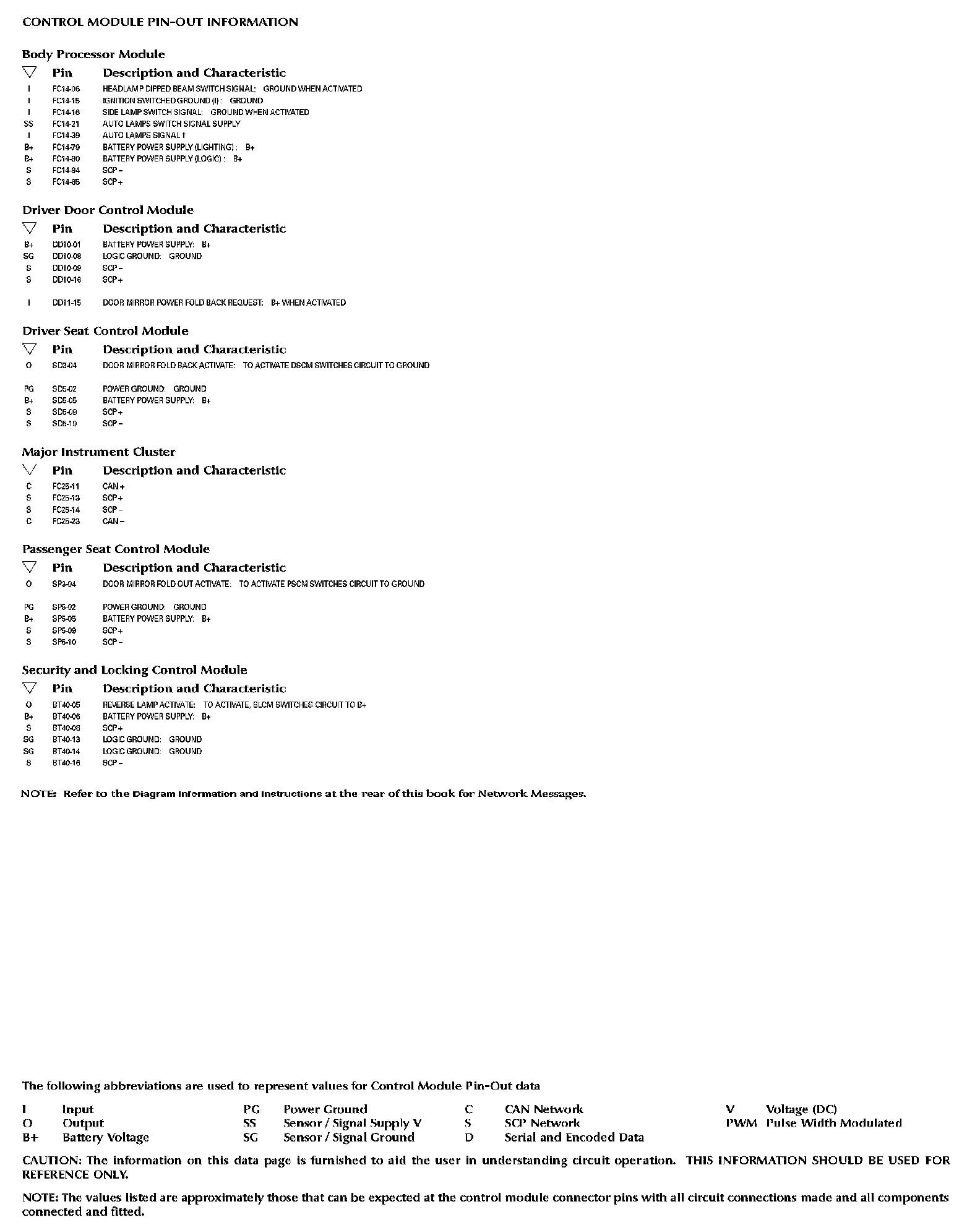

Diagram Data Sheet 11.3 (Part 1):




Diagram Data Sheet 11.3 (Part 2):
