Fig. 03.1(Battery; Starter; Generator)



Battery; Starter; Generator


Diagram Figure 03.1:

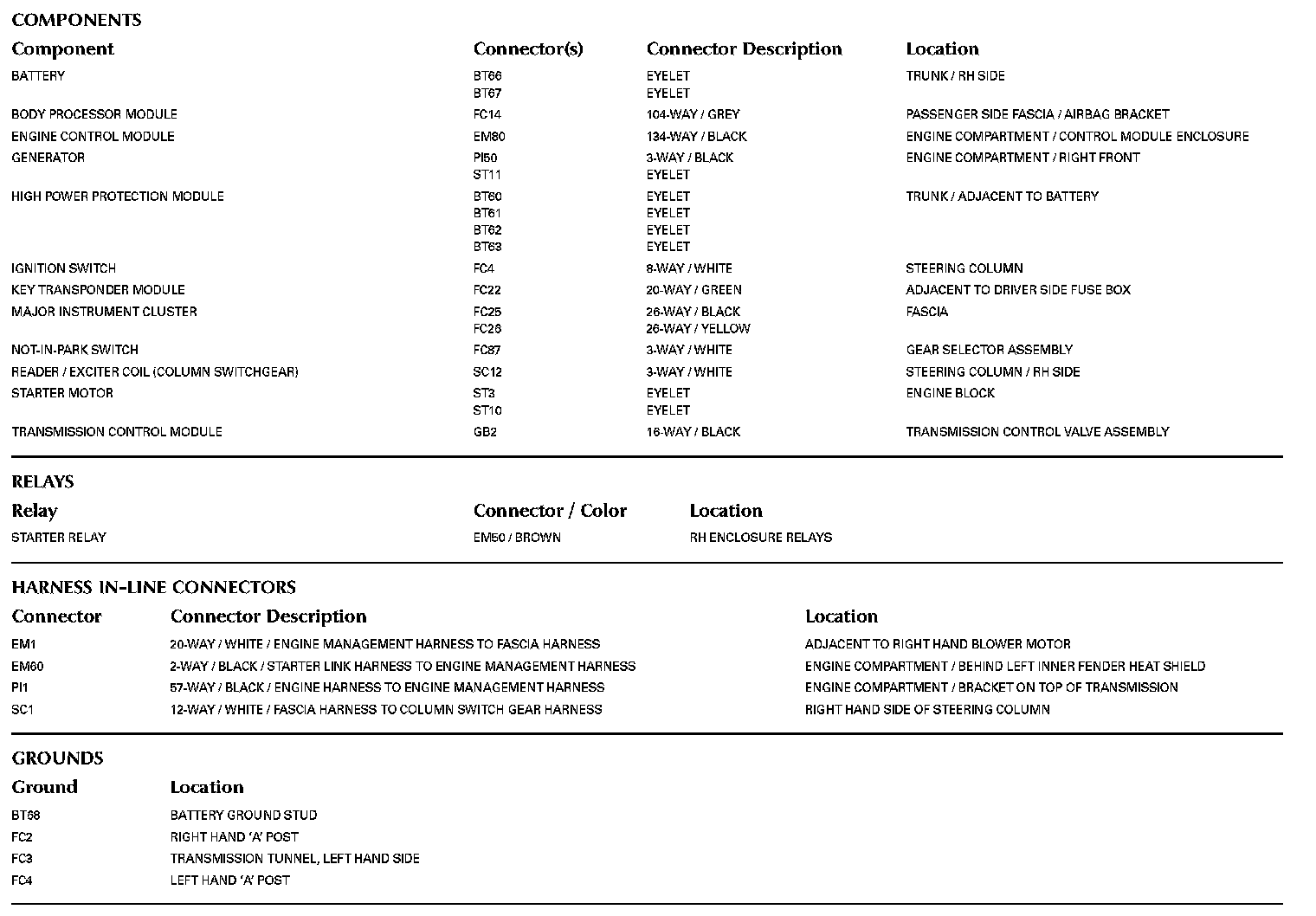

Diagram Data Sheet 03.1 (Part 1):

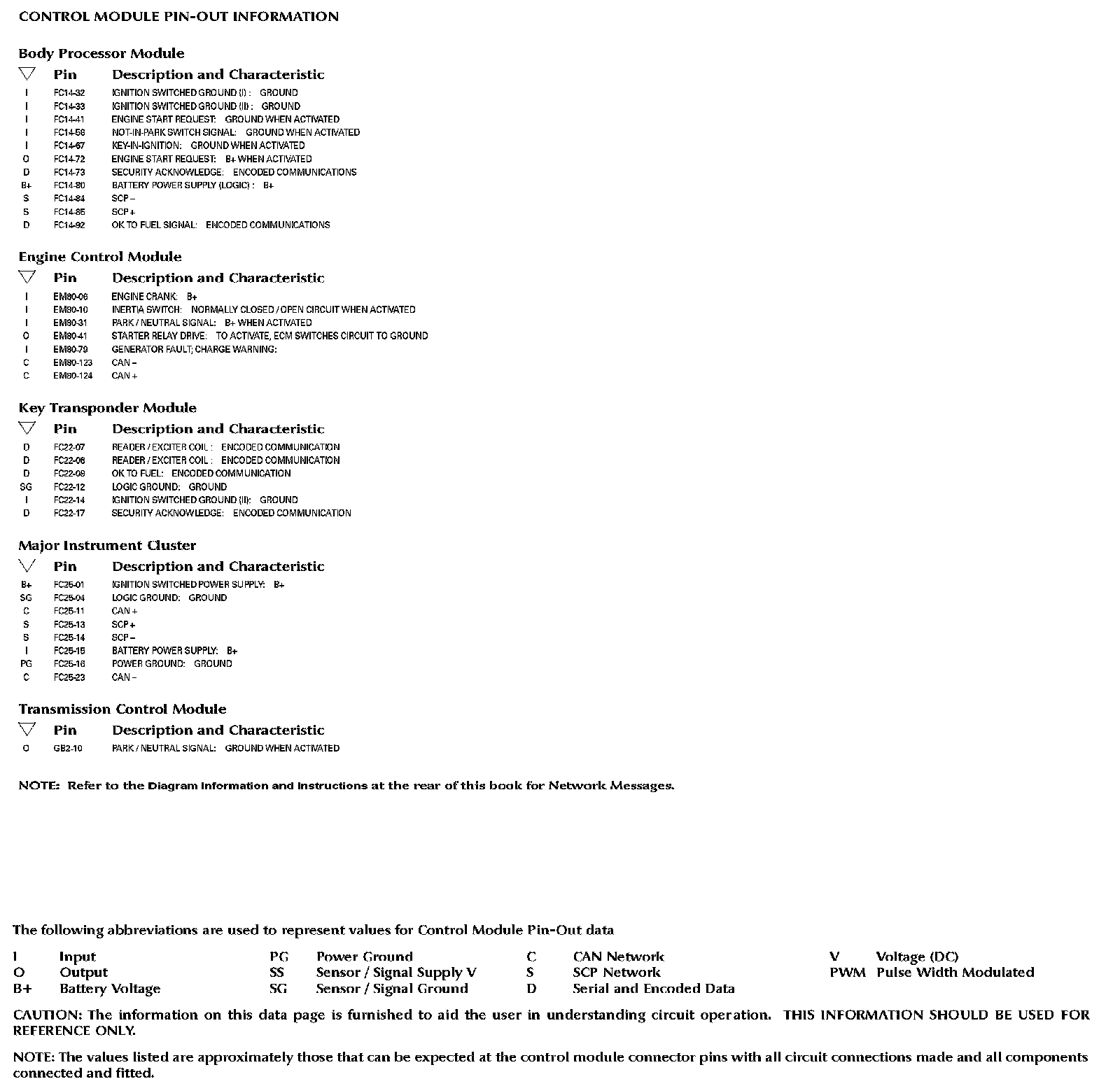

Diagram Data Sheet 03.1 (Part 2):
