Fig. 10.1(Interior Lighting)



Interior Lighting


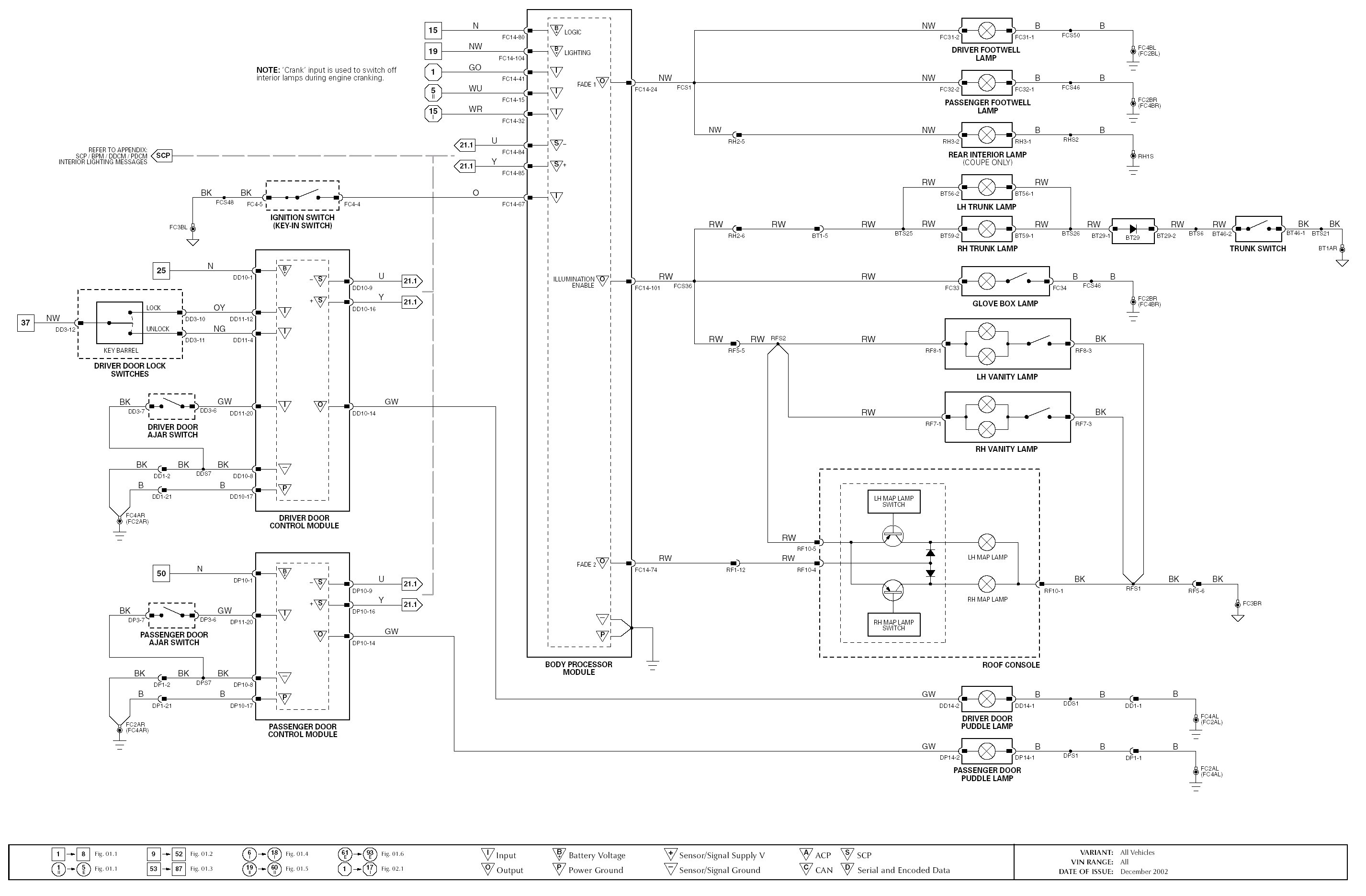

Diagram Figure 10.1:

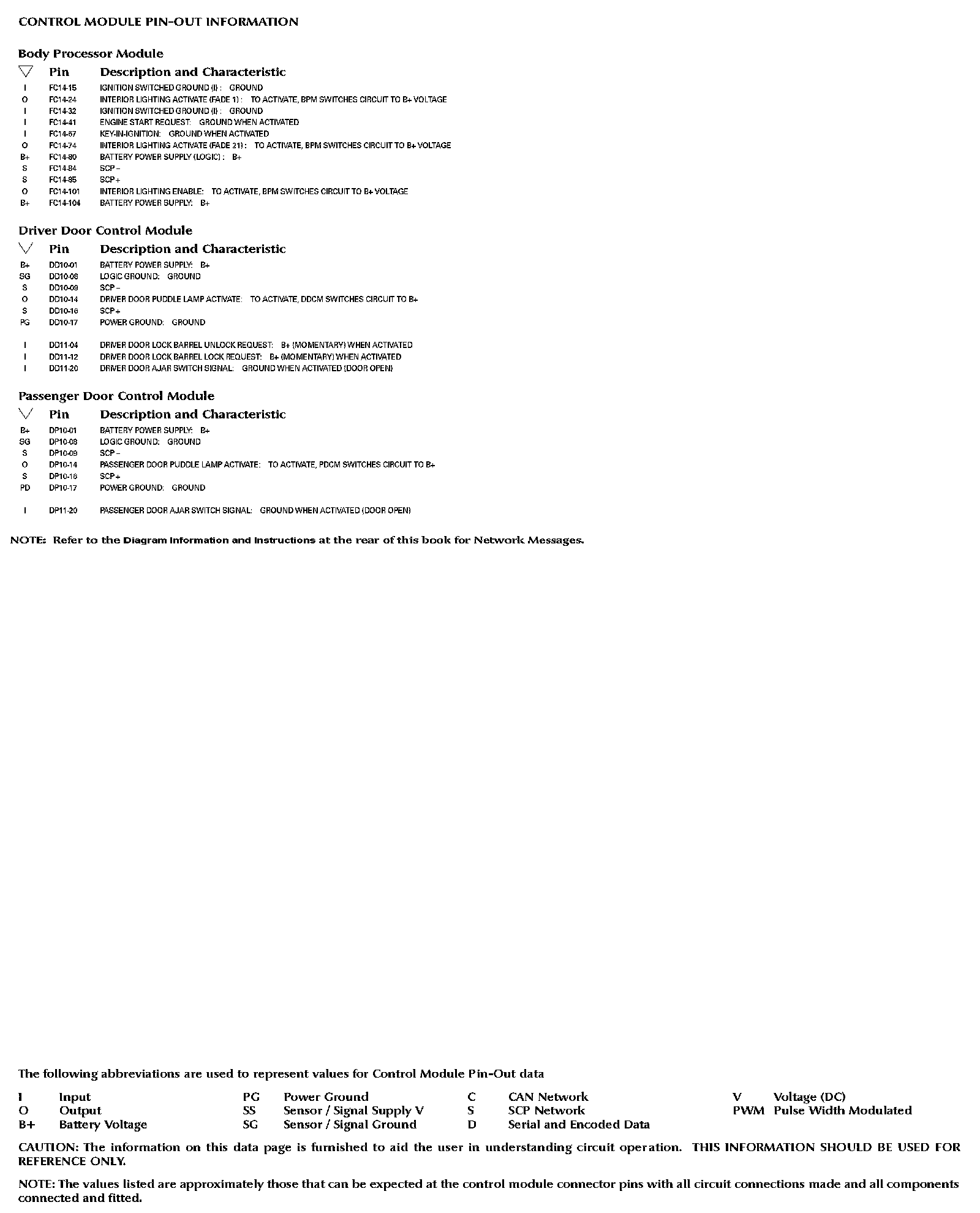

Diagram Data Sheet 10.1 (Part 1):




Diagram Data Sheet 10.1 (Part 2):
