Fig. 11.1(Steering Column Movement)



Steering Column Movement

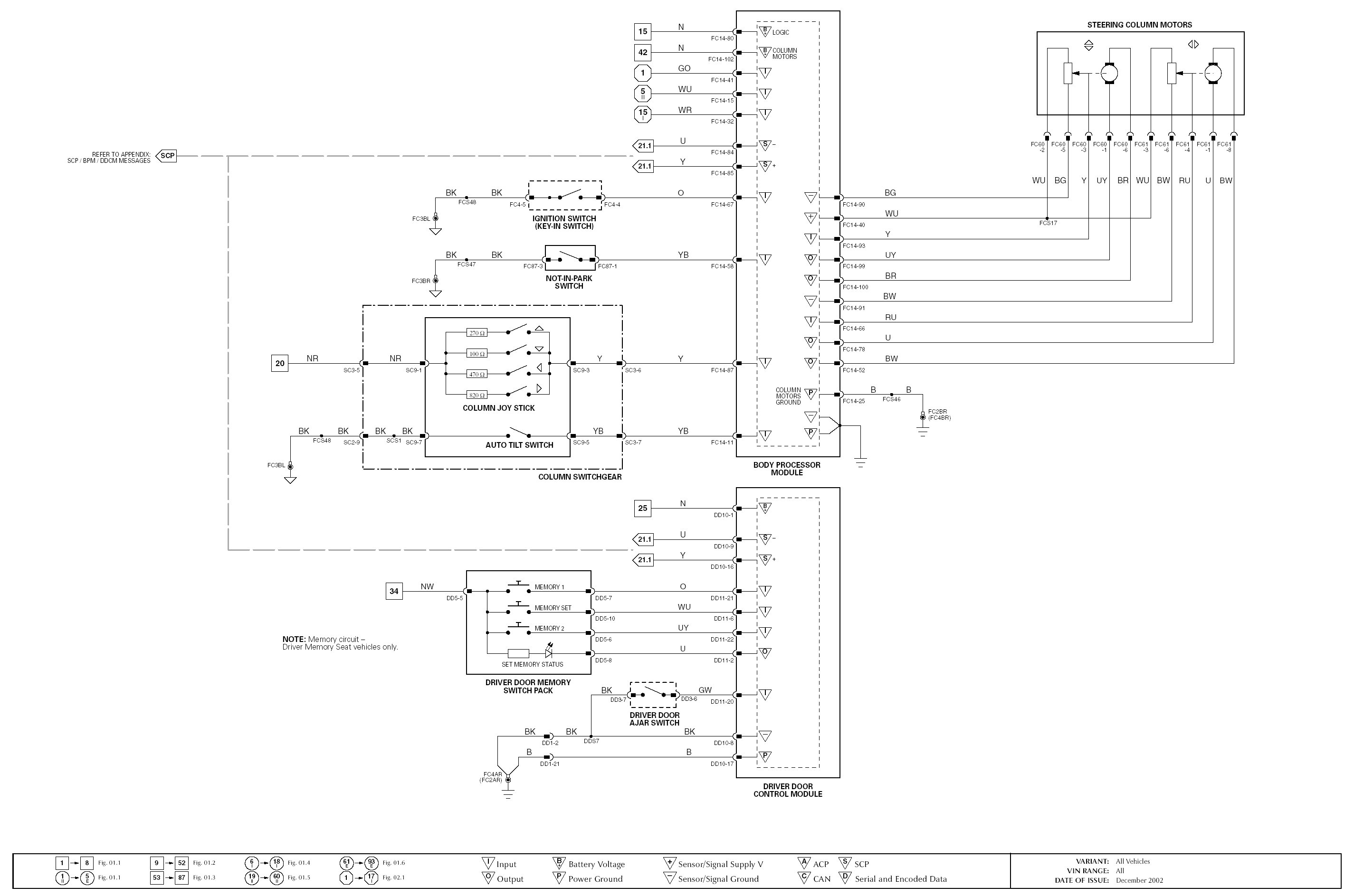

Diagram Figure 11.1:

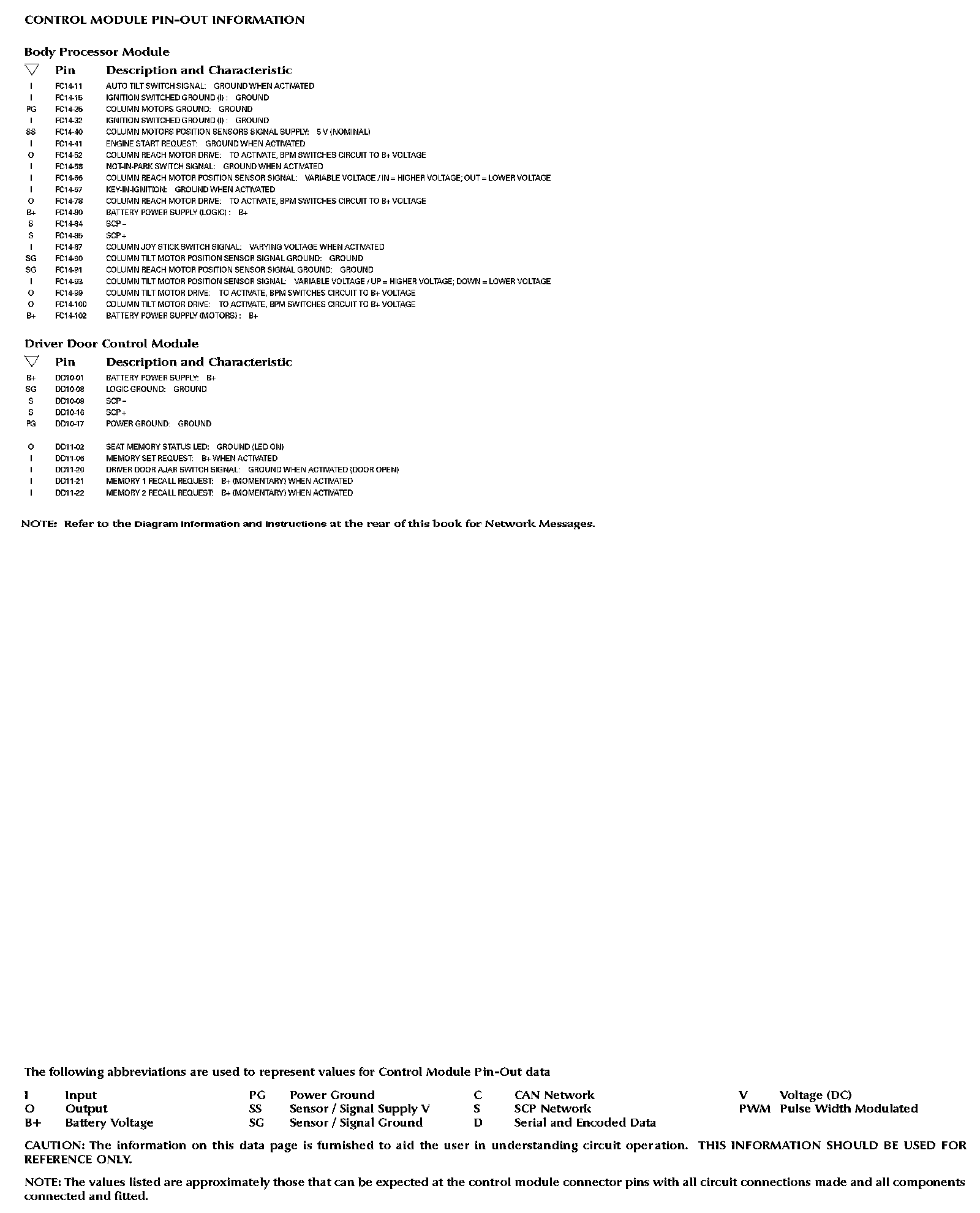

Diagram Data Sheet 11.1 (Part 1):

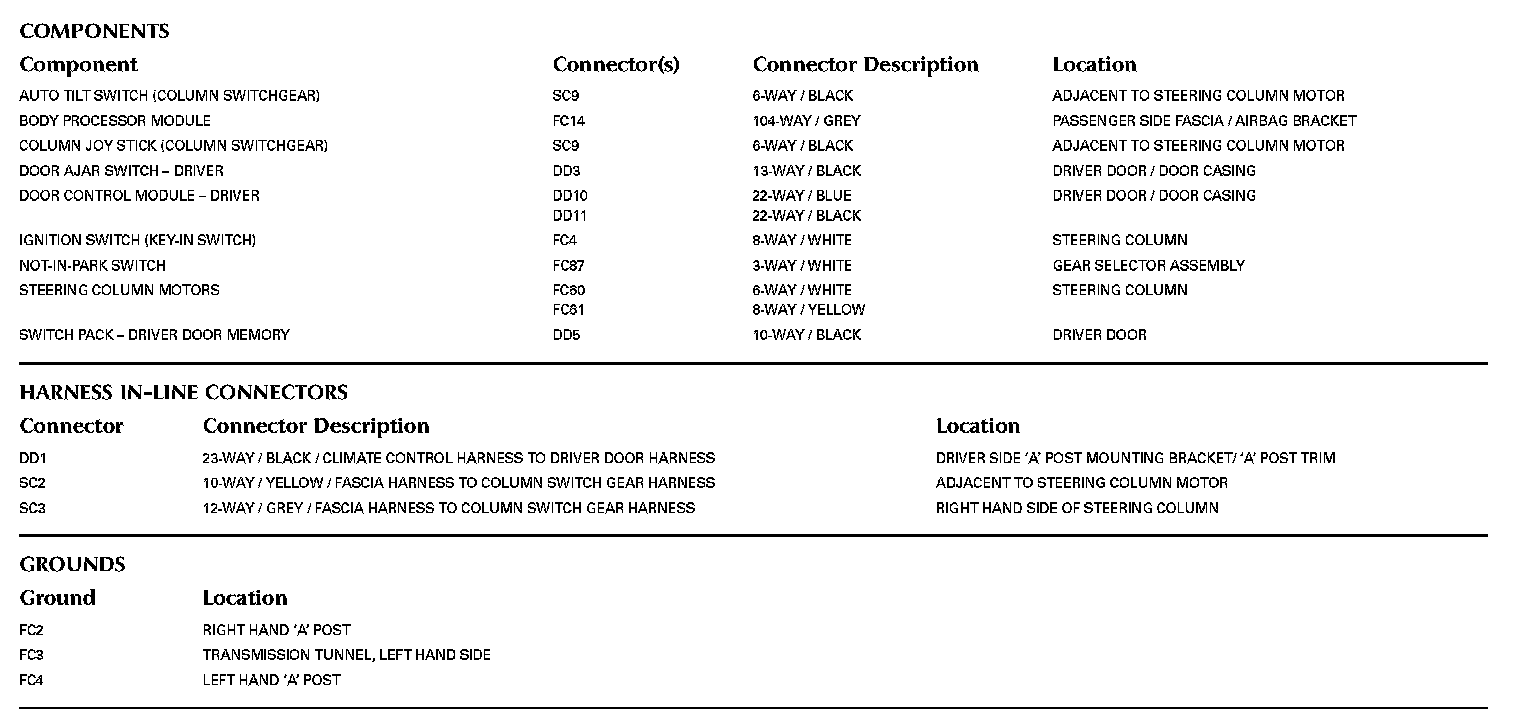

Diagram Data Sheet 11.1 (Part 2):
