Fig. 14.1(Wash / Wipe System)
Fig. 14.1(Wash / Wipe System)
Wash / Wipe System

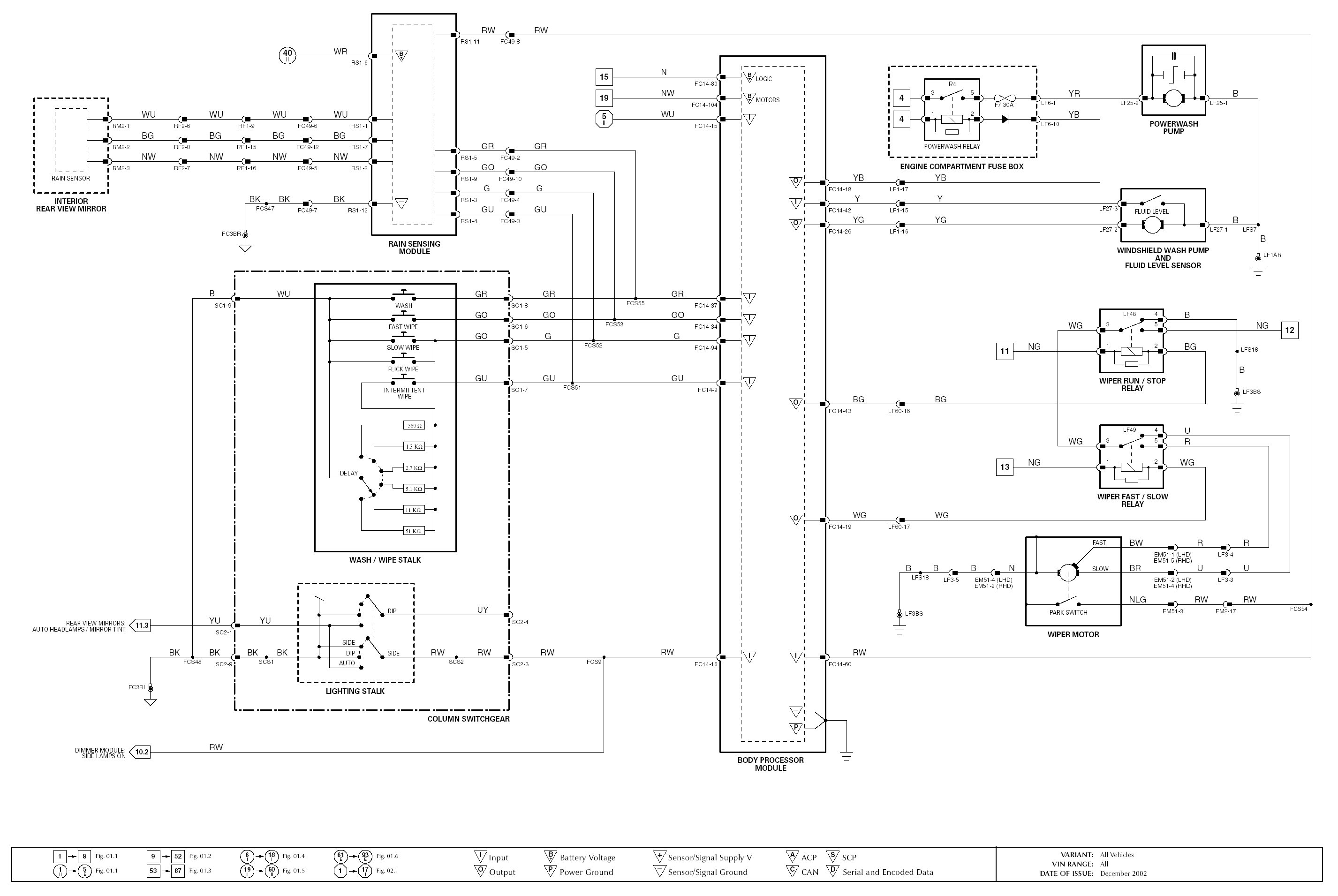

Diagram Figure 14.1:

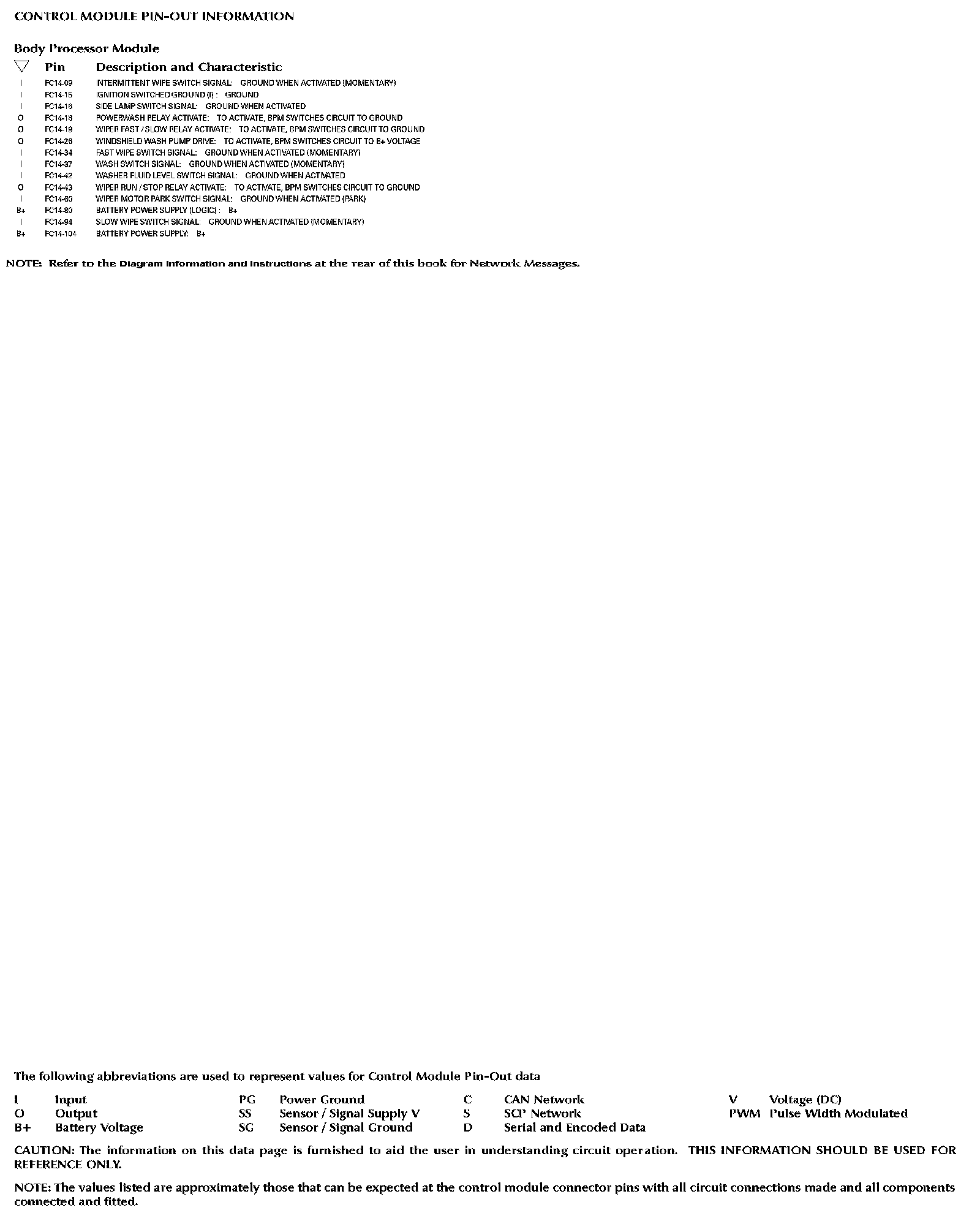

Diagram Data Sheet 14.1 (Part 1):

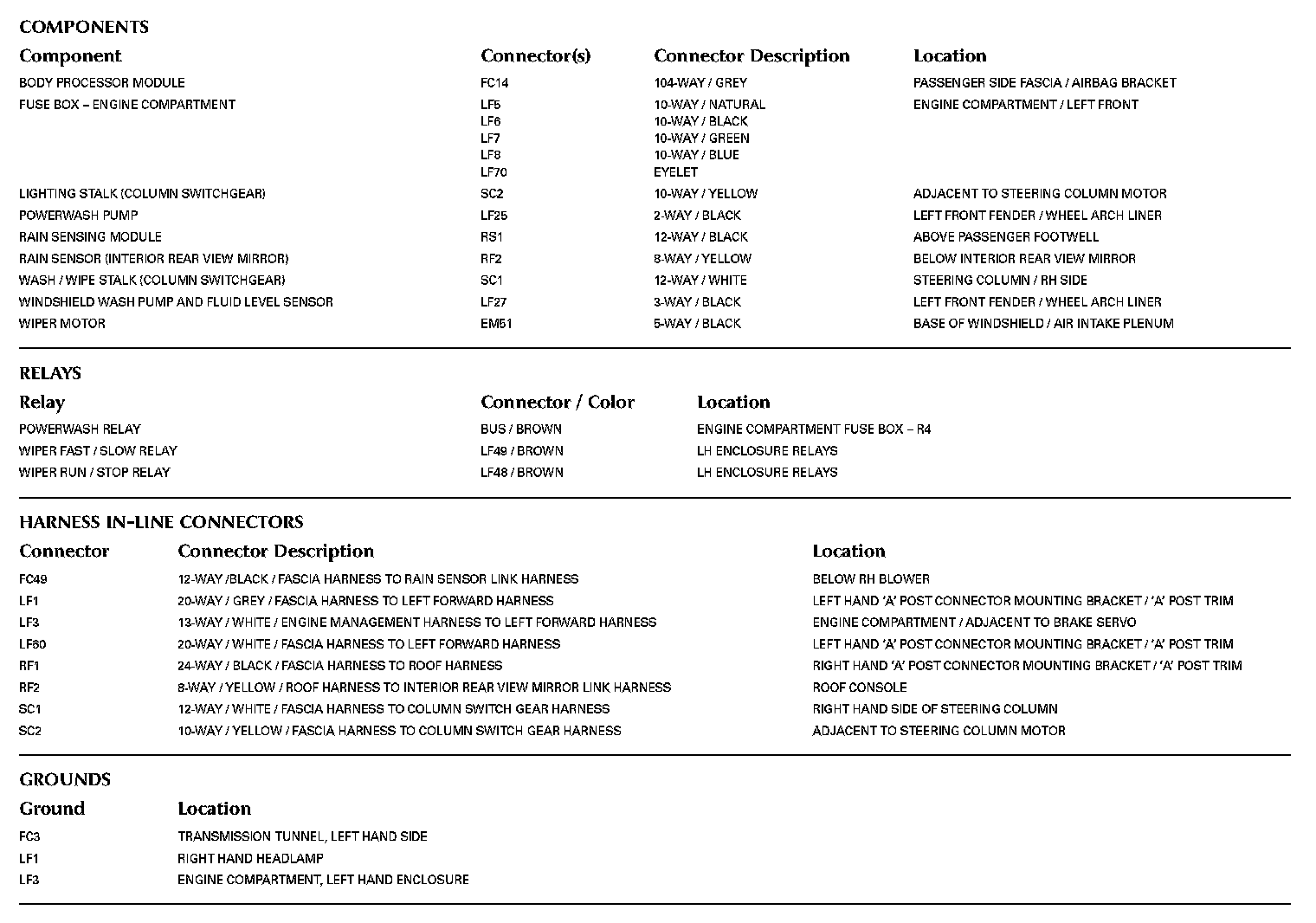

Diagram Data Sheet 14.1 (Part 2):
