Fig. 17.5(Navigation System With TV and VICS)
Fig. 17.5(Navigation System With TV and VICS)
Navigation System
with TV and VICS

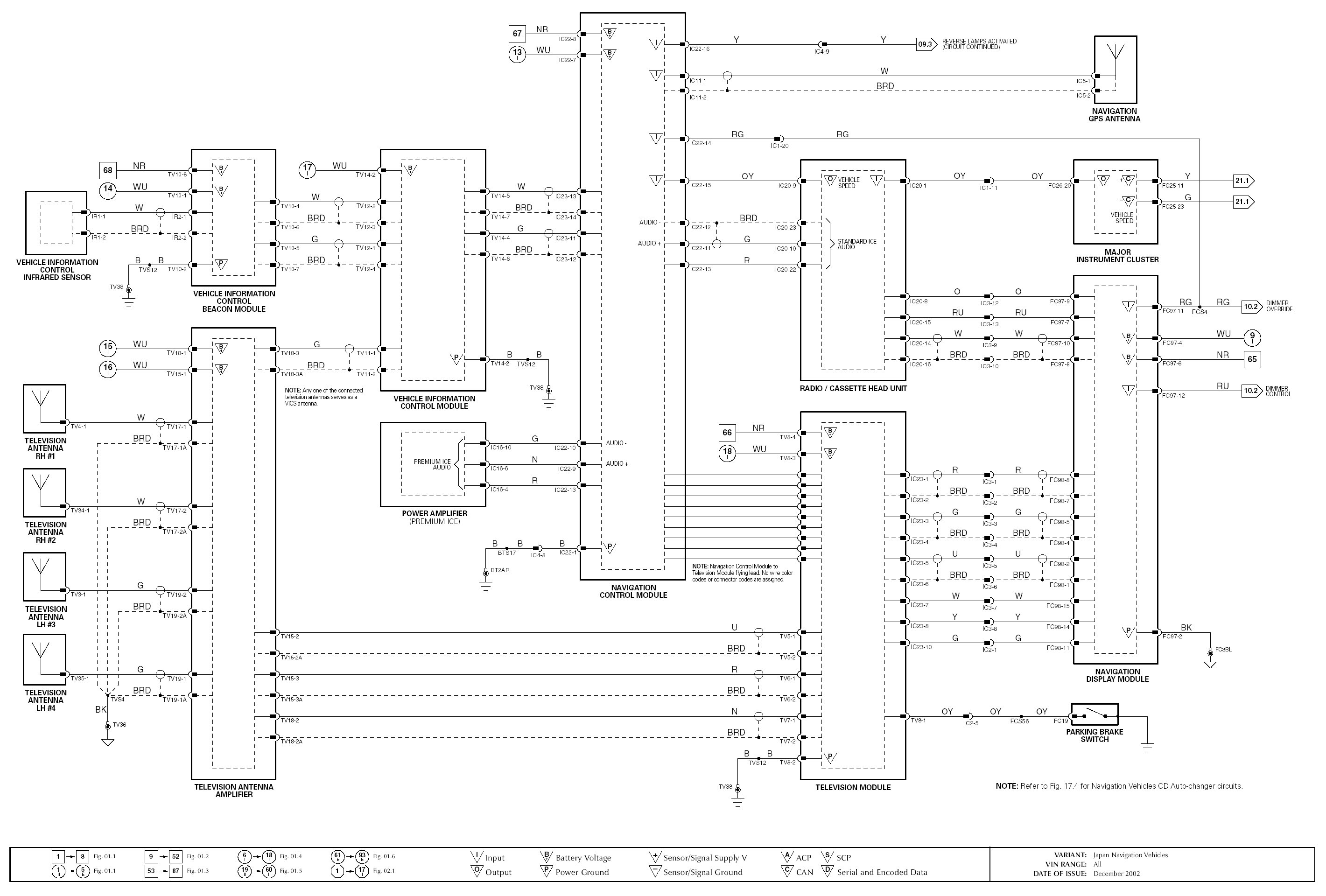

Diagram Figure 17.5:

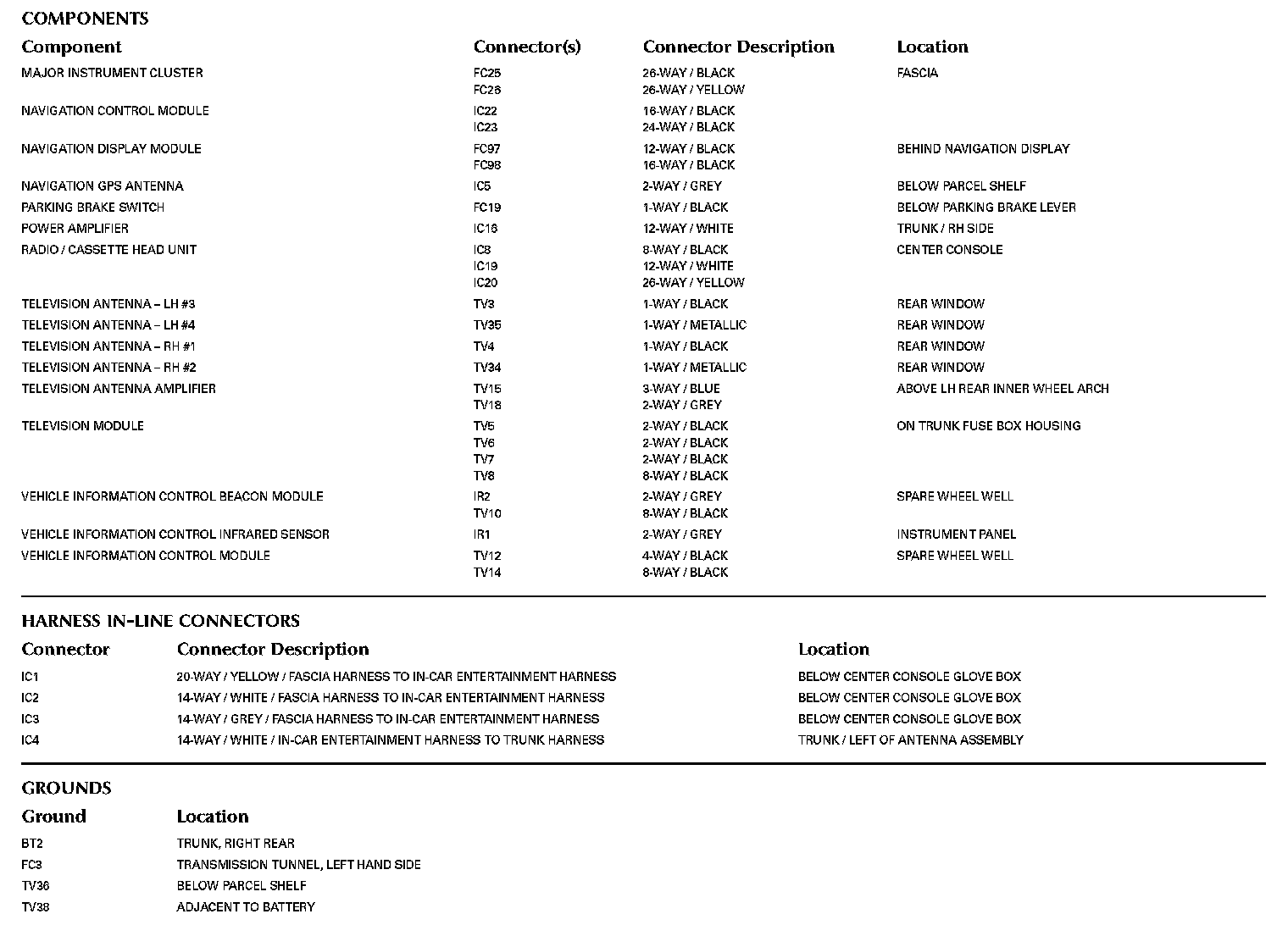

Diagram Data Sheet 17.5:
