Fig. 21.1(CAN (Network); SCP Network)



CAN (Network); SCP Network

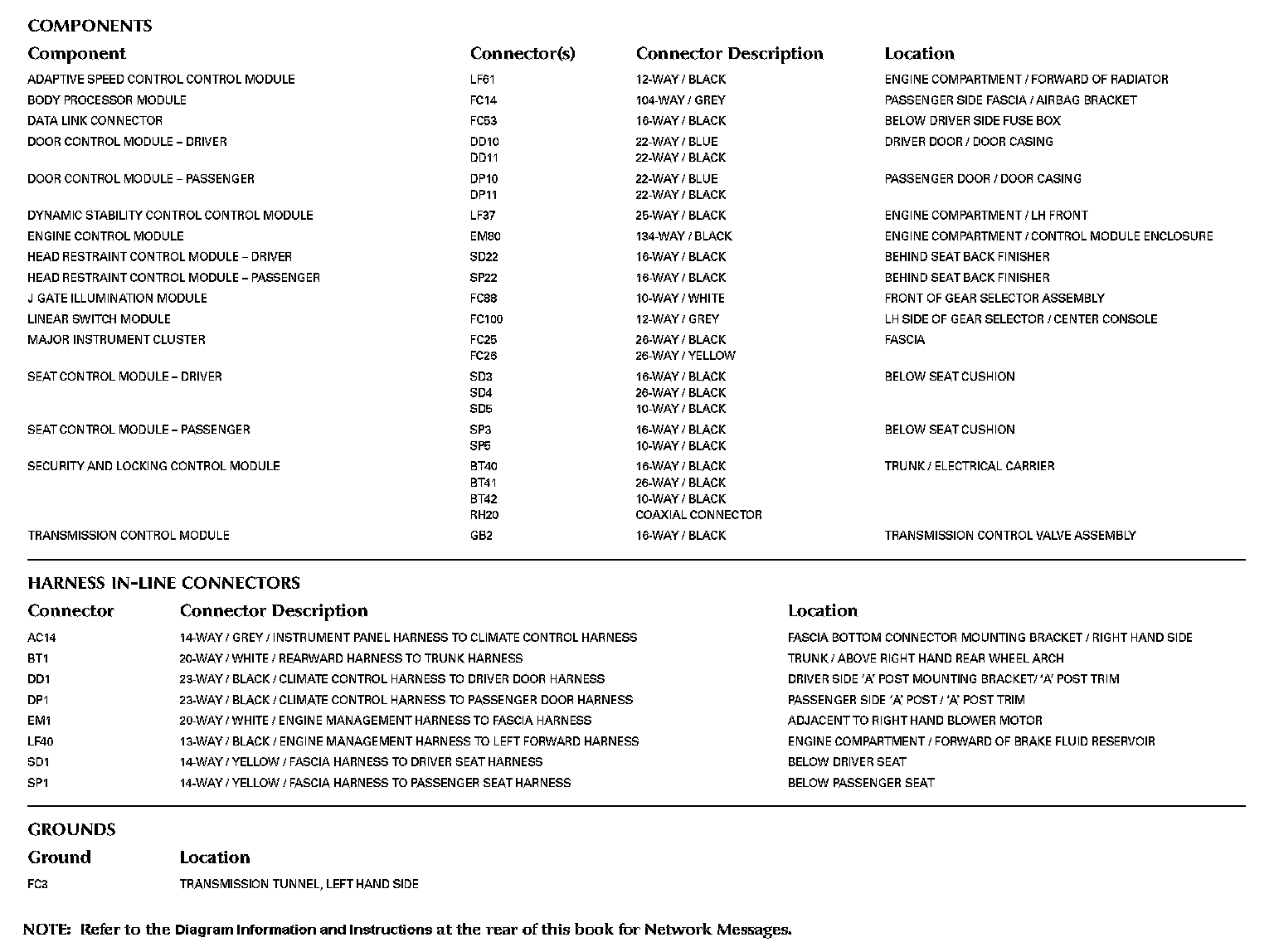

Diagram Figure 21.1:




Diagram Data Sheet 21.1:
