Blower Motor: Service and Repair

Blower Motor (82.25.66)

Removal
1. Disconnect the battery ground cable.
2. Remove the passenger side instrument panel closing panel.

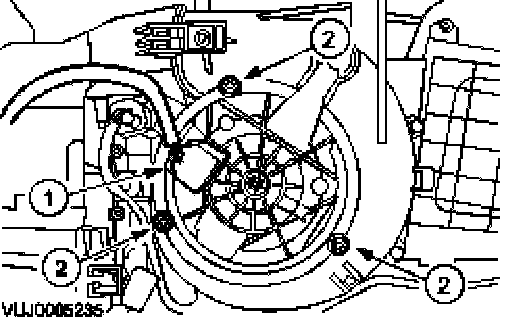

3. Remove the blower motor.
- Disconnect the electrical connector.
- Remove the blower motor.







Installation
1. To install, reverse the removal procedure.
