Instrument Cluster / Carrier: Locations



Instrument Panel Location

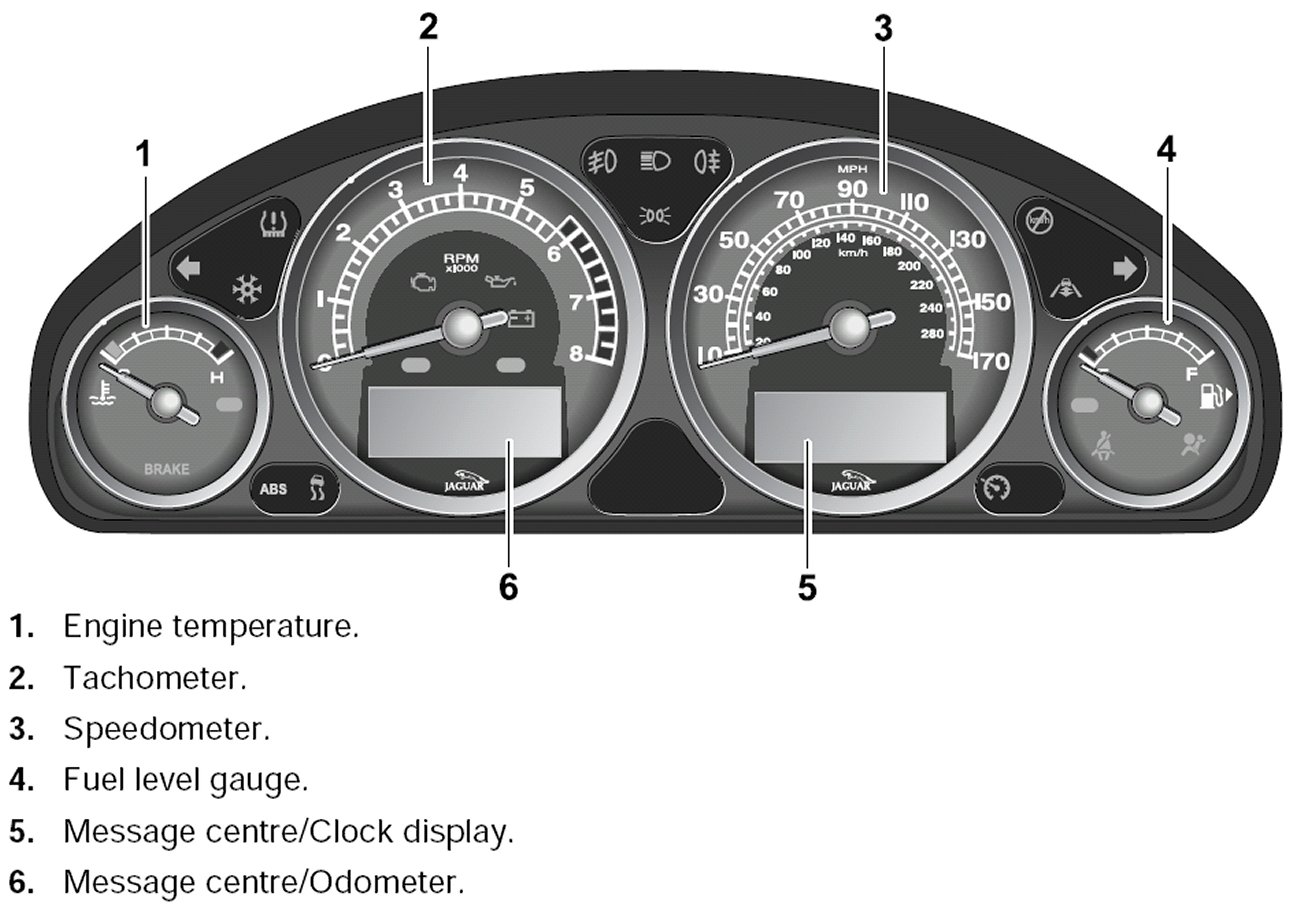

Instrument Panel Layout

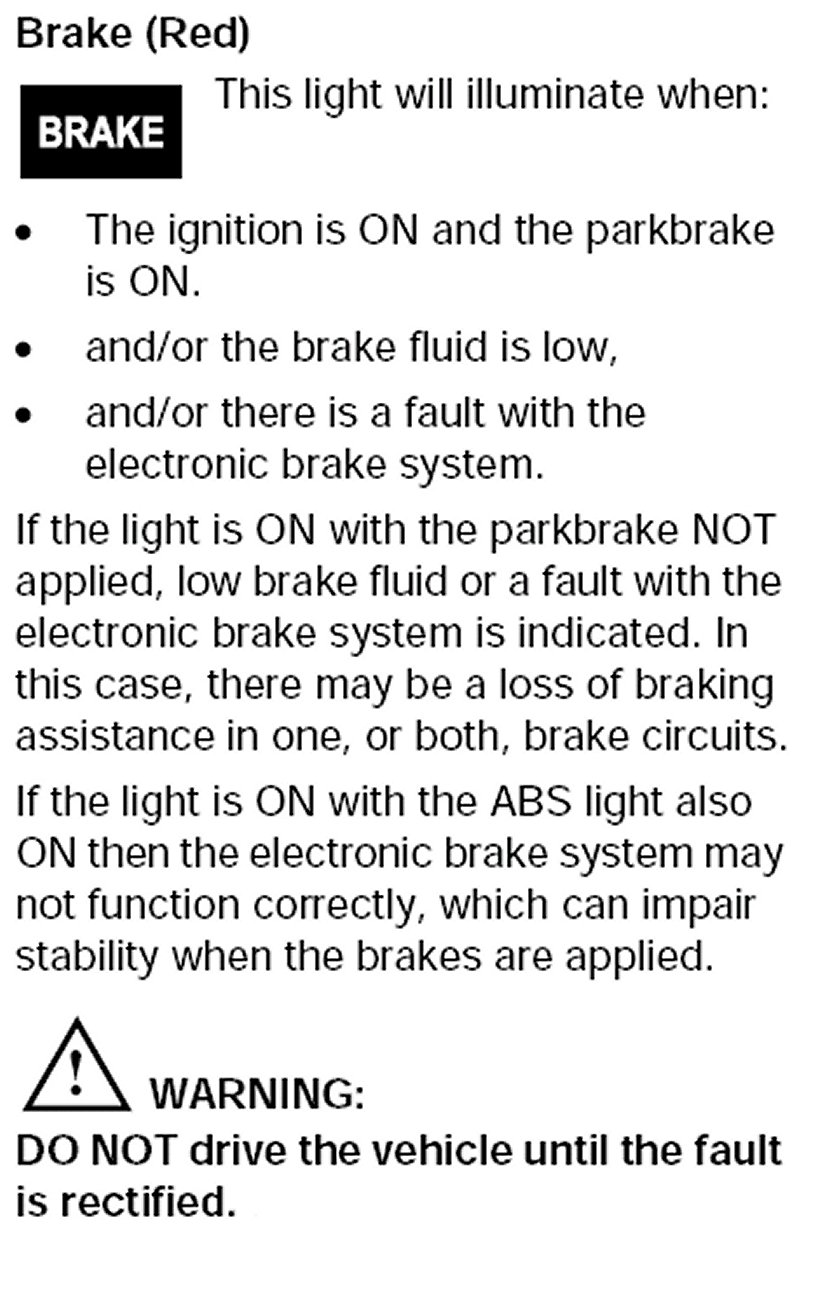

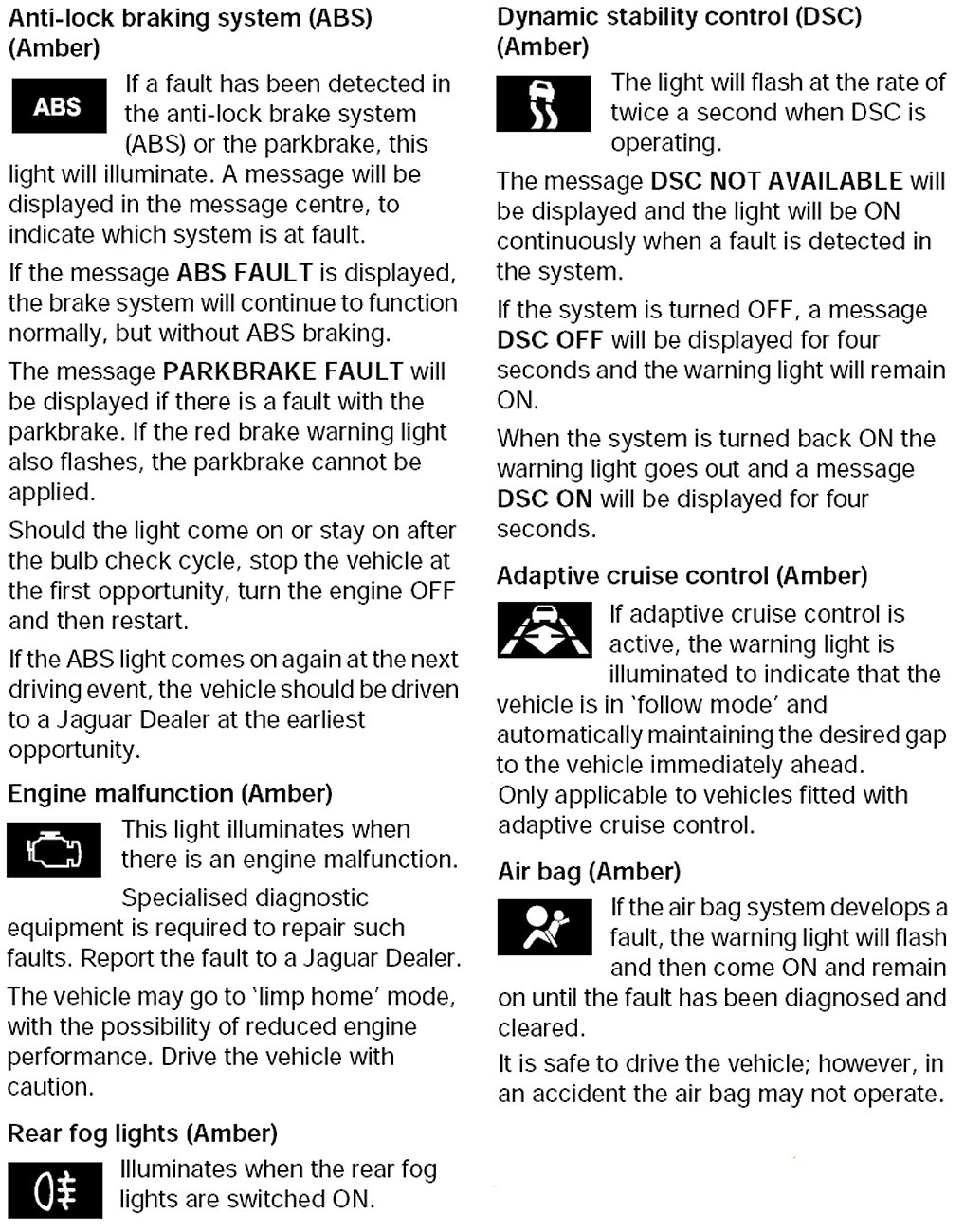

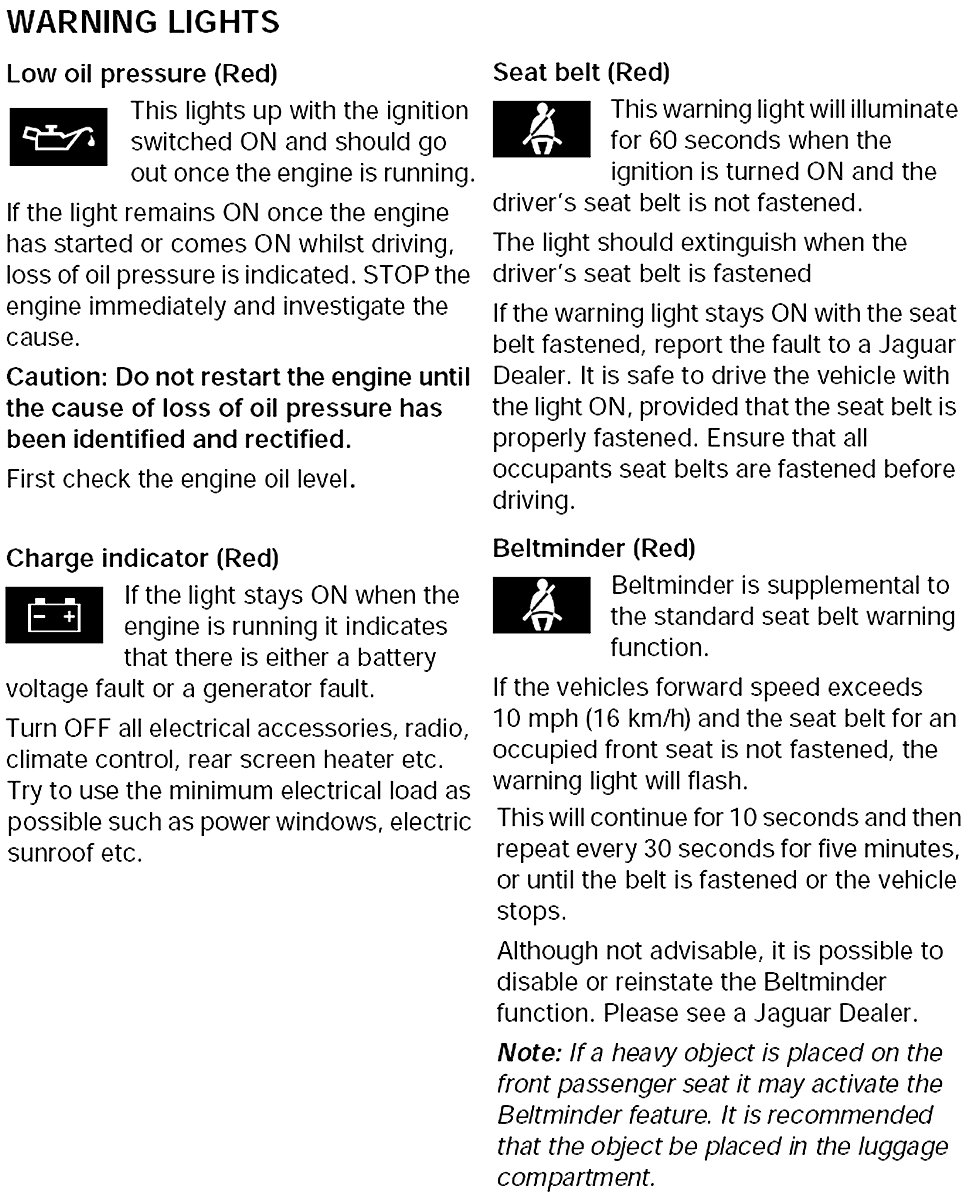

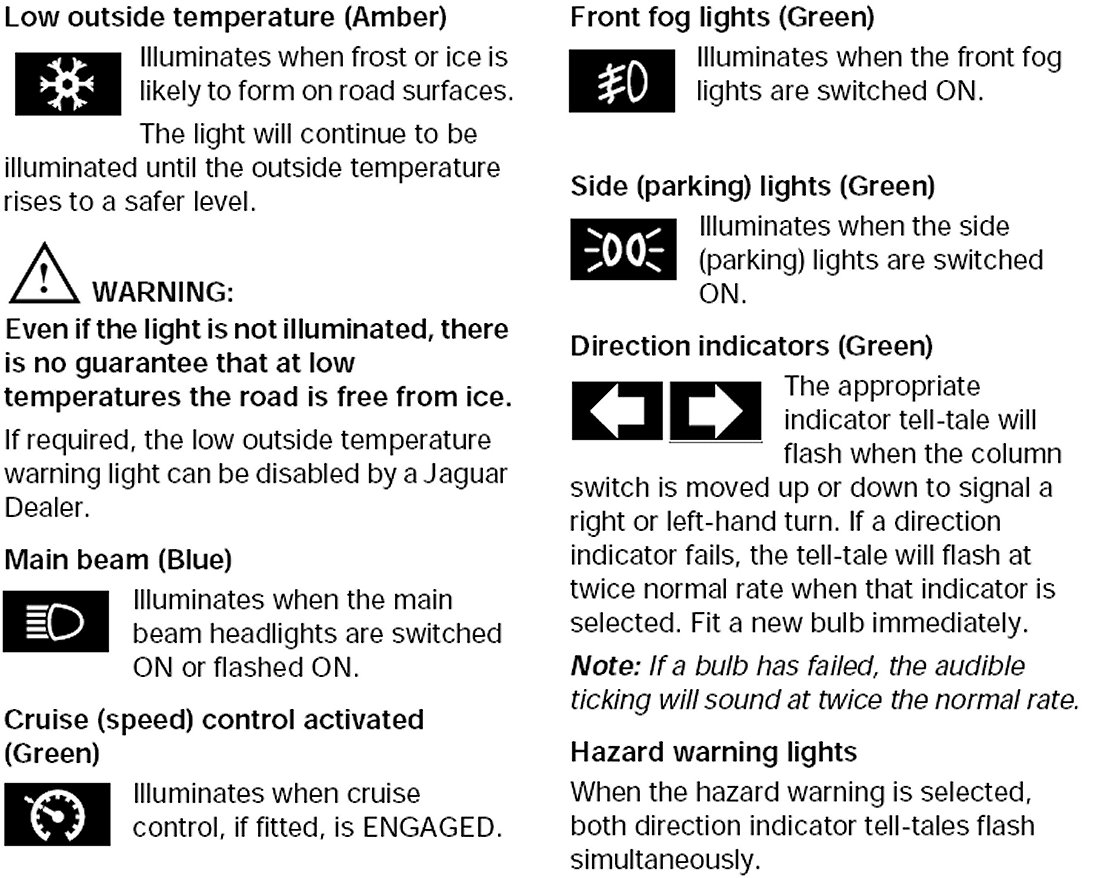

Warning Indicators
