Drive Belt: Service and Repair

Accessory Drive Belt 2.5L/3.0L
Removal
1. Disconnect the battery ground cable.
2. Remove the air deflector.

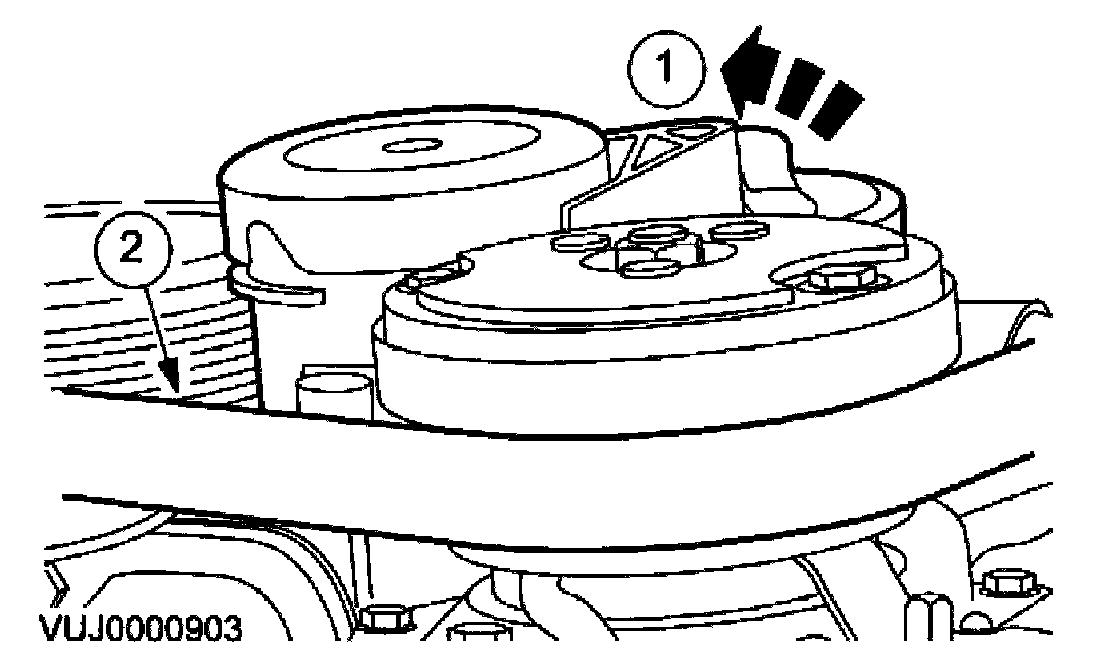

3. Remove the accessory drive belt.
1. Rotate the accessory drive belt tensioner counter-clockwise.
^ Use a 3/8 inch square drive bar to rotate the accessory drive belt tensioner.

2. Remove the accessory drive belt.

Installation
1. To install, reverse the removal procedure.
