A/T - Revised Gear Selector Lever Service Procedure

NUMBER: JTB00135
(ISSUE 1)

MODEL: S-TYPE

DATE: 25 NOV 2008

SECTION: 307

New Workshop Procedure - Remove / Install Automatic Transmission Selector Lever





AFFECTED VEHICLE RANGE

CONDITION SUMMARY:

Situation:

The Workshop Manual procedure to remove / install the automatic transmission selector lever has been revised. The new procedure no longer requires removal of the Electronic Park Brake switch.

Action:

In the event it becomes necessary to remove / install the automatic transmission selector lever, refer to the Repair Procedure outlined below.

PARTS:

No parts necessary

TOOLS:

Refer to the Workshop Manual (GTR) for any required special tools

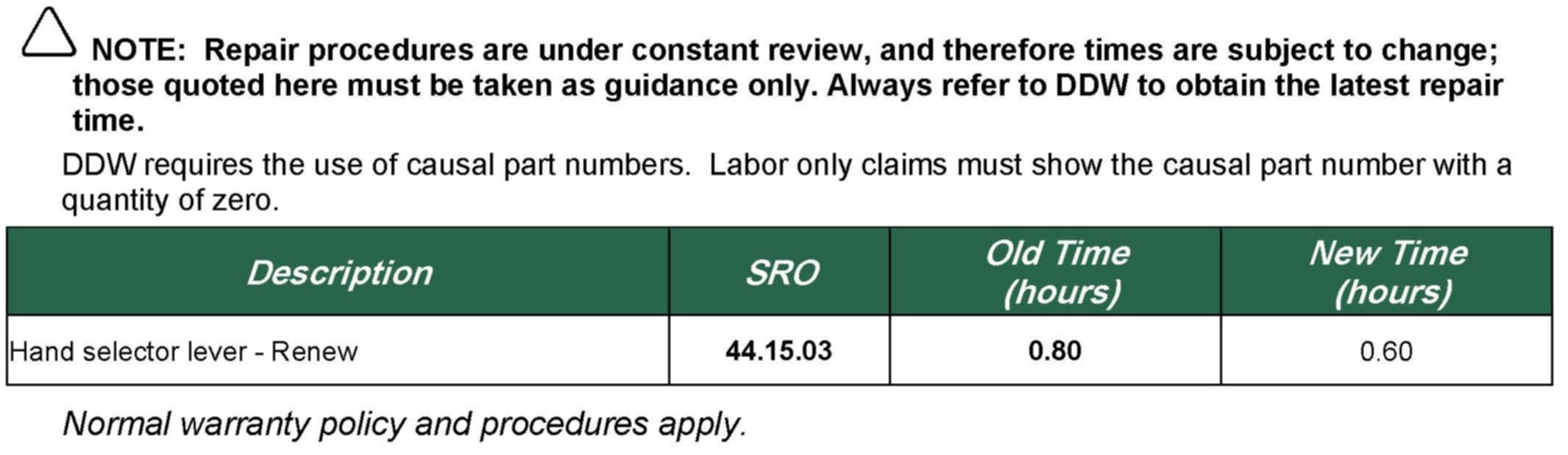

WARRANTY

REPAIR PROCEDURE

REMOVE / INSTALL AUTOMATIC TRANSMISSION SELECTOR LEVER

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows: GTR Home > NAS > X200-S-TYPE > Service Information > Model Year > Workshop Manual > 3: Powertrain > 307: Automatic Transmission / Transaxle > 307-05: Automatic Transmission / Transaxle External Controls

1. Refer to Workshop Manual (GTR) Section 307-05: Automatic Transmission / Transaxle External Controls to remove / install the transmission selector lever assembly.
