Brakes - Rear Brake Caliper Identification (Information Only)
JTB00247NAS129 MAR 2012
SECTION: 206
Rear Brake Caliper Identification

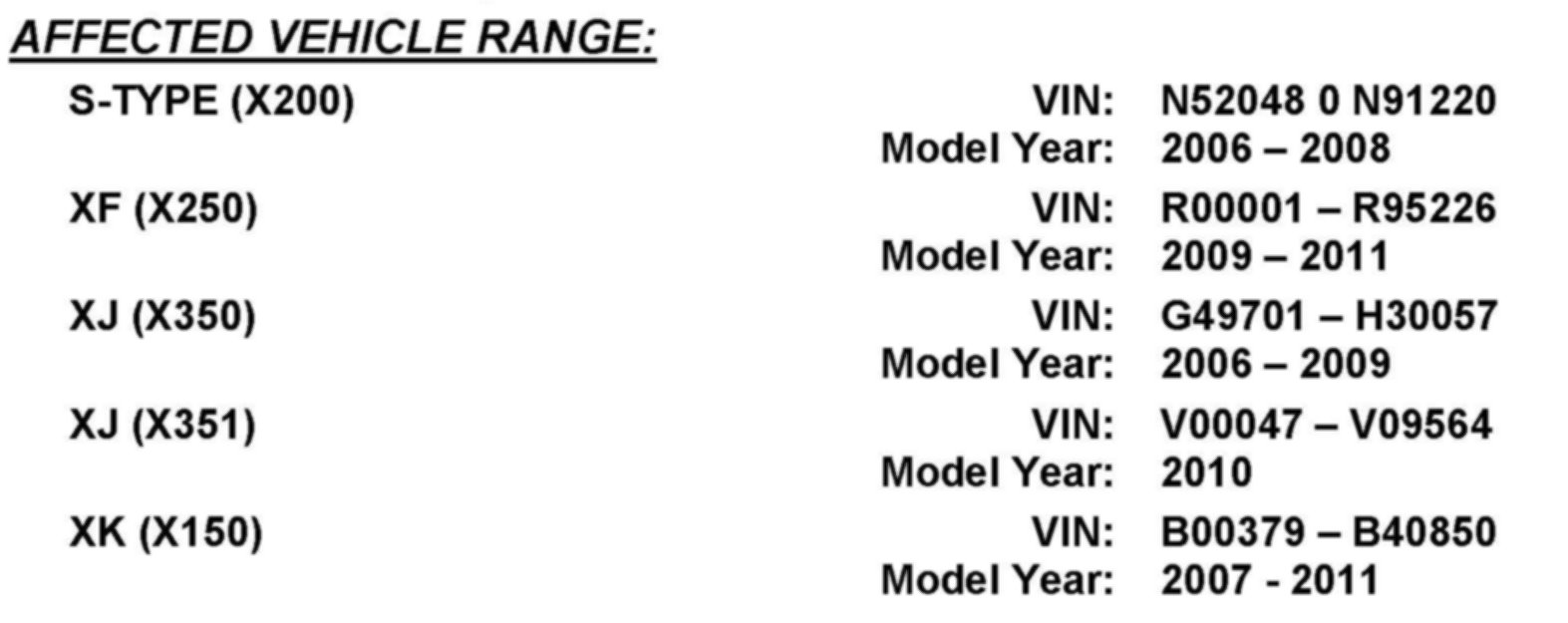

AFFECTED VEHICLE RANGE
CONDITION SUMMARY:
Situation:
For information only: to ensure correct replacement, the rear brake calipers are identified with a manufacturing code on the caliper.
Action:
In the event it becomes necessary to replace a rear brake caliper, refer to the Inspection Procedure below.
PARTS:
No parts necessary
TOOLS:
No special tools necessary
WARRANTY:
No Warranty information available
INSPECTION PROCEDURE
NOTE:
Please refer to EPC for the correct part numbers required for each vehicle variant.
NOTE:
EPC will display the superseded part numbers.
NOTE:
This bulletin is only for the rear brake calipers and for the vehicles between the specified VINs above.
1. Before ordering or replacing a rear brake caliper, carefully check the vehicle's current rear brake calipers for the presence of a manufacturing code.
^ If the vehicle's rear brake calipers have no manufacturing code, both rear brake calipers must be replaced.
^ If the vehicle has only one rear brake caliper with a manufacturing code, only the rear brake caliper with no marking needs to be replaced.
