Interior - Back Glass Blind Component Availability

NUMBER JTB00114
(ISSUE 2)

MODEL S-TYPE, XJ

DATE 30 JUNE 2009

ISSUE '2' CHANGES ARE HIGHLIGHTED WITH GRAY BACKGROUND

SECTION: 501

Rear Windshield Blind Motor / Arm Mechanism - Lower Level Service Part Availability

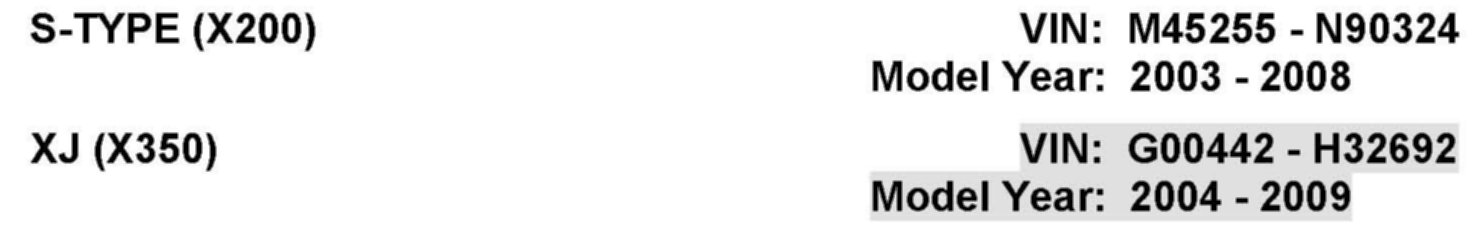

AFFECTED VEHICLE RANGE

CONDITION SUMMARY:

Situation:

The rear windshield blind motor and arm mechanism are now available as separate serviceable parts. In the event of one of the following conditions, replacement of the complete rear windshield blind assembly is no longer necessary:

^ Rear windshield blind motor failure

^ Rear windshield blind arm mechanism failure

Action:

In the event of a customer concern of one of the above conditions, follow the Repair Procedure outlined below to replace the rear windshield blind motor or arm mechanism.





PARTS

TOOLS:

Refer to Workshop Manual (GTR) for any special tools (if required)





WARRANTY:

NOTE:
Repair procedures are under constant review, and therefore times are subject to change; those quoted here must be taken as guidance only. Always refer to DDW to obtain the latest repair time.

DDW requires the use of causal part numbers. Labor only claims must show the causal part number with a quantity of zero.

REPAIR PROCEDURE:

REPLACE REAR WINDSHIELD BLIND MOTORS

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows: GTR Home > NAS > Model > Service Information > Model Year > Workshop Manual > 5: Body and Paint > 501: Body and Paint > 501-05: Interior Trim and Ornamentation

1. Refer to Workshop Manual (GTR) Section 501-05: Interior Trim and Ornamentation to replace the affected rear windshield blind motors.

REPLACE REAR WINDSHIELD BLIND ARM MECHANISM

NOTE:
Global Technical Reference (GTR) lookup sequence is as follows: GTR Home > NAS > Model > Service Information > Model Year > Workshop Manual > 5: Body and Paint > 501: Body and Paint > 501-05: Interior Trim and Ornamentation

1. Refer to Workshop Manual (GTR) Section 501-05: Interior Trim and Ornamentation to replace the affected rear windshield blind arm mechanism.
