Headlamp Washer Pump: Service and Repair

Headlamp Washer Pump

Removal







1. Remove the radiator splash shield.

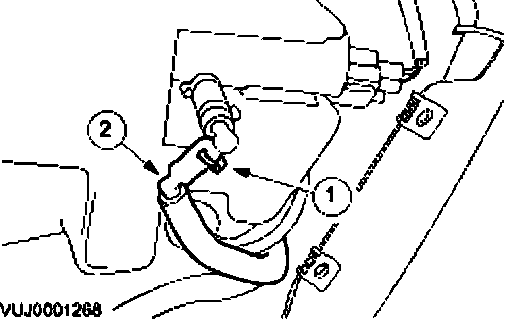

2. Disconnect the headlamp washer pump supply hose.
- Remove the headlamp washer supply hose retaining clip.
- Disconnect the headlamp washer pump supply hose.







3. Disconnect the headlamp washer pump electrical connector.







4. Remove the headlamp washer pump.




Installation
1. To install, reverse the removal procedure.
