Fig. 07.1 (Instrument Cluster)
Fig. 07.1 (Instrument Cluster)

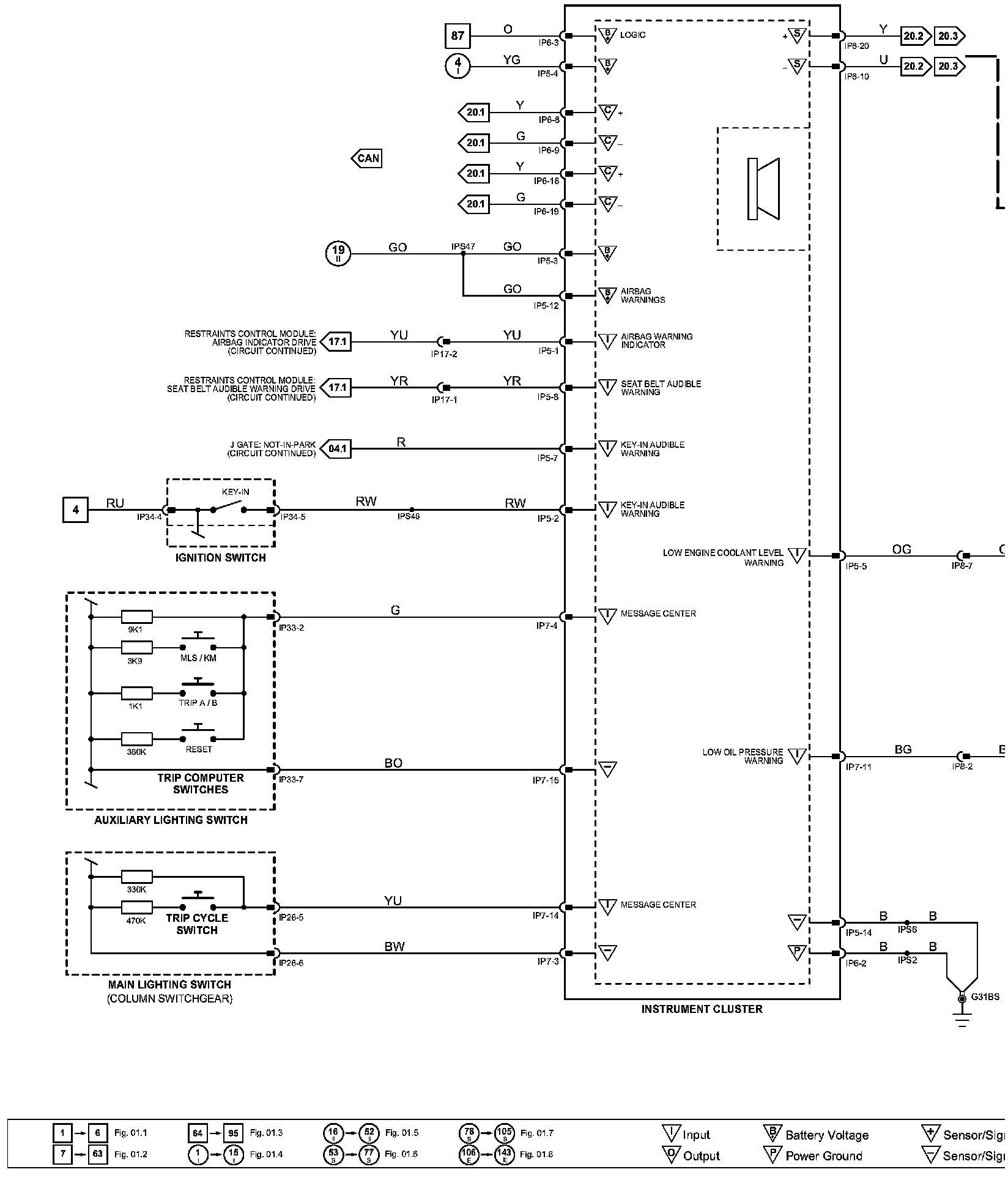

���PDiagram Figure 07.1:
Diagram Data Sheet 07.1 (Part-1):
Diagram Data Sheet 07.1 (Part-2):
